Bracket 863755

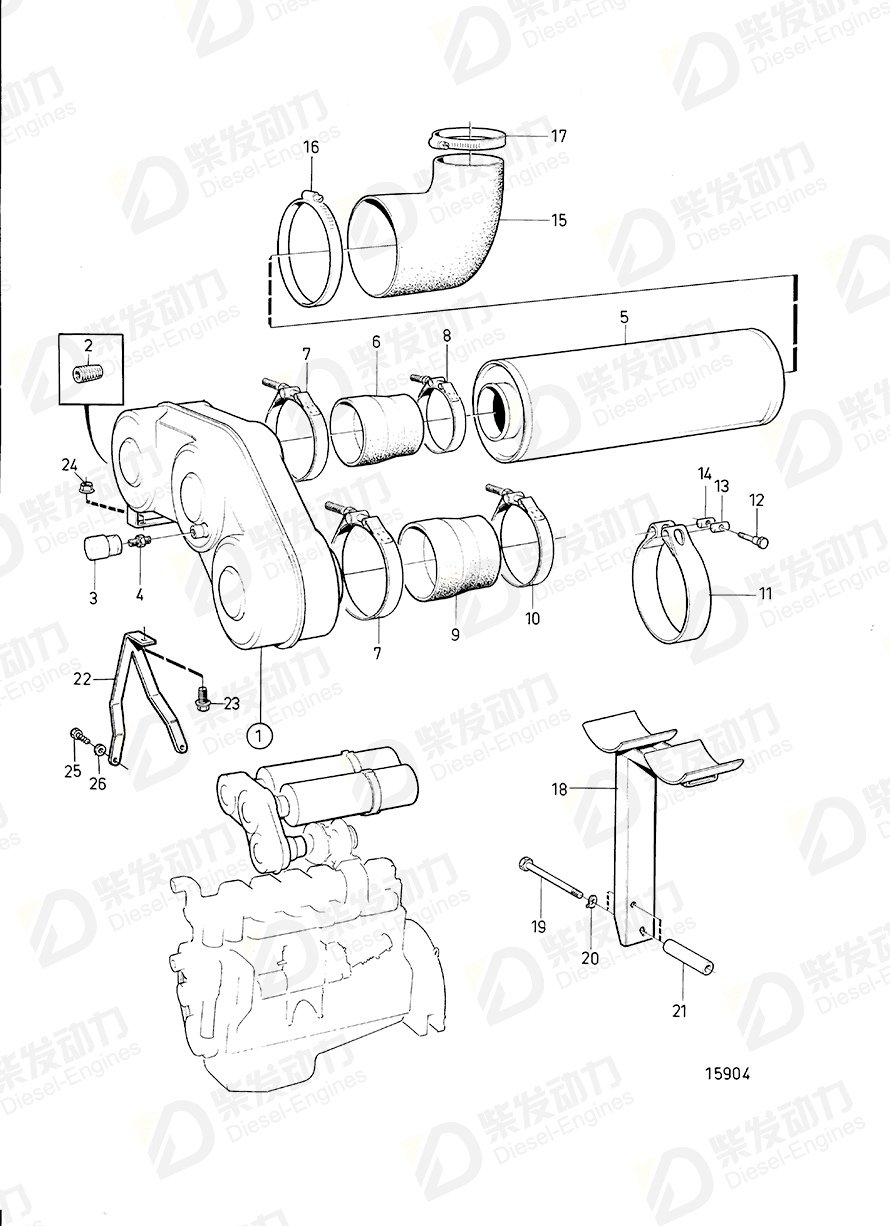

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 845218 | 1 | |
| 1 | Connecting pipe | 848358 | 1 | (845218) |
| 1 | Connecting pipe | 3825096 | 1 | REPL BY 3825971 |
| 1 | Connecting pipe | 3825971 | 1 | |
| 2 | Plug | 479977 | 1 | |
| 3 | Pressure drop indica | 842037 | 1 | |
| 4 | Nipple | 191095 | 1 | |
| 5 | Air filter | 3825778 | 2 | |
| 6 | Rubber fitting | 836334 | 2 | For 804961., D=105mm-113mm |
| 7 | Hose clamp | 1544734 | 4 | |
| 8 | Hose clamp | 1544733 | 4 | |
| 9 | Rubber fitting | 847685 | 1 | |
| 10 | Hose clamp | 1544735 | 1 | |
| 11 | Tensioning band | 821028 | 2 | |
| 12 | Hexagon screw | 31406 | 2 | |
| 13 | Pin | 31405 | 2 | |
| 14 | Clevis pin, threaded | 31404 | 2 | |
| 15 | Manifold | 864291 | 2 | For air intake from outside the engine room. |
| 16 | Hose clamp | 944307 | 2 | D70B spec. 867221., Alt |
| 17 | Hose clamp | 961678 | 2 | D70B spec. 867221., Alt |
| 18 | Bracket | 849274 | 1 | |
| 19 | Hexagon screw | 959794 | 2 | |
| 20 | Washer | 976944 | 2 | |
| 21 | Spacer sleeve | 863784 | 2 | |
| 22 | Bracket | 863755 | 1 | |
| 23 | Flange screw | 946173 | 1 | |
| 24 | Flange lock nut | 948645 | 1 | |
| 25 | Hexagon screw | 955527 | 2 | |
| 26 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 22 | Bracket 863755 | 863755 |
| Details | |
| Engine model | TAD1231GE TD120HP-86, TD121GG-86 TD1210G TD121G-87 TD121GP-87, TD1210G |
| Application | Air Filter Air Filter and Installation Components Air Filter, High Location |
| Specification | |
| Descriptions | (849291) |
