Bracket 865220

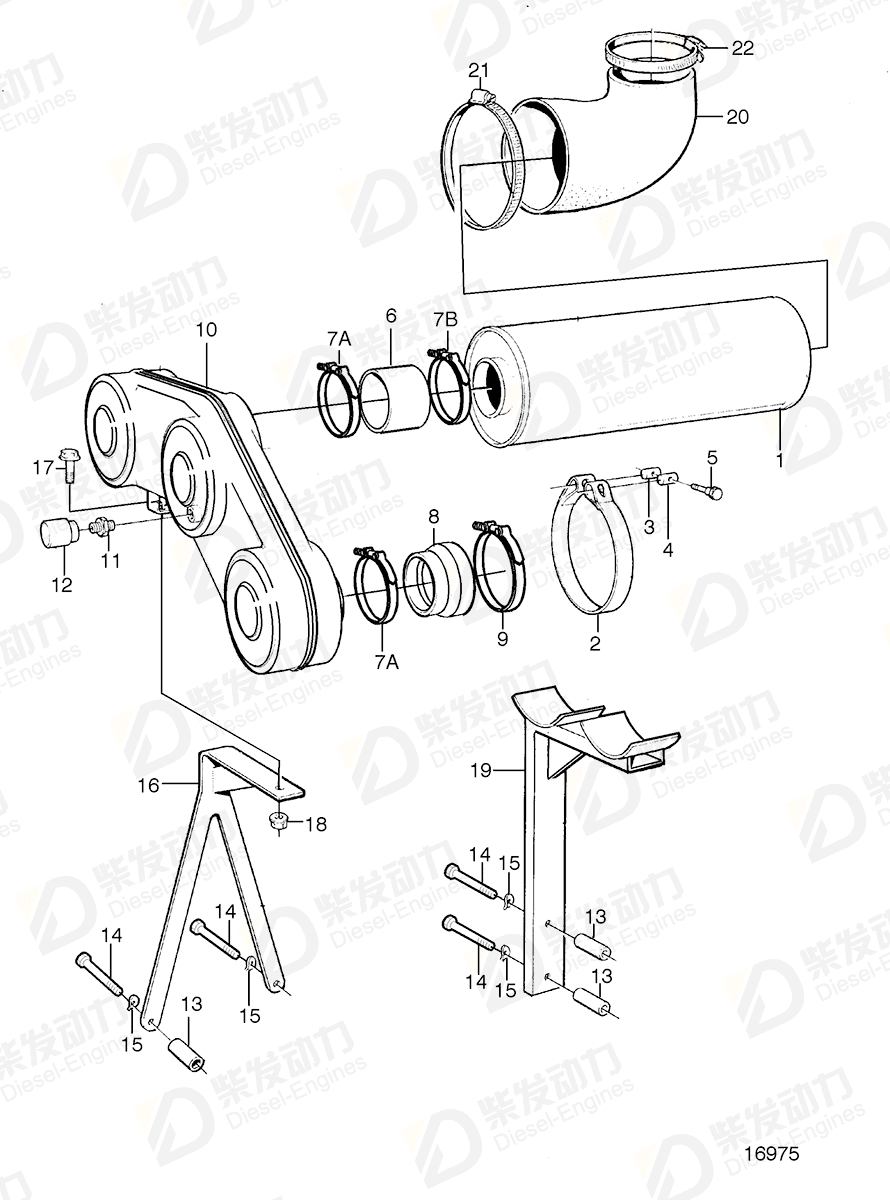

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 3826215 | 2 | |
| 2 | Tensioning band | 848922 | 2 | |
| 3 | Clevis pin, threaded | 31404 | 2 | |
| 4 | Pin | 31405 | 2 | |
| 5 | Hexagon screw | 31406 | 2 | |
| 6 | Rubber collar | 865154 | 2 | |
| 8 | Rubber collar | 865801 | 1 | |
| 9 | Hose clamp | 1674223 | 1 | |
| 10 | Connecting pipe | 3825972 | 1 | |
| 11 | Nipple | 191095 | 1 | |
| 12 | Pressure drop indica | 842037 | 1 | |
| 13 | Spacer sleeve | 858392 | 3 | L=59mm |
| 14 | Flange screw | 984749 | 4 | |
| 15 | Spring washer | 941907 | 4 | |
| 16 | Bracket | 865220 | 1 | |
| 17 | Flange screw | 984734 | 1 | |
| 18 | Flange lock nut | 990950 | 1 | |
| 19 | Bracket | 3825608 | 1 | |
| 20 | Manifold | 865197 | 1 | For air intake from outside the engine room |
| 21 | Hose clamp | 979654 | 1 | |
| 22 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| 7A | Hose clamp | 1544734 | 5 | |
| 7B | Hose clamp | 1660378 | 4 |
| Item | Part Name | Part No. |
| 16 | Bracket 865220 | 865220 |
| Details | |
| Engine model | TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P |
| Application | Air Filter Air Filter,SN-2160046678 |
