Bracket 865542

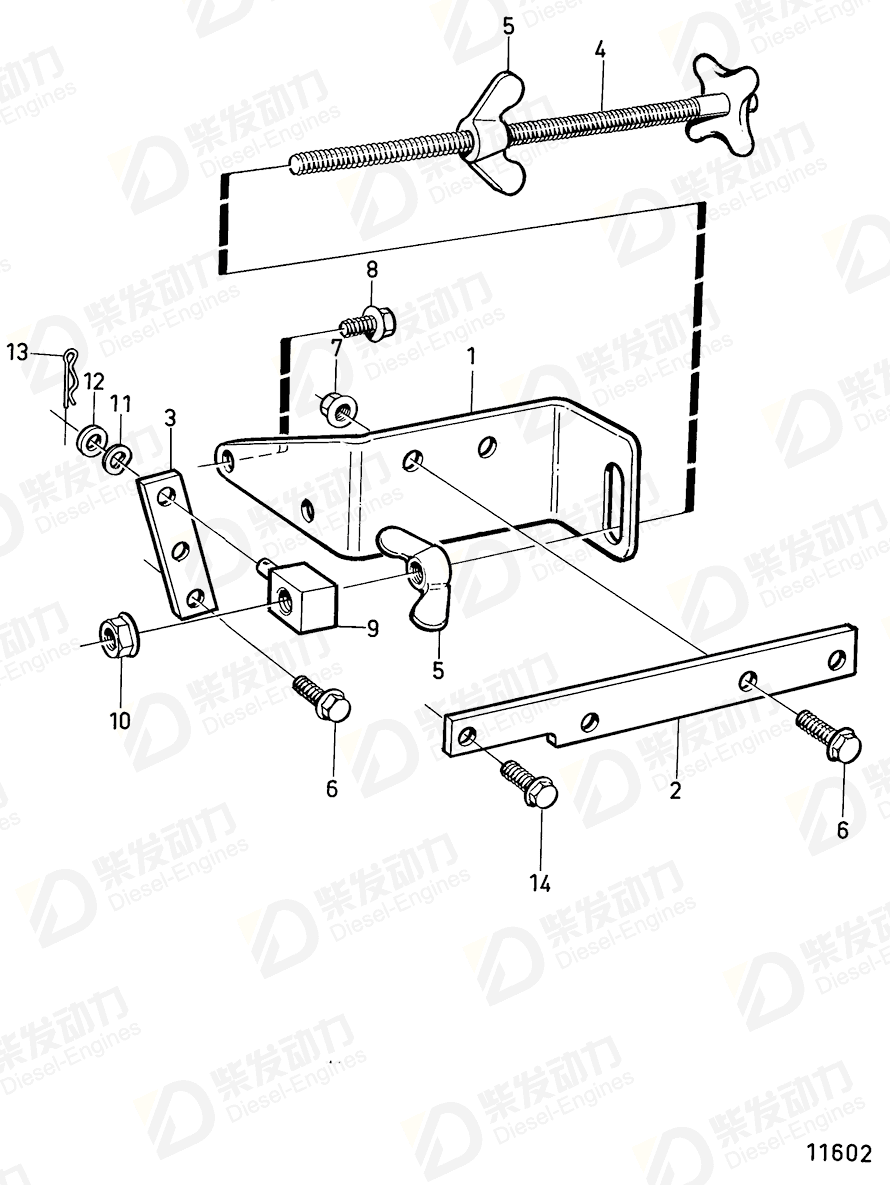

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 865542 | 1 | |
| 3 | Lever | 865959 | 1 | |
| 4 | Wing screw | 862775 | 1 | |
| 5 | Wing nut | 192354 | 2 | |
| 6 | Flange screw | 946544 | 4 | For THD102KB and THD102KD. |
| 7 | Flange nut | 945407 | 2 | For THD102KB and THD102KD. |
| 8 | Flange screw | 967949 | 2 | |
| 9 | Cube | 848236 | 1 | |
| 10 | Lock nut | 963106 | 1 | |
| 11 | Spring washer | 949607 | 1 | |
| 12 | Washer | 955892 | 1 | |
| 13 | Split pin | 664822 | 1 | |
| 14 | Flange screw | 945414 | 2 |
| Item | Part Name | Part No. |
| 1 | Bracket 865542 | 865542 |
| Details | |
| Engine model | TD730ME TWD730ME, TWD731ME |
| Application | Manual Speed Control: A Manual Speed Control: B |
