Bracket 865592

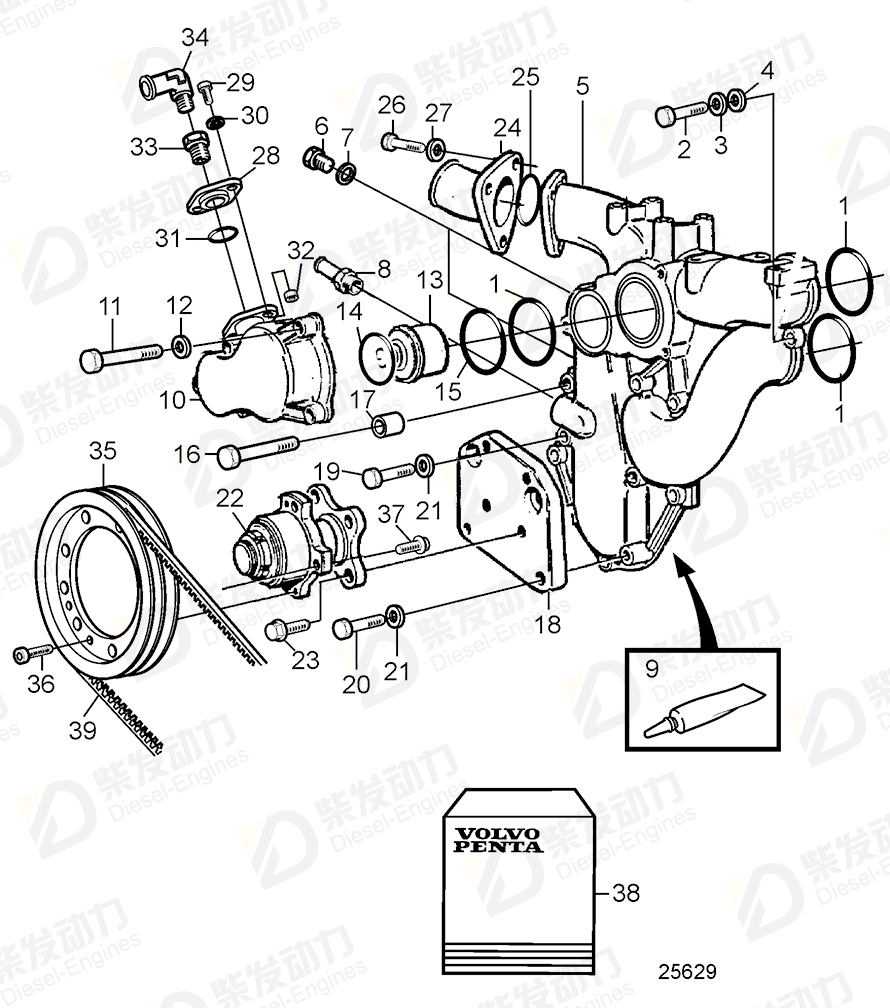

| No. | Part Name | Part Number | Qty | Description |
| 1 | O-ring | 1664473 | 3 | (925254) |
| 2 | Hexagon screw | 955535 | 1 | |
| 3 | Washer | 940097 | 1 | |
| 4 | Spring washer | 942336 | 1 | |
| 5 | Thermostat housing | 8194543 | 1 | |
| 6 | Plug | 960632 | 2 | |
| 7 | Gasket | 11998 | 2 | |
| 8 | Nipple, water pump | 479974 | 1 | (942691) |
| 9 | Gasket | 423351 | 1 | |
| 9 | Sealant | 1161231 | 1 | 304ml |
| 9 | Sealant | 1161277 | 1 | 20g |
| 10 | Cover | 422730 | 1 | |
| 11 | Hexagon screw | 940186 | 5 | |
| 12 | Spring washer | 941907 | 5 | |
| 13 | Thermostat | 8149186 | 1 | 86°C |
| 14 | Sealing ring | 1544410 | 1 | |
| 15 | Sealing ring | 1544710 | 1 | |
| 16 | Hexagon screw | 940156 | 1 | |
| 16 | Hexagon screw | 955537 | 6 | |
| 17 | Spacer sleeve | 820916 | 1 | MO 21083/XXXXX- |
| 18 | Bracket | 865592 | 1 | |
| 19 | Hexagon screw | 955544 | 2 | |
| 20 | Hexagon screw | 955537 | 2 | |
| 21 | Spring washer | 942336 | 4 | |
| 22 | Fan hub | 1675786 | 1 | |
| 23 | Flange screw | 965185 | 4 | |
| 24 | Connecting pipe | 11031792 | 1 | |
| 25 | O-ring | 975675 | 1 | |
| 26 | Hexagon screw | 955525 | 3 | |
| 27 | Spring washer | 941907 | 3 | |
| 28 | Flange | 843908 | 1 | |
| 29 | Hexagon screw | 940135 | 2 | |
| 30 | Spring washer | 941907 | 2 | |
| 31 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 32 | Hexagon nut | 955826 | 2 | |
| 33 | Nipple | 479954 | 1 | (190130) |
| 34 | Hose nipple, air venting | 947681 | 1 | (942758) |
| 35 | Pulley | 1675847 | 1 | |
| 36 | Six point socket scr | 969407 | 2 | |
| 37 | Flange screw | 947760 | 4 | M8x40mm |
| 38 | Repair kit, water pump | 276936 | 1 | |
| 39 | V-belt | 978777 | 1 |
| Item | Part Name | Part No. |
| 18 | Bracket 865592 | 865592 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V, TWD1031VE |
| Application | Thermostat Housing Water Pump, Thermostat and Fan Bearing |
