Breather pipe 20513339
Breather pipe 20513339
- Brandsvolvo penta
- Part No.: 20513339
- Availability: 联系我们

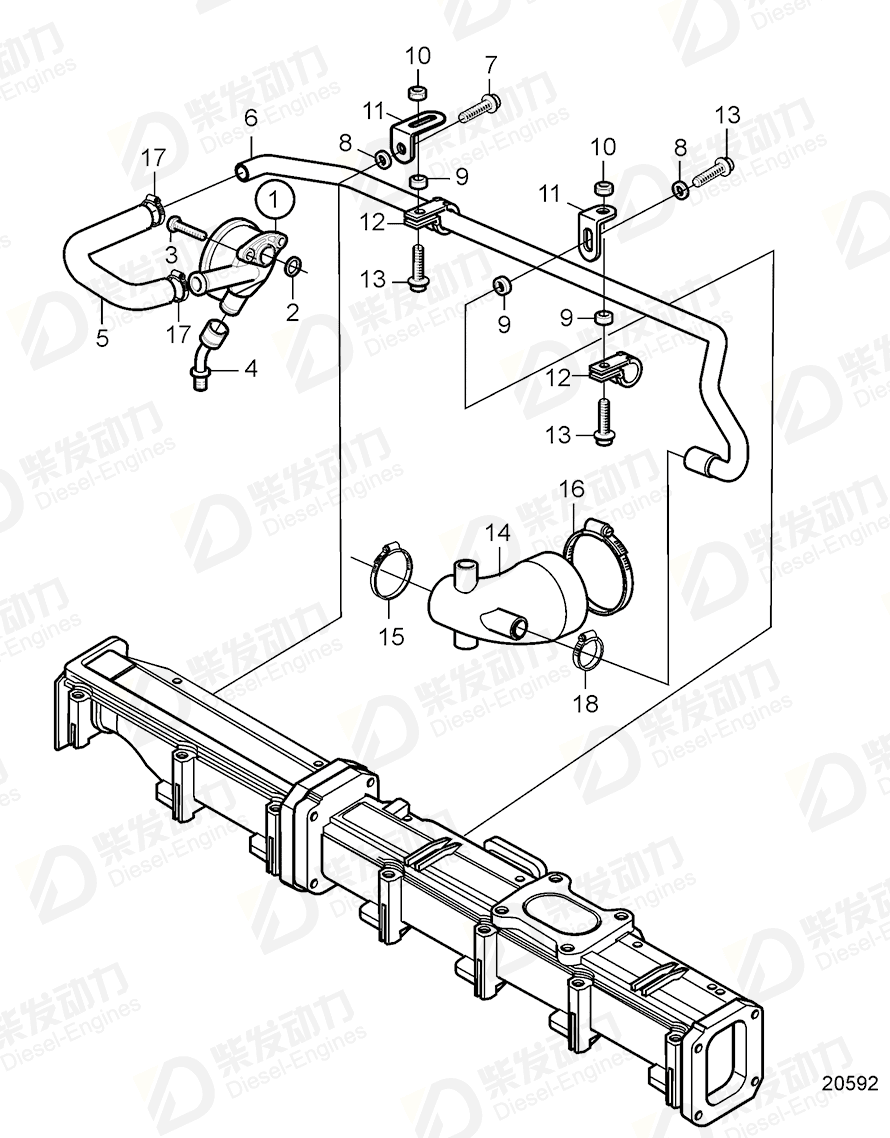

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Oil separator |
20412322 |
1 |
|
| 2 |
Gasket |
20405943 |
1 |
|
| 3 |
Flange screw |
20450728 |
1 |
|
| 4 |
Connector |
20405938 |
1 |
|
| 5 |
Hose |
20405629 |
1 |
|
| 6 |
Breather pipe |
20513339 |
1 |
|
| 7 |
Flange screw |
984734 |
1 |
|
| 8 |
Washer |
20405802 |
2 |
|
| 9 |
Bushing |
20450730 |
3 |
|
| 10 |
Flange nut |
990940 |
2 |
|
| 11 |
Bracket |
20450726 |
2 |
|
| 12 |
Clamp |
20405532 |
2 |
|
| 13 |
Flange screw |
984734 |
2 |
|
| 14 |
Pipe |
20513393 |
1 |
Replaced by 20801694 |
| 14 |
Manifold |
20801694 |
1 |
|
| 15 |
Clip |
21019685 |
1 |
|
| 16 |
Hose clamp |
20450715 |
1 |
|
| 17 |
Hose clamp |
20405755 |
2 |
|
| 18 |
Hose clamp |
20513342 |
1 |
|
| Item |
Part Name |
Part No. |
| 6 |
Breather pipe 20513339 |
20513339 |
| Details |
| Engine model |
TAD720VE, TAD721VE, TAD722VE |
| Application |
Crankcase Ventilation. Low Mounted Turbo. Stage 2, Tier 2. Not Turnable Pipe Elbow. (35°) |
