Breather pipe 848497

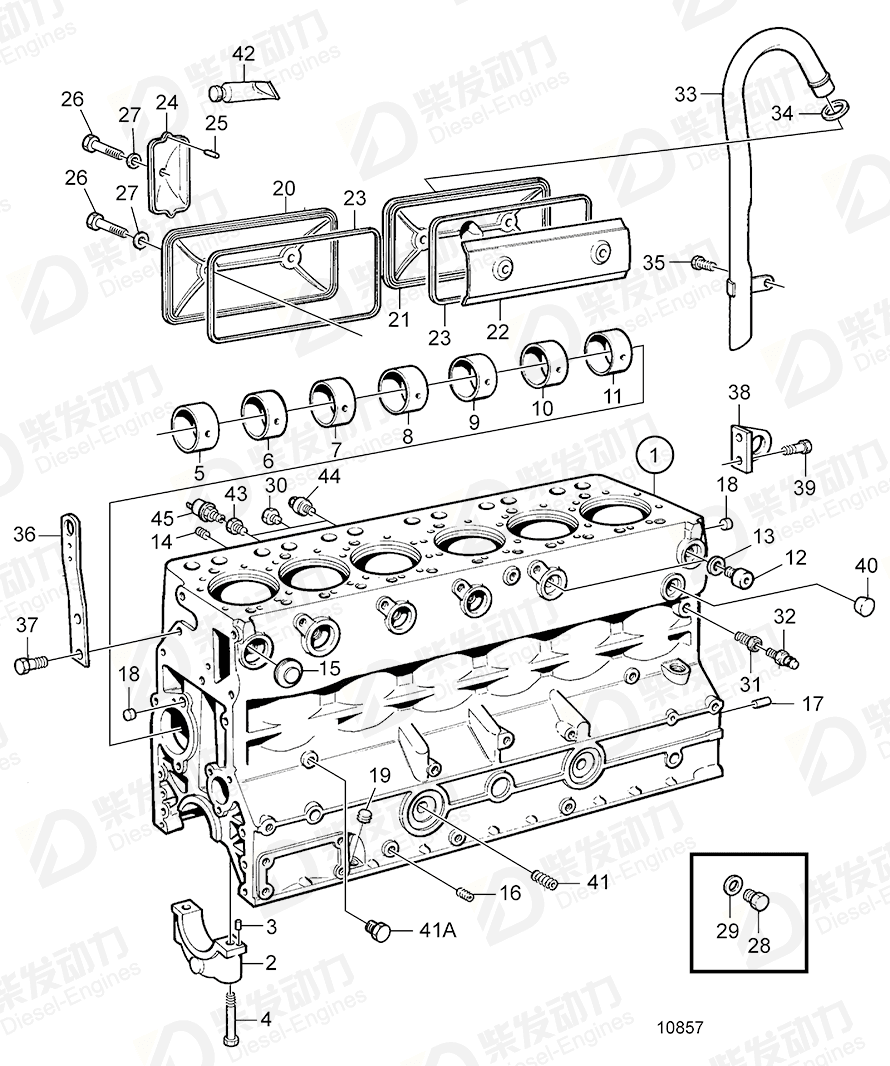

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 420700 | 1 | Spare part design., SN-2061178481 |
| 1 | Cylinder block | 420970 | 1 | SN2061178482-2061186154 |
| 1 | Cylinder block | 420990 | 1 | SN2061186155- |
| 1 | Short block | 3801052 | 1 | SN2061178482-2061186154 |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 465899 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 2 | |
| 13 | Gasket | 469328 | 2 | |
| 14 | Plug | 422369 | 7 | |
| 15 | Expansion plug | 968955 | 4 | (941256) |
| 16 | Plug | 952075 | 2 | |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 2 | |
| 19 | Cap plug | 955082 | 1 | |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 3978045 | 1 | (471858) |
| 23 | Gasket | 20591544 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 25 | Spring pin | 951973 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 29 | Gasket | 969011 | 1 | |
| 30 | Plug | 479979 | 2 | |
| 31 | Nipple | 479954 | 1 | (190130) |
| 32 | Shut-off cock | 949918 | 2 | (82745) |
| 33 | Breather pipe | 848497 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Flange screw | 946440 | 1 | |
| 37 | Flange screw | 965191 | 1 | |
| 37 | Flange screw | 965194 | 1 | |
| 39 | Flange screw | 965191 | 2 | |
| 40 | Expansion plug | 420589 | 1 | |
| 41 | Plug | 968145 | 2 | (952357) |
| 42 | Sealant | 1161231 | 1 | 304ml |
| 41A | Plug | 965768 | 1 |
| Item | Part Name | Part No. |
| 33 | Breather pipe 848497 | 848497 |
| Details | |
| Engine model | TD610G, TWD610G TD610M TD610V TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD630ME TD630VE TID61AG TWD610P TWD610V TWD630ME TWD630VE |
| Application | Cylinder Block Cylinder Block and Related Parts Cylinder Block: A Cylinder Block: B |
