Bushing 20450730

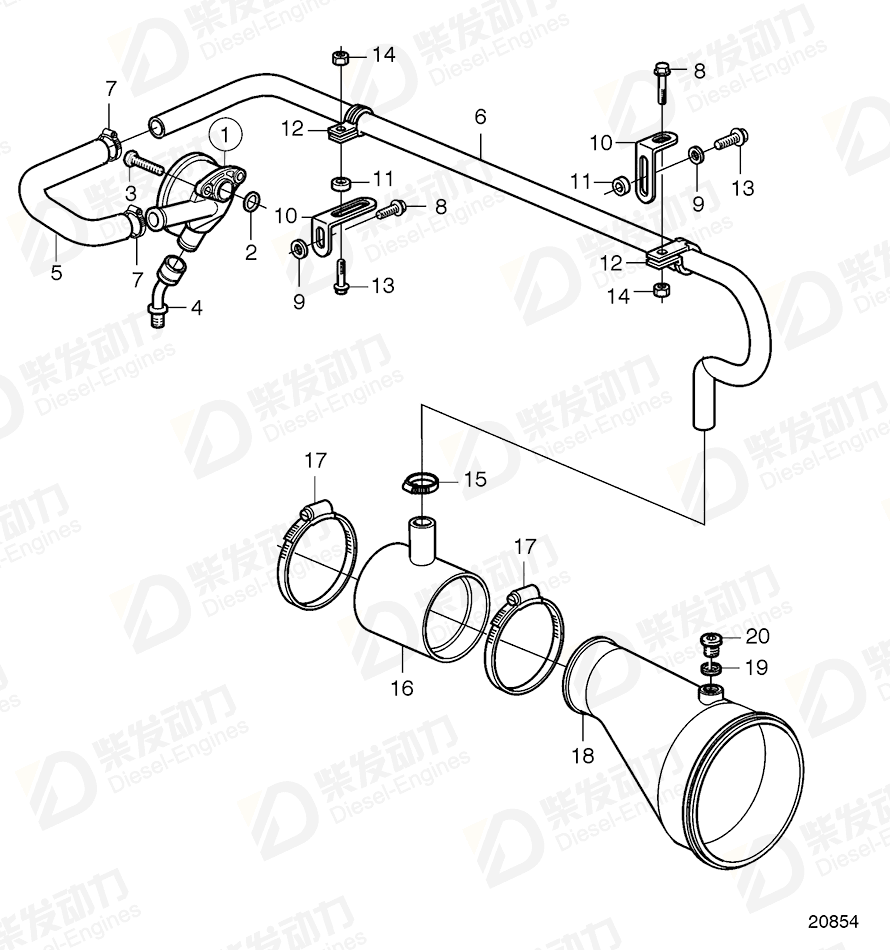

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil separator | 20412322 | 1 | |
| 2 | Gasket | 20405943 | 1 | |
| 3 | Flange screw | 20450728 | 2 | |
| 4 | Connector | 20405938 | 1 | |
| 5 | Hose | 20405629 | 1 | |
| 6 | Breather pipe | 20593219 | 1 | TAD722VE, module: 1501 0 2515 |
| 7 | Hose clamp | 20405755 | 2 | |
| 8 | Flange screw | 984734 | 2 | |
| 9 | Washer | 20405802 | 2 | |
| 10 | Bracket | 20450726 | 2 | |
| 11 | Bushing | 20450730 | 2 | |
| 12 | Clamp | 20405532 | 2 | |
| 13 | Flange screw | 20405504 | 2 | |
| 14 | Flange nut | 990940 | 2 | |
| 15 | Hose clamp | 20513342 | 1 | |
| 16 | Rubber sleeve | 20593246 | 1 | |
| 17 | Clip | 21019685 | 2 | |
| 18 | Connecting pipe | 20593233 | 1 | |
| 19 | Gasket | 947628 | 2 | |
| 20 | Plug | 20459195 | 2 |
| Item | Part Name | Part No. |
| 11 | Bushing 20450730 | 20450730 |
| Details | |
| Engine model | TAD520VE TAD720VE, TAD721VE TAD720VE, TAD721VE, TAD722VE TAD721GE, TAD722GE TAD722VE TAD730GE, TAD731GE, TAD732GE, TAD733GE TAD750VE, TAD760VE TD420VE, TAD420VE TD520VE TD720VE |
| Application | Crankcase Ventilation. High Mounted Turbo Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. High Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. High Mounted Turbo. Stage 1, Tier 1 Crankcase Ventilation. High Mounted Turbo. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2 and Tier 2 Crankcase Ventilation. Low Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. Low Mounted Turbo. Stage 2, Tier 2. Not Turnable Pipe Elbow. (35°) Crankcase Ventilation. Straight Pipe. High Mounted Turbo. Stage 2 and Tier 2 Crankcase Ventilation. Straight Pipe. Low Mounted Turbo. Stage 2 and Tier 2 Exhaust Manifold and Turbocharger. High Mounted Turbo -SN10520359 Exhaust Manifold and Turbocharger. High Mounted Turbo SN10520360- Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 |
| Specification | |
| Descriptions | (20451001) |
