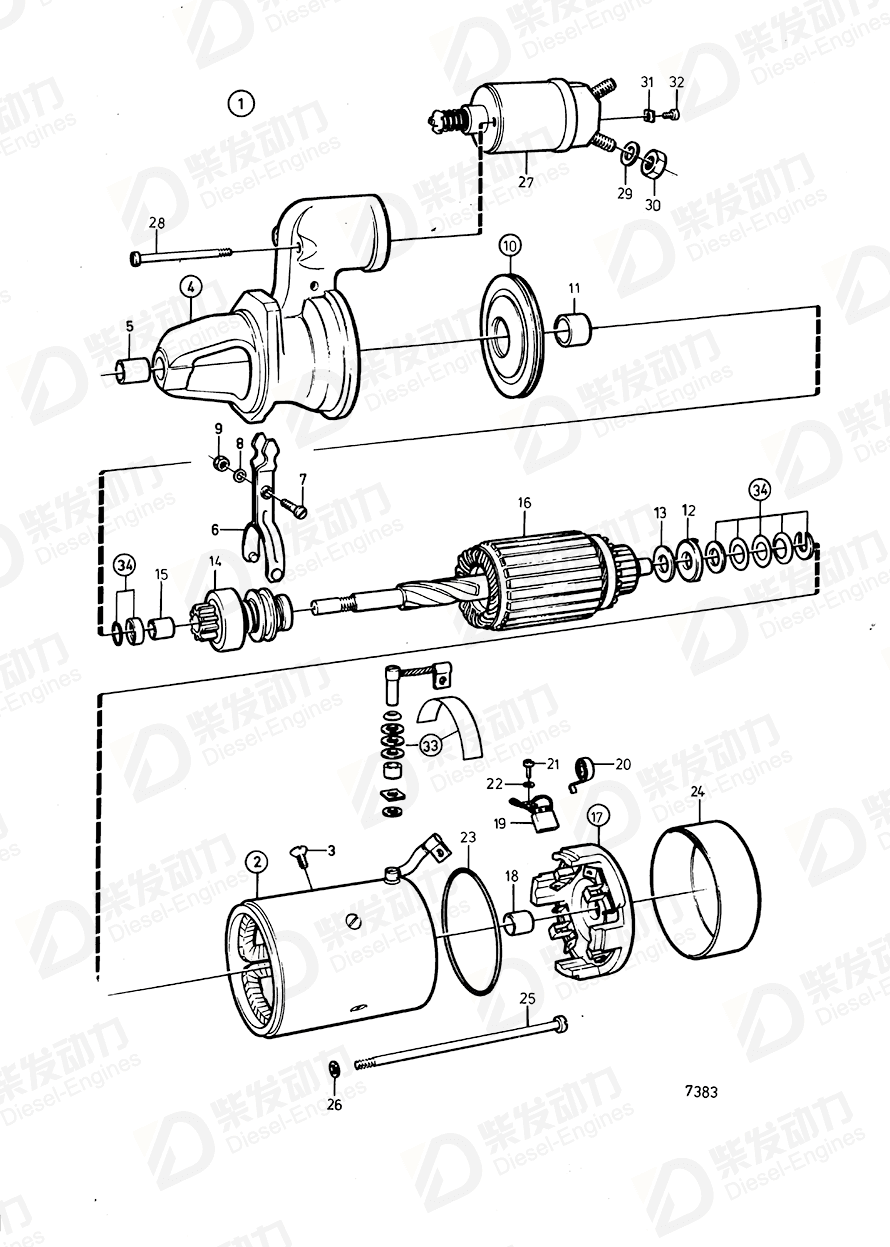

Bushing 244217
| No. |
Part Name |
Part Number |
Qty |
Description |
| 2 |
Field winding |
6645038 |
1 |
|
| 3 |
Cross recessed screw |
956130 |
4 |
|
| 4 |
Housing |
829674 |
1 |
|
| 5 |
Bearing bushing |
48109 |
1 |
|
| 6 |
Engagement lever |
6645020 |
1 |
|
| 8 |
Spring washer |
941907 |
1 |
|
| 9 |
Hexagon nut |
955782 |
1 |
|
| 11 |
Bearing bushing |
6644949 |
1 |
|
| 12 |
Lock washer |
240474 |
1 |
|
| 13 |
Washer |
244215 |
1 |
|
| 14 |
Starter pinion |
6210464 |
1 |
|
| 15 |
Bushing |
244217 |
1 |
|
| 16 |
Rotor |
244245 |
1 |
|
| 17 |
Armature bearing |
243309 |
1 |
|
| 18 |
Bushing |
241281 |
1 |
|
| 19 |
Brush set |
6644951 |
1 |
|
| 20 |
Spring |
241283 |
4 |
|
| 21 |
Screw |
244218 |
4 |
|
| 22 |
Spring washer |
941905 |
4 |
Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 23 |
O-ring |
241285 |
1 |
|
| 24 |
Cover |
241284 |
1 |
|
| 25 |
Screw |
241920 |
2 |
|
| 26 |
Washer |
955892 |
2 |
|
| 27 |
Starter solenoid |
6643967 |
1 |
(244363) |
| 28 |
Screw |
1328131 |
3 |
(6645031) |
| 29 |
Spring washer |
941908 |
2 |
|
| 30 |
Hexagon nut |
955791 |
2 |
|
| 31 |
Washer |
240499 |
1 |
(241601) |
| 32 |
Cross recessed screw |
956058 |
1 |
|
| 33 |
Connecting kit |
6645051 |
1 |
|
| 34 |
Small parts kit |
829707 |
1 |
(241296) |
| Item |
Part Name |
Part No. |
| 15 |
Bushing 244217 |
244217 |
| Details |
| Application |
Starter |
