Bushing 3825105

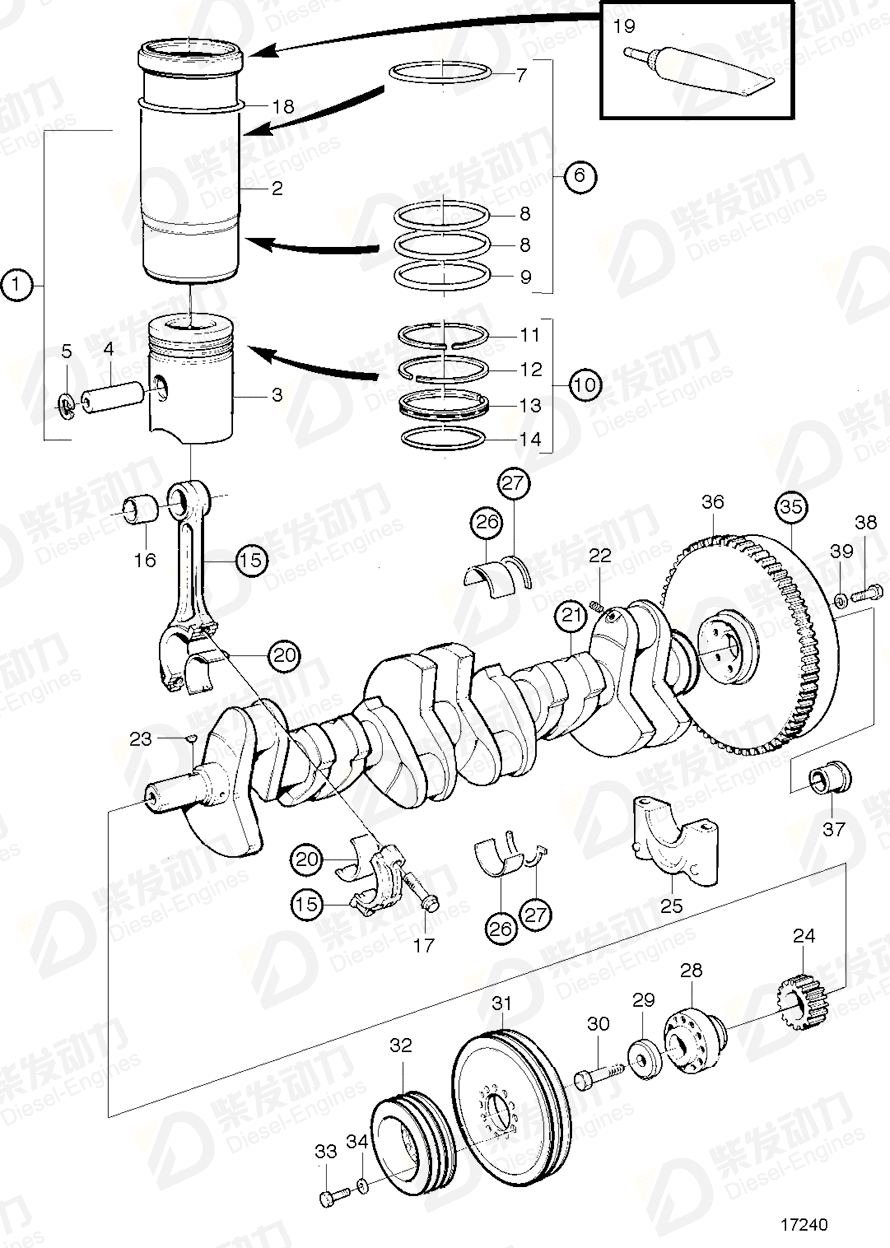

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275642 | 6 | |
| 4 | Gudgeon pin | 8193838 | 6 | (479876) |
| 5 | Snap ring | 914530 | 12 | |
| 6 | Gasket kit | 270950 | 6 | |
| 10 | Piston ring kit | 276167 | 6 | |
| 15 | Connecting rod | 478437 | 6 | |
| 16 | Bushing | 470304 | 6 | |
| 17 | Flange screw | 1545479 | 12 | (417464) |
| 18 | Adjusting washer | 468271 | 1 | TH=0.20mm |
| 18 | Adjusting washer | 468272 | 1 | TH=0.30mm |
| 18 | Adjusting washer | 468273 | 1 | TH=0.50mm |
| 19 | Sealant | 1161277 | 1 | 20g |
| 20 | Big-end bearing kit | 270130 | 6 | Std D |
| 20 | Big-end bearing kit | 270131 | 6 | 0,25mm u.s |
| 20 | Big-end bearing kit | 270132 | 6 | 0,50mm u.s |
| 20 | Big-end bearing kit | 270133 | 6 | U.S=0,75mm |
| 20 | Big-end bearing kit | 270134 | 6 | U.S=1,00mm |
| 20 | Big-end bearing kit | 270135 | 6 | U.S=1,25mm |
| 21 | Crankshaft | 865032 | 1 | Without gear. |
| 21 | Crankshaft, 14 hole for flywheel | 3137528 | 1 | Without gear., SNXXXXXXXXXX/190309- |
| 22 | Plug | 978130 | 6 | |
| 23 | Woodruff key | 422253 | 1 | |
| 24 | Gear | 423080 | 1 | |
| 26 | Main bearing kit | 270449 | 7 | Std |
| 26 | Main bearing kit | 270450 | 7 | 0.25mm u.s |
| 26 | Main bearing kit | 270451 | 7 | 0.50mm u.s |
| 26 | Main bearing kit | 270452 | 7 | 0.75mm u.s |
| 27 | Thrust washer kit | 276791 | 1 | Std D |
| 27 | Thrust washer kit | 276792 | 1 | 0,1mm o.s |
| 27 | Thrust washer kit | 276793 | 1 | 0,2mm o.s |
| 28 | Hub | 424958 | 1 | |
| 29 | Washer | 422124 | 1 | |
| 30 | Hexagon screw | 941494 | 1 | |
| 31 | Vibration damper | 866393 | 1 | |
| 32 | V-belt pulley | 468187 | 1 | HC50x3 grooves |
| 33 | Hexagon screw | 955549 | 6 | AQ170B MOXXXX/87713-., L=45mm |
| 34 | Spring washer | 941909 | 6 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 35 | Flywheel, 14 hole | 864997 | 1 | |
| 35 | Flywheel, 14 hole | 866776 | 1 | Clark 34000, C5000, C8000 |
| 35 | Flywheel, 14 hole | 3825104 | 1 | Clark36000, SN2100279498- |
| 36 | Ring gear | 420794 | 1 | For gear box Voith. |
| 37 | Bushing | 849326 | 1 | Clark |
| 37 | Bushing | 3825105 | 1 | For 3825104 |
| 38 | Hexagon screw | 478717 | 14 | For gear box Voith. |
| 38 | Hexagon screw | 941570 | 14 | |
| 39 | Washer | 467773 | 14 |
| Item | Part Name | Part No. |
| 37 | Bushing 3825105 | 3825105 |
| Details | |
| Engine model | TD121G-87 TWD1230ME TWD1230VE, TWD1231VE |
| Application | Crank Mechanism Crank Mechanism: A Crank Mechanism: B |
| Specification | |
| Descriptions | For 3825104 |
Related Products
Tags: Bushing, Volvo Penta, 3825105
