Bushing 3825182

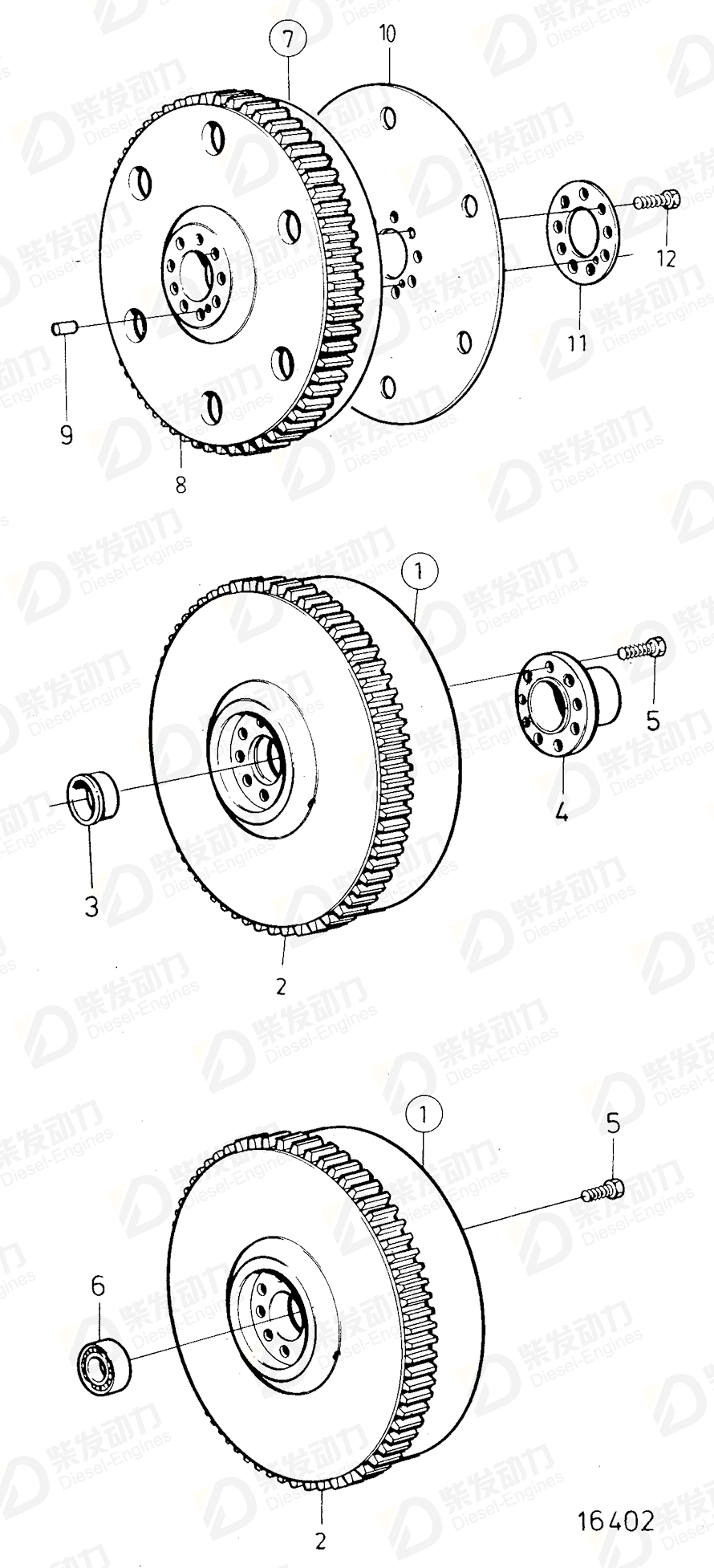

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel | 3825285 | 1 | For Volvo 15'' vehicle clutch |
| 1 | Flywheel | 3825700 | 1 | For Clark 34000, C8000 and C5000. |
| 1 | Flywheel | 3825732 | 1 | |
| 1 | Flywheel | 3825744 | 1 | For ZF WG 180 with disc drive., Repl by fly wheel 3826127, hub 3825742 and 9pc screw 465826. |
| 1 | Flywheel | 3825746 | 1 | For Clark 28000 and C270. |
| 1 | Flywheel | 3825751 | 1 | For Twin Disc TT3000 and TT2000 |
| 1 | Flywheel | 3826127 | 1 | For ZF WG 150., For ZF WG 180 with strap connection., (3825756) |
| 1 | Flywheel | 3826475 | 1 | For Clark 24000., (3825730) |
| 2 | Ring gear | 420314 | 1 | |
| 2 | Ring gear | 8193939 | 1 | |
| 3 | Bushing | 3825182 | 1 | For 866742, 3825178 |
| 4 | Hub | 3825742 | 1 | For ZF WG 180 with strap connection. |
| 4 | Spacer | 3825866 | 1 | For ZF WG 150. |
| 5 | Flange screw | 465825 | 9 | |
| 5 | Flange screw | 465826 | 9 | SN-2071018953 |
| 5 | Flange screw | 471541 | 9 | |
| 6 | Ball bearing | 181335 | 1 | |
| 7 | Flywheel | 3825287 | 1 | For MT643 with flywheel housing of vehichle type. |
| 7 | Flywheel | 8192062 | 1 | For Allison MT643 with Volvo Penta flywheel housing. |
| 8 | Ring gear | 420314 | 1 | |
| 9 | Pin | 950677 | 1 | |
| 10 | Flexplate | 3827293 | 1 | |
| 11 | Thrust plate | 477844 | 1 | |
| 12 | Flange screw | 465826 | 9 | SN-2071018953 |
| Item | Part Name | Part No. |
| 3 | Bushing 3825182 | 3825182 |
| Details | |
| Engine model | TD610M, TD630ME, TWD630ME TD610V, TWD610V, TD630VE, TWD630VE TD61A TD61AW TD71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD71AW TD730ME, TWD730ME, TWD731ME TID71A TWD730ME TWD740VE |
| Application | Flywheel Flywheel and Flywheel Housing for Clark 34000/36000 with C5000 Converter Flywheel, SN-2061106089 Flywheel, SN-2071078953 Flywheel, SN2061106090- Flywheel, SN2071078954- Flywheel: A Flywheel: B Flywheel: C |
| Specification | |
| Descriptions | For 3825700, 3825746 For 3825746 For 866742, 3825178 For 866742, 3825178, |
