Bushing 422066

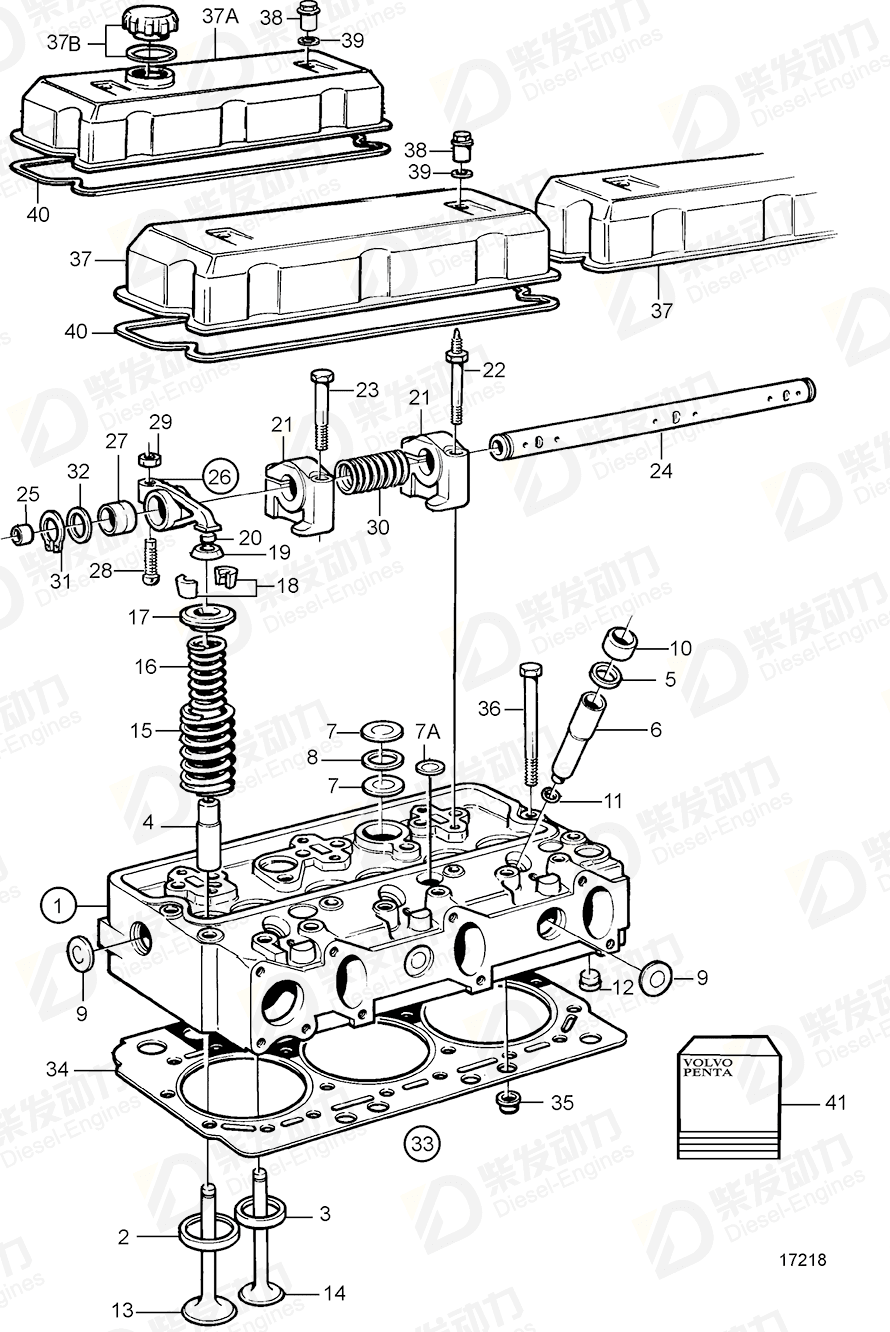

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803311 | 2 | E.U=3803100, (471409) |
| 2 | Valve seat | 421011 | 6 | Std D |
| 2 | Valve seat | 421316 | 6 | 0.20mm o.s |
| 3 | Valve seat | 466266 | 6 | Std D |
| 3 | Valve seat | 466307 | 6 | 0.20mm o.s |
| 4 | Valve guide | 466386 | 12 | |
| 5 | Sealing ring | 466405 | 6 | |
| 7 | Expansion plug | 477026 | 8 | (192426) |
| 8 | Gasket | 947626 | 4 | |
| 9 | Expansion plug | 477024 | 8 | (192211) |
| 10 | Ring | 466420 | 6 | |
| 11 | O-ring | 466922 | 6 | (944124) |
| 12 | Jet | 465420 | 10 | |
| 13 | Inlet valve | 466379 | 6 | |
| 14 | Exhaust valve | 842080 | 6 | (471195) |
| 15 | Valve spring | 466384 | 12 | |
| 16 | Valve spring | 466383 | 12 | |
| 17 | Valve spring washer | 466382 | 12 | |
| 18 | Valve cotter | 468305 | 24 | |
| 19 | Protecting ring | 469456 | 12 | Replaced by 1pc 829493, 1pc 833521, 1pc 957181., (466932) |
| 20 | Valve cap | 478074 | 12 | |
| 21 | Bearing bracket | 477384 | 6 | |
| 22 | Stud | 471512 | 4 | |
| 23 | Flange nut | 471513 | 8 | |
| 24 | Rocker arm shaft | 471518 | 2 | |
| 25 | Cap plug | 946778 | 2 | |
| 26 | Rocker arm | 422063 | 12 | |
| 27 | Bushing | 422066 | 12 | |
| 28 | Ball stud | 422993 | 12 | |
| 29 | Hexagon nut | 940175 | 12 | |
| 30 | Spring | 421173 | 4 | |
| 31 | Retaining ring | 914459 | 4 | |
| 32 | Washer | 941488 | 4 | |
| 33 | Cylinder head gasket | 276816 | 2 | (275779) |
| 35 | Sealing ring | 422413 | 2 | D=11mm |
| 35 | Sealing ring | 465784 | 12 | |
| 35 | Sealing ring | 466421 | 16 | D=16mm |
| 36 | Flange screw | 471481 | 40 | |
| 37 | Valve cover | 471426 | 2 | |
| 38 | Cap nut | 465961 | 4 | |
| 39 | Sealing ring | 471856 | 4 | |
| 40 | Gasket | 471520 | 2 | |
| 41 | Copper sleeve kit | 276130 | 6 | The copper sleeve kit includes sleeve, steel ring, o-ring and rubber ring. |
| 7A | Expansion plug | 477026 | 6 | (192426) |
| 37A | Valve cover | 471813 | 1 | Alt |
| 37B | Cover | 420178 | 1 |
| Item | Part Name | Part No. |
| 27 | Bushing 422066 | 422066 |
| Details | |
| Engine model | D100A, TD100A D100B D100BHC, D100BRC D120A D70B D70CHC D70CRC DH10A TAD1030G TAD1030GE TAD1030P TAD1031GE, TAD1032GE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD730G TAD730P TAD730V TD100AHC, TD100ARC TD100CHC TD100CRC TD100G-87 TD100G-87, TAD1030V, TWD1031VE, TAD1030VE TD1010G, TWD1010G TD1030ME, TWD1030ME TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G, TD120GG TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TD121CHC TD121CRC TD121G-87, TD121GG-87, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87, TWD1210P, TWD1211P TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G, TWD710G TD71A TD730ME TD730VE THD102KD, THD102KB TID120FG TID120HPP TID121FG TID70G TID71A TWD710P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D |
Related Products
Tags: Bushing, Volvo Penta, 422066
