Cable 1129296

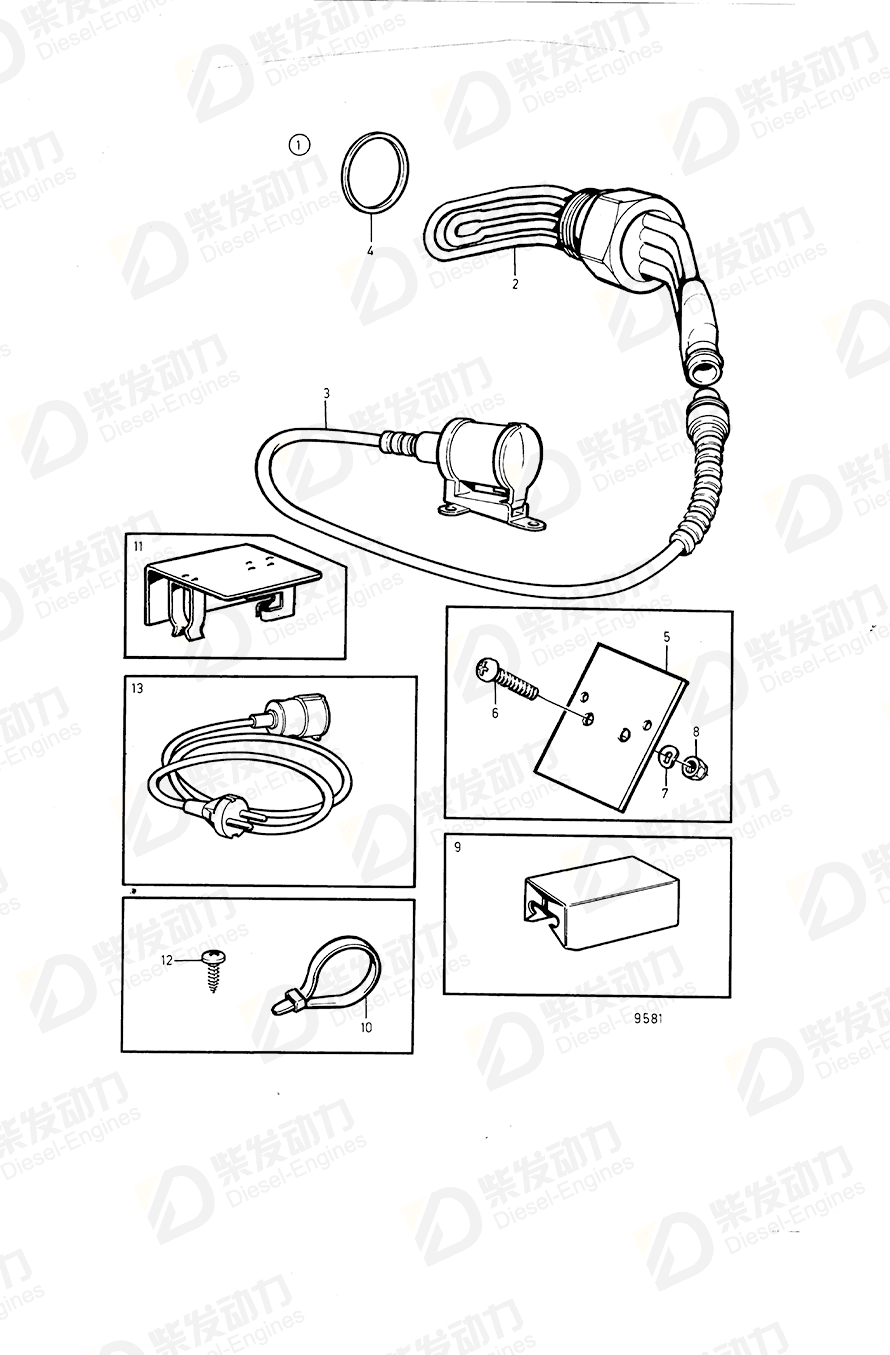

| No. | Part Name | Part Number | Qty | Description |
| 1 | Engine heater | 1129309 | 1 | Not included in set of tools 821127. |
| 4 | Gasket | 469328 | 1 | |
| 6 | Cross recessed screw | 956061 | 3 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 7 | Toothed washer | 955945 | 3 | AQ290A MO 20460-. |
| 8 | Hexagon nut | 955779 | 3 | |
| 10 | Cable tie | 948211 | 8 | |
| 11 | Heat shield | 1584857 | 1 | |
| 12 | Cross recessed screw | 955127 | 3 | |
| 13 | Cable | 1129295 | 1 | |
| 13 | Cable | 1129296 | 1 | L=5000mm |
| Item | Part Name | Part No. |
| 13 | Cable 1129296 | 1129296 |
| Details | |
| Engine model | TD100G, TD100HP-87, TID100K TD120HP-86, TD121G, TID121K, TID121L-87 TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP |
| Application | Engine Heater, Block Mounted Engine Heater: 1129309 Engine Heater: 1622520 |
| Specification | |
| Descriptions | L=5000mm |
