Cable block 846694

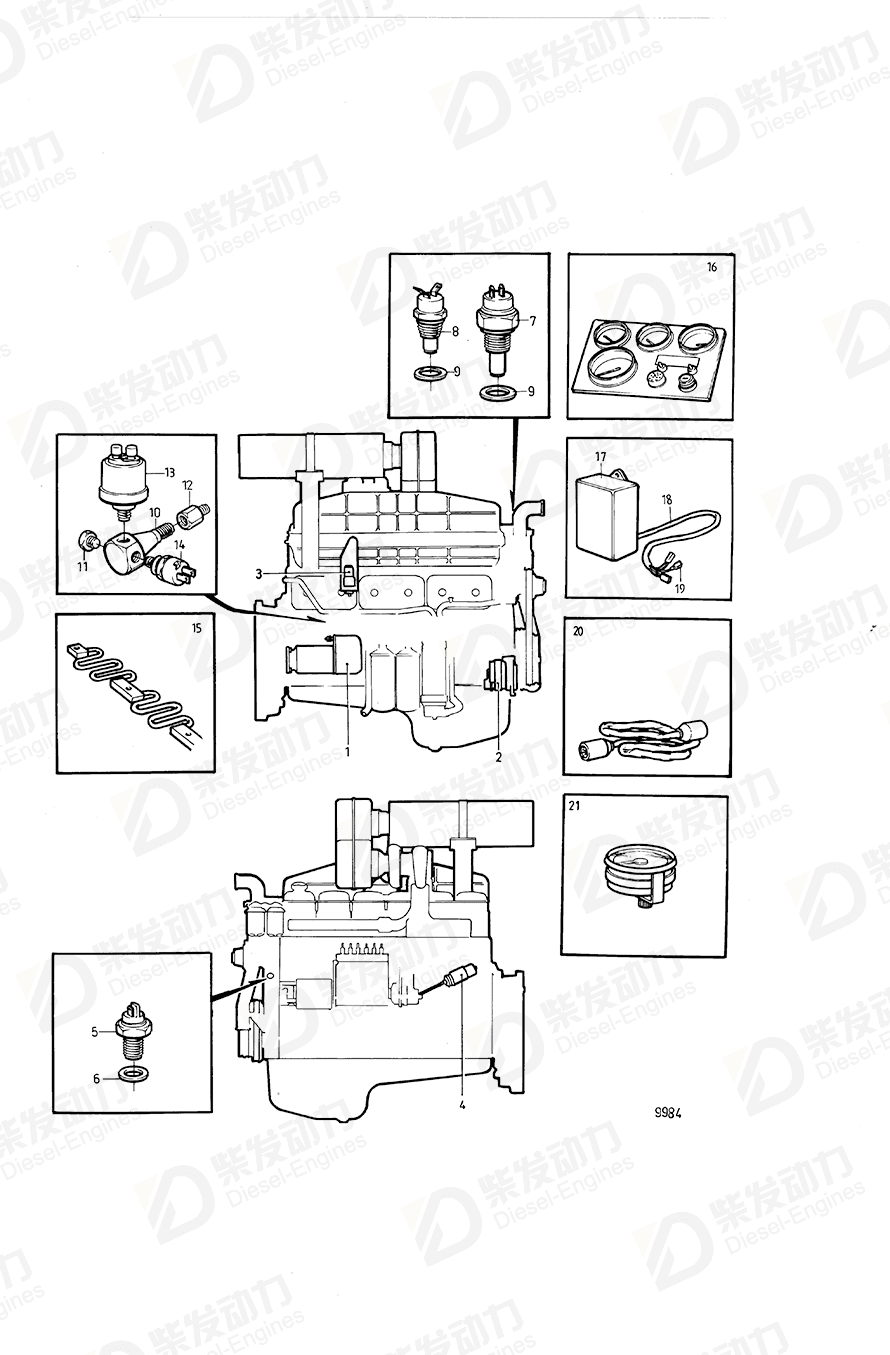

| No. | Part Name | Part Number | Qty | Description |
| 5 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 6 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 7 | Temperature sensor | 843325 | 1 | |
| 8 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 9 | Gasket | 947624 | 2 | |
| 10 | T-nipple | 834391 | 1 | Spec.867490 |
| 11 | Plug | 180759 | 1 | |
| 12 | Nipple | 835980 | 1 | |
| 13 | Oil pressure sensor | 843231 | 1 | |
| 14 | Pressure monitor | 864284 | 1 | Stop (848367) |
| 18 | Cable block | 846694 | 1 | To instrument panel., Split end |
| 18 | Cable block | 847039 | 1 | Cable unit engine., Std |
| 20 | Extension cable | 846648 | 1 | L=3000mm |
| 20 | Extension cable | 846649 | 1 | L=5000mm |
| 20 | Extension cable | 846650 | 1 | L=7000mm |
| Item | Part Name | Part No. |
| 18 | Cable block 846694 | 846694 |
| Details | |
| Engine model | TD100G TD100G-85 TD100GG TD100GG-85 TD121G TD121GG TD121GG-86 TD61A TD61AG TD61AP TD61AW, TD61ACE TD71A TD71AG TD71AP TD71AW, TD71ACE TID100K TID100KG TID121FG TID121K TID121KG TID121LG TID61AG TID71A TID71AG TID71AP |
| Application | Electrical System and Instruments: 867903 Electrical System and Instruments: 867905 Electrical System and Instruments: 867906 Electrical System and Instruments: 867907 Electrical System and Instruments: 867909 Electrical System and Instruments: 867911 Electrical System and Instruments: 867912 Electrical System and Instruments: 867913 Electrical System and Instruments: 867914 Electrical System and Instruments: 867915 Electrical System and Instruments: 867916 Electrical System and Instruments: 867919 Electrical System and Instruments: A Electrical System and Instruments: B Electrical System and Instruments: C |
| Specification | |
| Descriptions | IS USED WHEN INSTRUMENT PANEL NOT PRODUCED BY VOLVOPENTA IS INSTALLED, L = 2000 MM To instrument panel., Split end |
