Cable kit 866927

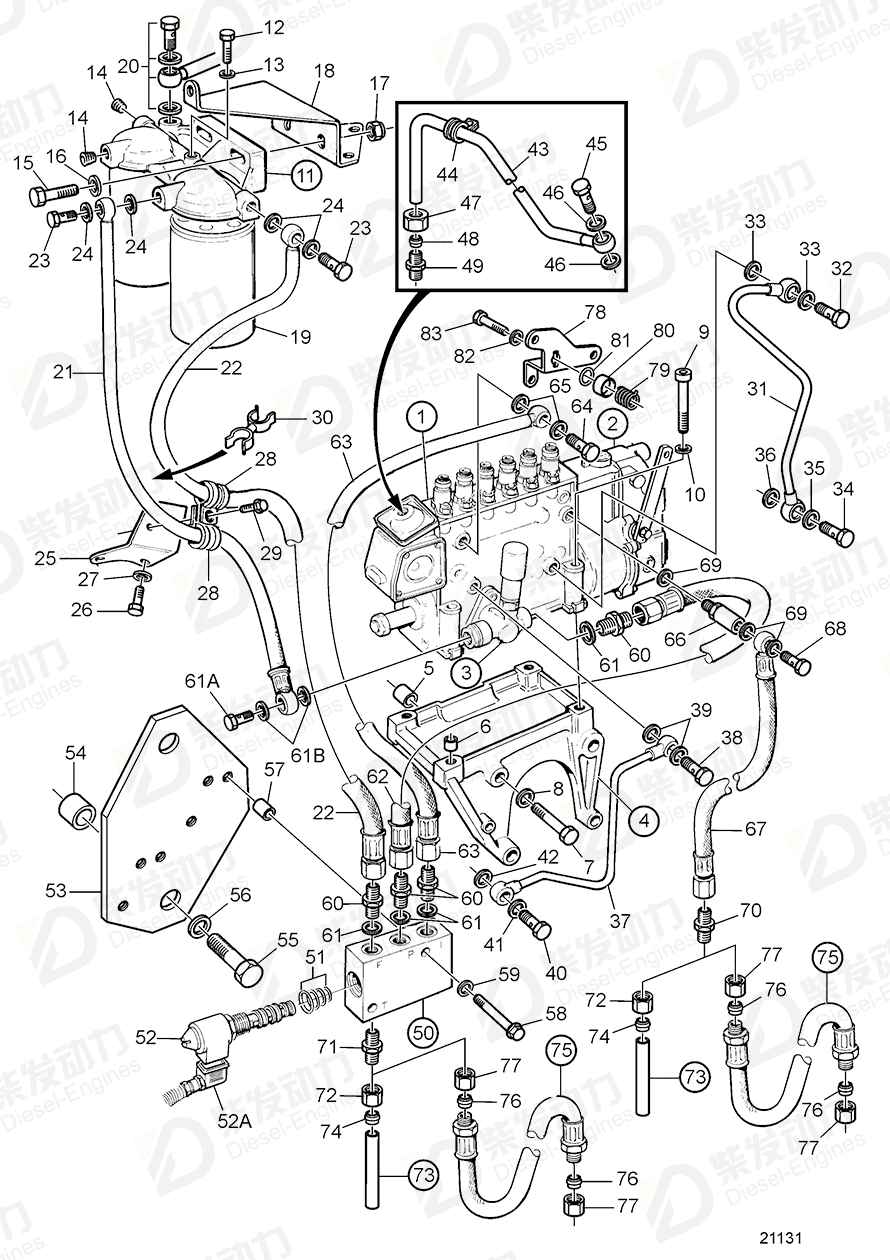

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803736 | 1 | |
| 1 | Injection pump | 3825516 | 1 | |
| 2 | Governor | 3825878 | 1 | |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Bracket | 478647 | 1 | |
| 5 | Guide sleeve | 423161 | 2 | |
| 6 | Guide sleeve | 417588 | 1 | |
| 7 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Hexagon screw | 940156 | 4 | |
| 10 | Washer | 190509 | 4 | |
| 11 | Fuel filter housing | 8194541 | 1 | |
| 12 | Hollow screw | 471177 | 1 | |
| 13 | Gasket | 947620 | 1 | (233321) |
| 14 | Plug | 968062 | 3 | |
| 15 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 16 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 17 | Lock nut | 946420 | 2 | |
| 19 | Fuel filter | 3825133 | 2 | |
| 21 | Hose | 3826263 | 1 | |
| 22 | Fuel hose | 3825602 | 1 | |
| 23 | Hollow screw | 25167 | 2 | |
| 24 | Gasket | 969011 | 4 | |
| 25 | Bracket | 479559 | 1 | |
| 28 | Clamp | 952631 | 2 | |
| 29 | Flange screw | 967949 | 1 | |
| 30 | Retainer | 9205207 | 2 | |
| 31 | Return pipe | 422246 | 1 | |
| 32 | Hollow screw | 25167 | 1 | |
| 33 | Gasket | 969011 | 2 | |
| 34 | Hollow screw | 942007 | 1 | (954394) |
| 35 | Gasket | 11998 | 1 | |
| 36 | Gasket | 942703 | 1 | |
| 37 | Oil feed pipe | 422245 | 1 | |
| 38 | Hollow screw | 48634 | 1 | |
| 39 | Gasket | 947281 | 2 | |
| 40 | Hollow screw | 942081 | 1 | |
| 41 | Gasket | 18666 | 1 | |
| 42 | Gasket | 11994 | 1 | |
| 43 | Pipe | 479678 | 1 | |
| 44 | Clamp | 18368 | 1 | |
| 45 | Hollow screw | 969299 | 1 | |
| 46 | Gasket | 11994 | 2 | |
| 47 | Fitting nut | 954357 | 1 | |
| 48 | Fitting | 954365 | 1 | |
| 49 | Elbow nipple | 954386 | 1 | |
| 50 | Fuel valve | 3828983 | 1 | |
| 51 | Gasket kit | 3828981 | 1 | |
| 52 | Magnet | 3825240 | 1 | |
| 53 | Bracket | 3826145 | 1 | |
| 54 | Spacer sleeve | 1678297 | 2 | |
| 55 | Hexagon screw | 955570 | 2 | Alt L=89mm |
| 56 | Spring washer | 940280 | 2 | |
| 57 | Spacer sleeve | 843075 | 2 | |
| 58 | Flange screw | 973924 | 2 | |
| 59 | Washer | 976944 | 2 | |
| 60 | Nipple | 941754 | 4 | |
| 61 | Gasket | 969011 | 4 | |
| 62 | Hose | 3826142 | 1 | |
| 63 | Fuel hose | 3825603 | 1 | |
| 64 | Hollow screw | 978197 | 1 | |
| 65 | Gasket | 969011 | 2 | |
| 66 | Overflow valve | 3825154 | 1 | |
| 67 | Fuel hose | 3825603 | 1 | |
| 68 | Hollow screw | 25167 | 1 | |
| 69 | Gasket | 969011 | 3 | |
| 70 | Nipple | 957055 | 1 | |
| 71 | Nipple | 977677 | 1 | |
| 72 | Fitting nut | 956983 | 2 | |
| 73 | Fuel pipe | 3825770 | 2 | |
| 74 | Ferrule | 956969 | 2 | |
| 75 | Fuel hose | 865737 | 2 | |
| 76 | Ferrule | 956969 | 4 | |
| 77 | Fitting nut | 956983 | 4 | |
| 78 | Intermediate lever | 848677 | 1 | (821134) |
| 79 | Spring | 239056 | 1 | Replaced by 837364. |
| 80 | Cover | 239059 | 1 | Replaced by 837364 |
| 81 | Washer | 120265 | 1 | |
| 82 | Spring washer | 941906 | 1 | |
| 83 | Hexagon screw | 955637 | 1 | |
| 52A | Cable kit | 866927 | 1 | |
| 61A | Hollow screw | 25167 | 1 | |
| 61B | Gasket | 969011 | 2 |
| Item | Part Name | Part No. |
| 52A | Cable kit 866927 | 866927 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TAD1230P TAD1230V TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD730P TAD730V TAD740GE TAD741GE TD100G-87 TD1030ME TD1030VE TD121G-87 TD121GP-87 TD630ME TD630VE TD640VE TD71A TD730ME TD730VE TID71A TWD1210P TWD1210V TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1630P TWD1630V TWD630ME TWD630VE TWD710P TWD710V TWD731ME TWD731VE TWD740GE |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System with Fuel Shut-offValve Fuel System with Shut-off Valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump with Shut-off Valve, Energized to Run. Option. Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C |
