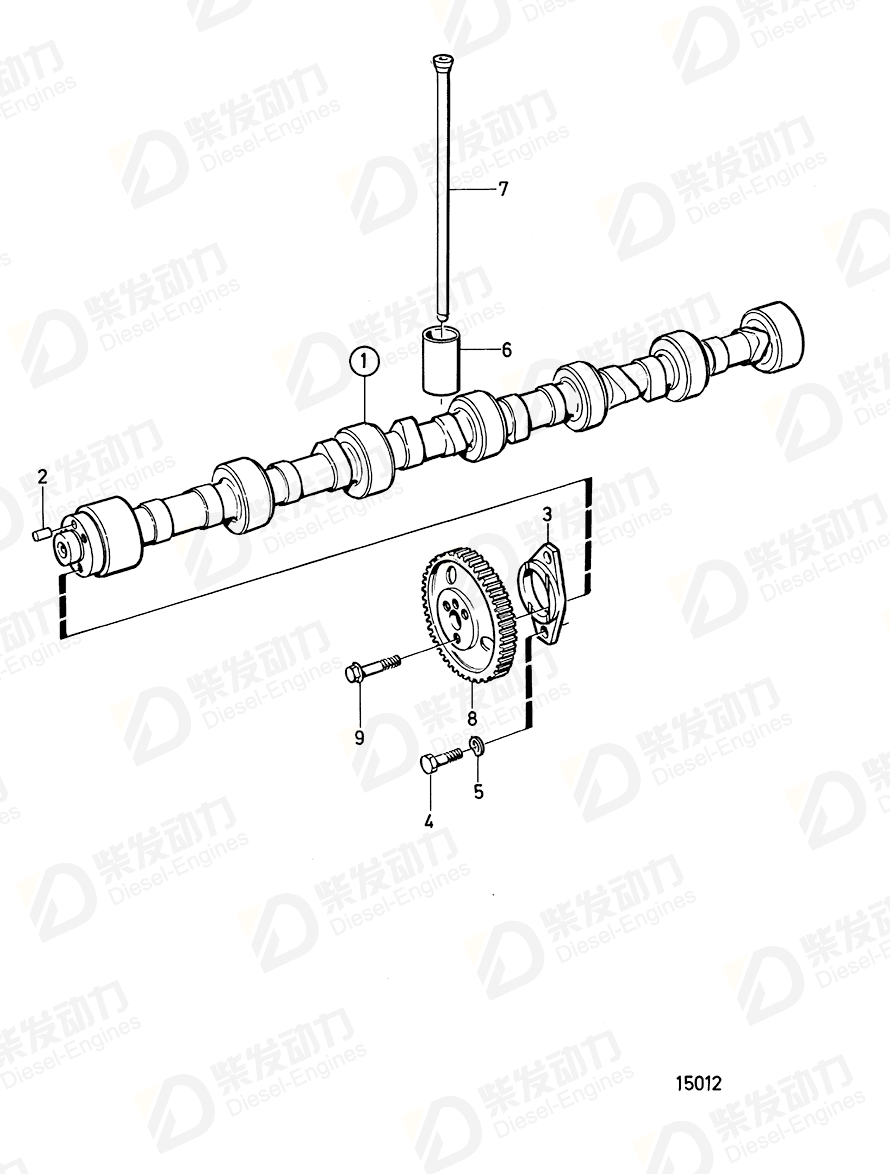

Camshaft 1545071
| No. | Part Name | Part Number | Qty | Description |
| 1 | Camshaft | 1545071 | 1 | Replaced by 1 pce 8194480 and 3 pcs 471555., SN-2100290422 |
| 1 | Camshaft | 8194480 | 1 | |
| 2 | Pin | 950588 | 1 | |
| 3 | Flange | 465789 | 1 | |
| 5 | Spring washer | 942336 | 2 | |
| 6 | Tappet | 479863 | 12 | |
| 7 | Push rod | 467820 | 12 | |
| 7 | Push rod | 8121477 | 12 | Repl by 467820 |
| 8 | Gear | 478297 | 1 | |
| 9 | Flange screw | 471555 | 3 |
| Item | Part Name | Part No. |
| 1 | Camshaft 1545071 | 1545071 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G |
| Application | Camshaft Camshaft: A Camshaft: B |
| Specification | |
| Descriptions | Repl by 479450 Replaced by 1 pce 479450 and 3 pcs 471555., SN-XXXXXXXXXX/250428 Replaced by 1 pce 8194480 and 3 pcs 471555., SN-2100290422 |
