Cap 842235

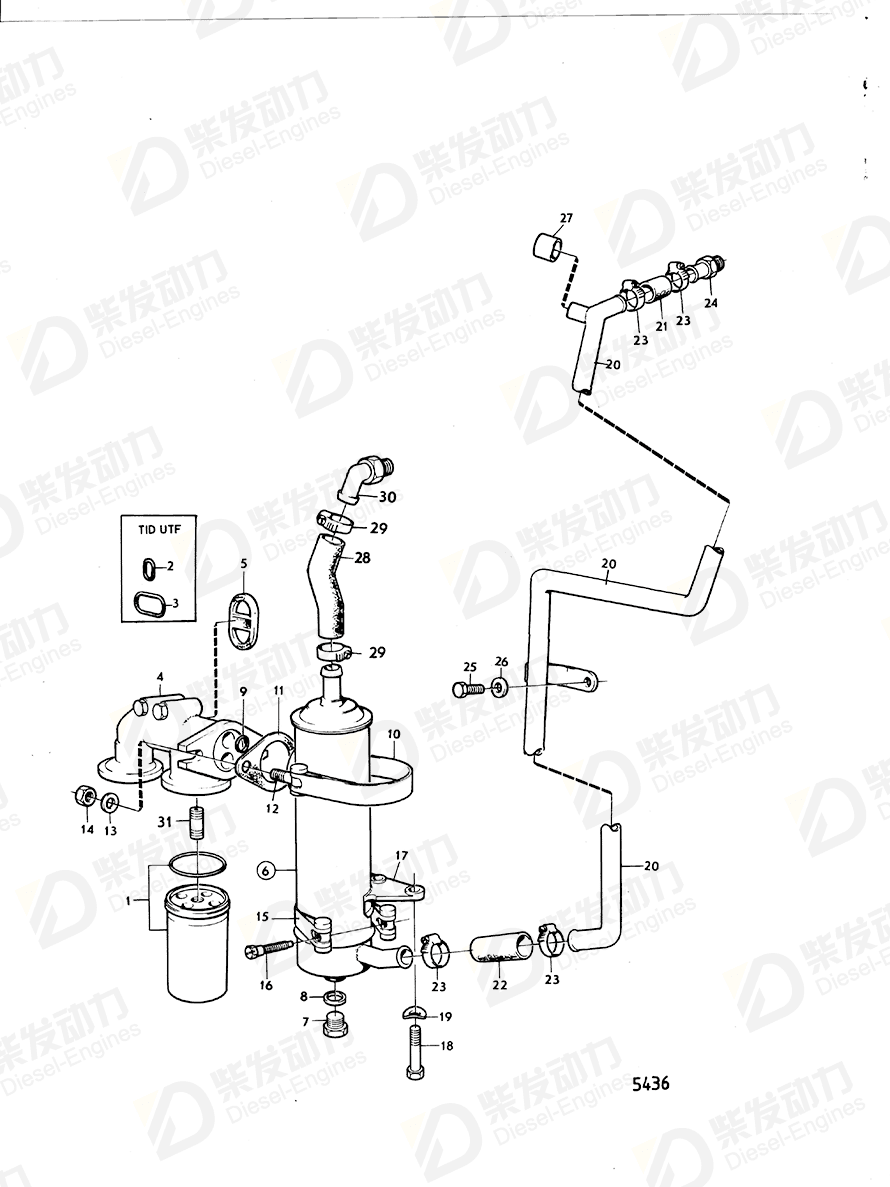

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter | 4785974 | 1 | |
| 2 | O-ring | 422551 | 1 | D70B spec. 867221., Early type |
| 3 | Sealing ring | 469481 | 1 | D70B spec. 867221., Early type (424334) |
| 4 | Housing | 468319 | 1 | Repl by valve lifter 1542208 and push rod 1542207., See group 2B |
| 5 | Gasket | 469484 | 1 | Repl by valve lifter 1542208 and push rod 1542207., See group 2B |
| 6 | Oil cooler | 468035 | 1 | Repl by 1544501 |
| 7 | Plug | 16318 | 1 | |
| 8 | Gasket | 907132 | 1 | |
| 9 | Sealing ring | 469483 | 2 | (422581) |
| 10 | Strap | 468044 | 1 | For spec 867189 MO-XXXX/21742-., Early type |
| 10 | Tensioning band | 1545255 | 1 | Late type |
| 11 | Guide washer | 468076 | 1 | |
| 12 | Stud | 924070 | 2 | Late type |
| 12 | Stud | 953245 | 2 | Early type |
| 13 | Washer | 960141 | 2 | |
| 14 | Hexagon nut | 955782 | 2 | |
| 14 | Hexagon nut | 955826 | 2 | |
| 15 | Tensioning band | 1545256 | 1 | (468659) early type |
| 16 | Hexagon screw | 31406 | 1 | |
| 16 | Hexagon screw | 1545257 | 1 | Late type |
| 17 | Bracket | 468068 | 1 | |
| 18 | Hexagon screw | 955525 | 2 | |
| 19 | Washer | 960141 | 2 | |
| 20 | Tube | 468046 | 1 | |
| 21 | Rubber hose | 943369 | 1 | L=165 mm |
| 22 | Rubber hose | 943369 | 1 | L=165 mm |
| 23 | Hose clamp | 994559 | 4 | |
| 24 | Hose nipple | 942691 | 1 | |
| 25 | Hexagon screw | 940113 | 1 | |
| 26 | Spring washer | 941907 | 1 | |
| 27 | Cap | 842235 | 1 | |
| 28 | Rubber hose | 943369 | 1 | L=165 mm |
| 29 | Hose clamp | 994559 | 2 | |
| 30 | Elbow nipple | 942590 | 1 | |
| 31 | Nipple | 423067 | 1 |
| Item | Part Name | Part No. |
| 27 | Cap 842235 | 842235 |
| Details | |
| Engine model | D100B, TD100A D70B TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD121CHC TAD1660VE, TAD1661VE, TAD1662VE TD100G-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE TD120A TD120GG TD30A TD31ACE TD70B TID120HPP TID121FG TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1643GE, TWD1663GE TWD1652GE, TWD1653GE |
| Application | Lubricating System LUBRICATING SYSTEM: B LUBRICATING SYSTEM: TID121FP Oil Cooler and Oil Filter Oil Cooler and Oil Filter: A Oil Cooler and Oil Filter: B Oil Cooler, Side Mounted Oil Cooler-side Mounted and Installation Components: A Oil Cooler-side Mounted and Installation Components: B Radiator and Installation Components: A Radiator and Installation Components: B Radiator with Connecting Components. SN2016064437-2016076784 Water Pump and Thermostat Housing, Radiator Cooling Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016064436 Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016080035. Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN2016064437-SN2016080035. |
| Specification | |
| Descriptions | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-., Alt |
