Cap 896632

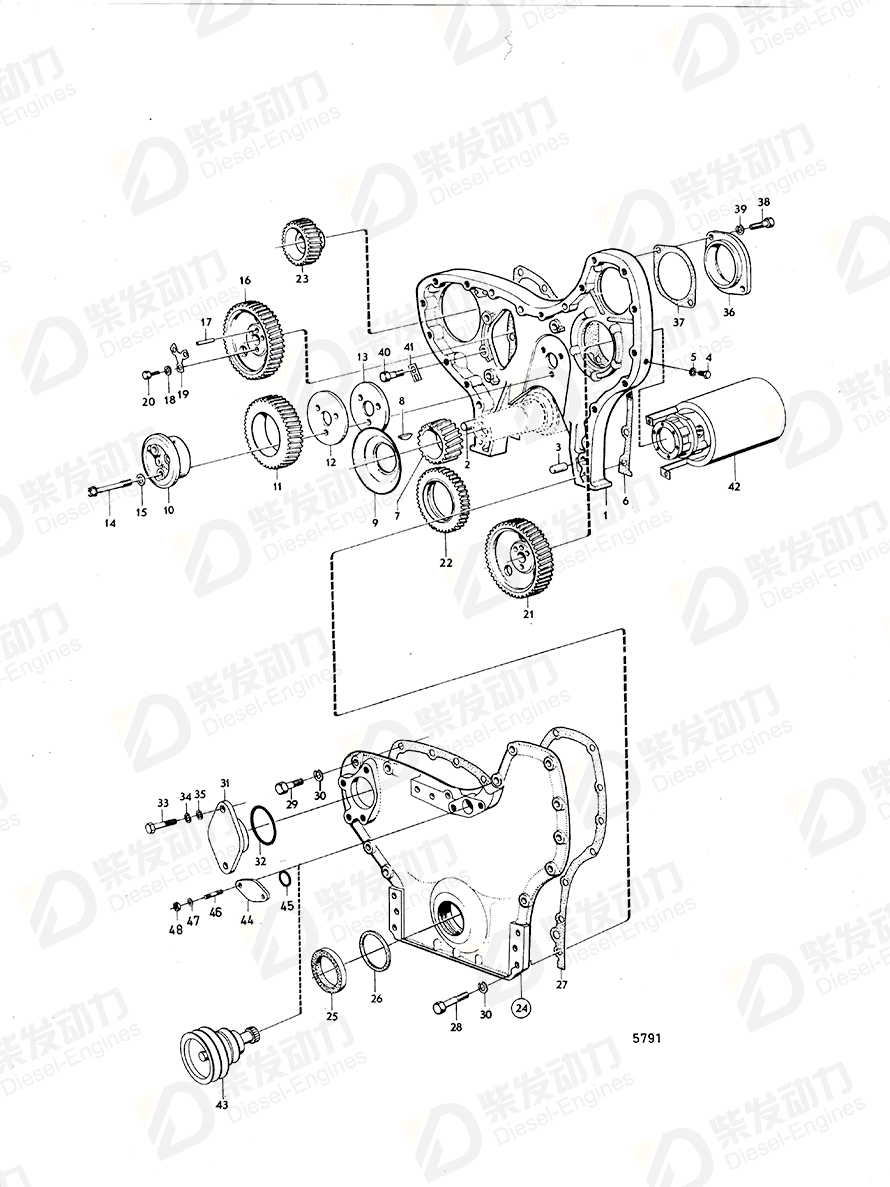

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 421413 | 1 | |
| 2 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 5 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 6 | Gasket | 421057 | 1 | |
| 7 | Crankshaft gear | 421080 | 1 | |
| 8 | Woodruff key | 422253 | 1 | |
| 9 | Oil deflector | 420172 | 1 | |
| 10 | Bearing spindle | 422766 | 1 | (467463) |
| 11 | Idler gear | 467461 | 1 | MB20A MO-1470/XXXX. |
| 12 | Thrust washer | 467529 | 1 | MO-608/XXXX. |
| 13 | Bearing shield | 467528 | 1 | MO-608/XXXX. |
| 14 | Screw | 422316 | 3 | |
| 15 | Disc spring | 942180 | 3 | MO-56861/XXXXX |
| 16 | Gear | 421079 | 1 | |
| 17 | Pin | 950588 | 1 | |
| 18 | Washer | 467055 | 3 | |
| 19 | Lock washer | 467052 | 1 | |
| 20 | Hexagon screw | 940128 | 3 | |
| 21 | Gear | 421079 | 1 | |
| 24 | Cap | 896632 | 1 | |
| 25 | Sealing ring | 942083 | 1 | |
| 26 | Sealing ring | 471055 | 1 | |
| 27 | Gasket | 421061 | 1 | |
| 28 | Hexagon screw | 955530 | 1 | |
| 28 | Hexagon screw | 955532 | 6 | Only for thermoswitch control 837500,837501., L=95mm |
| 29 | Hexagon screw | 940186 | 10 | |
| 29 | Hexagon screw | 955526 | 4 | MD70BK spec 867116 MOXXXX/9685- |
| 30 | Spring washer | 941907 | 21 | |
| 31 | Cover | 420183 | 1 | |
| 32 | Seal | 420213 | 1 | |
| 33 | Hexagon screw | 940115 | 2 | |
| 34 | Spring washer | 942336 | 2 | |
| 35 | Washer | 940097 | 2 | |
| 36 | Cover | 420183 | 1 | |
| 37 | Gasket | 862591 | 1 | (820751) |
| 38 | Hexagon screw | 940115 | 2 | |
| 39 | Spring washer | 942336 | 2 | |
| 40 | Hexagon screw | 955525 | 5 | |
| 41 | Tab washer | 941571 | 5 | |
| 44 | Sealing cover | 823110 | 1 | |
| 45 | O-ring | 1664473 | 1 | (925254) |
| 46 | Stud | 953257 | 2 | L = 35 MM |
| 47 | Spring washer | 942336 | 2 | |
| 48 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| Item | Part Name | Part No. |
| 24 | Cap 896632 | 896632 |
| Details | |
| Engine model | D70B D70CHC D70CRC TD70B TD70CHC TD70CRC |
| Application | Timing Gear Casing and Gear: A Timing Gear Casing and Gear: B Timing Gear Casing and Gear: C Timing Gear Casing and Gear: D Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B |
