Cap nut 465961

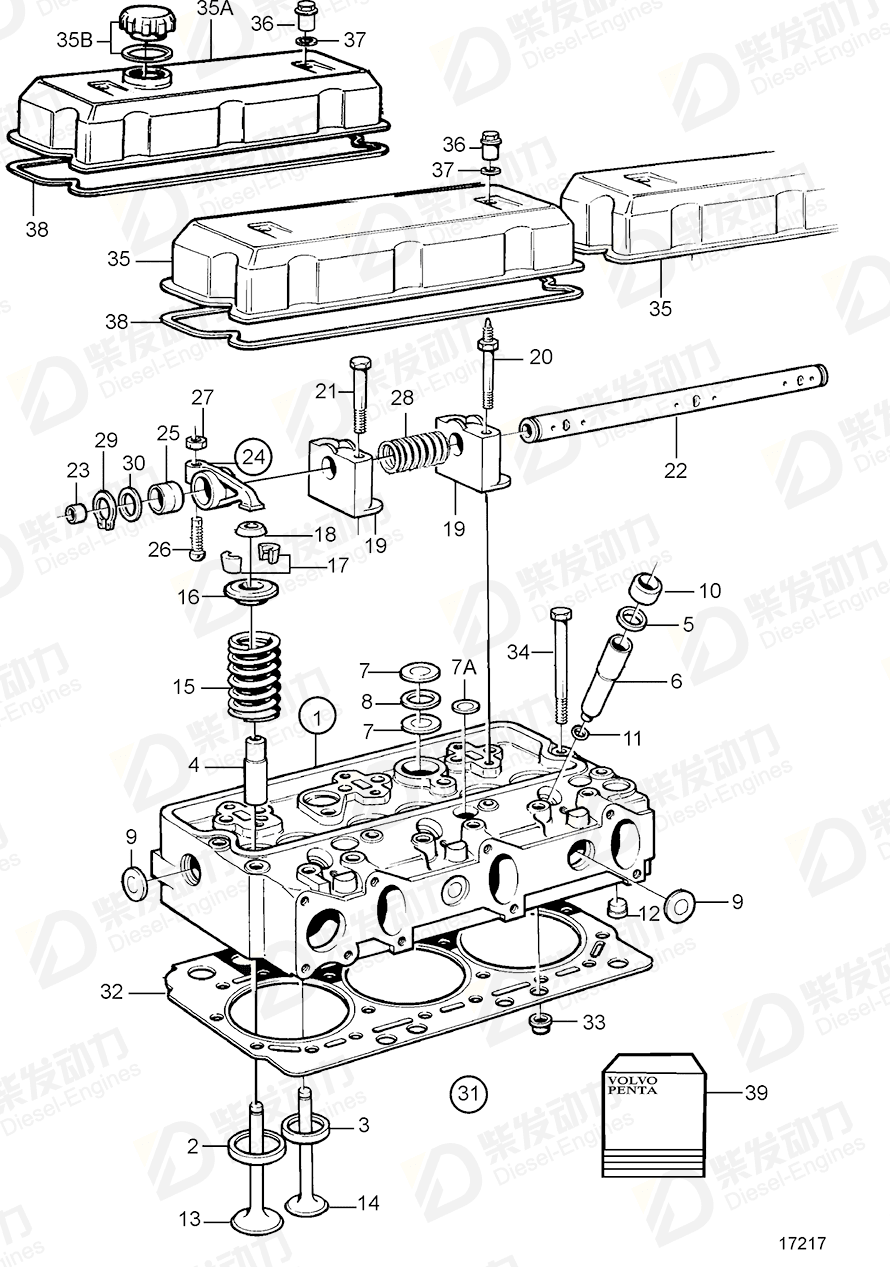

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803099 | 2 | SN-2061157454, (465780) |
| 2 | Valve seat | 465158 | 6 | Std D |
| 2 | Valve seat | 465238 | 6 | 0.20mm o.s |
| 3 | Valve seat | 465155 | 6 | Std D |
| 3 | Valve seat | 465236 | 6 | 0.20mm o.s |
| 4 | Valve guide | 477877 | 12 | (477792) |
| 5 | Sealing ring | 466405 | 6 | |
| 7 | Expansion plug | 477026 | 8 | (192426) |
| 8 | Gasket | 947626 | 4 | |
| 9 | Expansion plug | 477024 | 8 | (192211) |
| 10 | Ring | 466420 | 6 | |
| 11 | O-ring | 466922 | 6 | (944124) |
| 12 | Jet | 465420 | 4 | |
| 13 | Inlet valve | 3825723 | 6 | (420553) |
| 14 | Exhaust valve | 8192143 | 6 | (465549) |
| 15 | Valve spring | 465233 | 12 | |
| 16 | Valve spring washer | 465550 | 12 | |
| 17 | Valve cotter | 1677875 | 24 | |
| 18 | Ring | 465551 | 12 | |
| 19 | Bearing bracket | 1665204 | 6 | |
| 20 | Stud | 471512 | 4 | |
| 21 | Flange nut | 471513 | 8 | |
| 22 | Rocker arm shaft | 465790 | 2 | |
| 23 | Cap plug | 955083 | 4 | |
| 24 | Rocker arm | 420129 | 6 | |
| 24 | Rocker arm | 420132 | 6 | |
| 25 | Bushing | 420125 | 12 | |
| 26 | Ball stud | 422993 | 12 | |
| 27 | Hexagon nut | 940175 | 12 | |
| 28 | Compression spring | 411139 | 4 | |
| 29 | Retaining ring | 914456 | 4 | |
| 30 | Shim | 400722 | 4 | |
| 31 | Cylinder head gasket | 276821 | 2 | |
| 33 | Sealing ring | 422413 | 2 | D=11mm |
| 33 | Sealing ring | 465784 | 12 | |
| 33 | Sealing ring | 466421 | 16 | D=16mm |
| 34 | Flange screw | 465840 | 40 | |
| 35 | Valve cover | 465951 | 2 | |
| 36 | Cap nut | 465961 | 4 | |
| 37 | Sealing ring | 471856 | 4 | |
| 38 | Gasket | 465952 | 2 | |
| 39 | Sleeve | 877094 | 6 | (466404) |
| 7A | Expansion plug | 477026 | 6 | (192426) |
| 35A | Valve cover | 465950 | 1 | Alt |
| 35B | Cover | 420178 | 1 |
| Item | Part Name | Part No. |
| 36 | Cap nut 465961 | 465961 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD610G, TWD610G TD610M TD610V, TWD610V TD61A, TD61AW TD630ME, TWD630ME TD630VE TD640VE TD710G, TWD710G TD71A TD730ME TD730VE TID71A TWD610P TWD630VE TWD710P TWD710V TWD730ME, TWD731ME TWD731VE TWD740VE |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C |
| Specification | |
| Descriptions | For low-mounted turbo. |
Related Products
Tags: Cap nut, Volvo Penta, 465961
