Cap plug 20412733

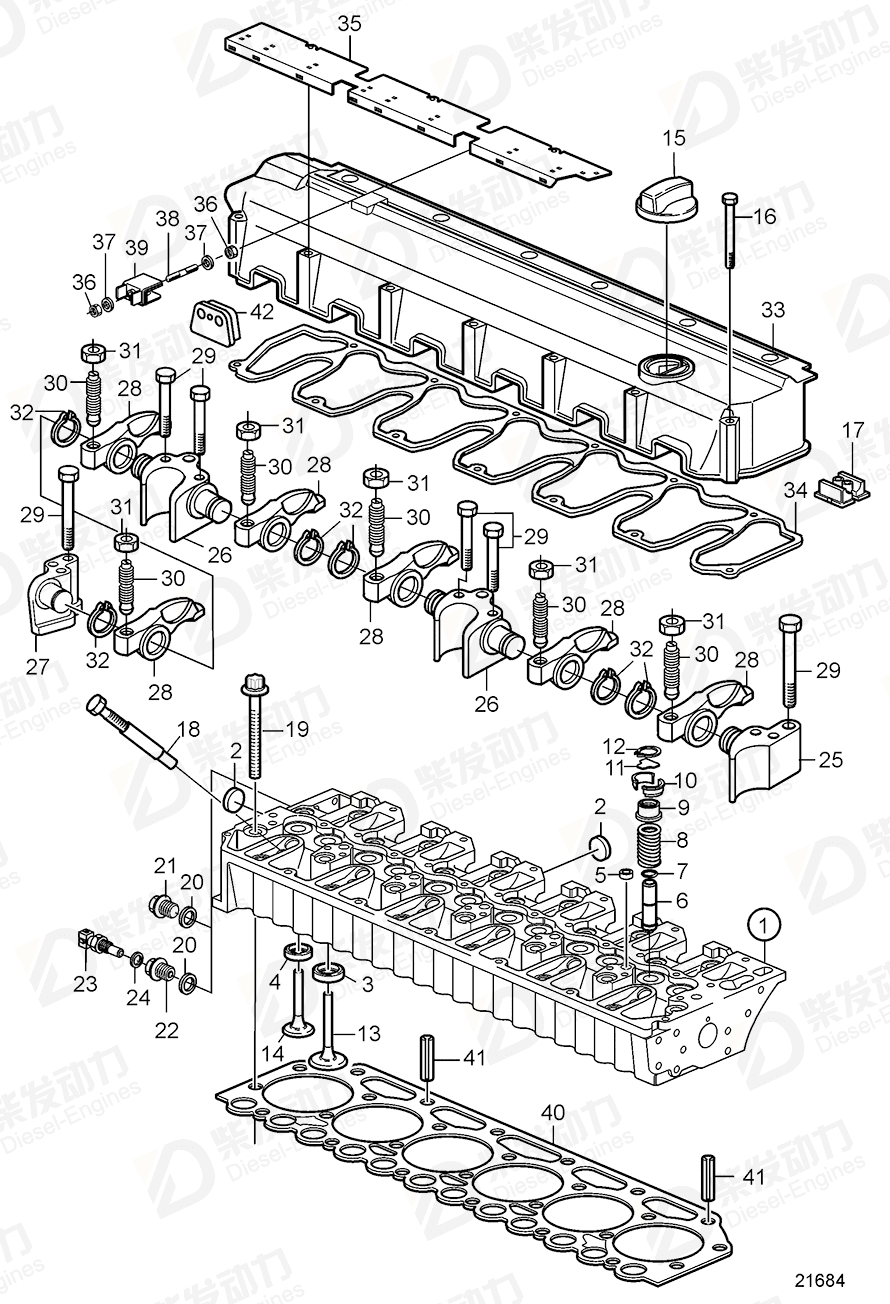

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803965 | 1 | (20735837) |
| 2 | Cap plug | 20412745 | 5 | |
| 3 | Valve seat, intake | 20459962 | 6 | Std=49,09mm, Std |
| 3 | Valve seat, intake | 20580079 | 6 | O.S=0,20mm |
| 3 | Valve seat, intake | 20580080 | 6 | O.S=0,40mm |
| 4 | Valve seat, exhaust | 20459963 | 6 | Std=43,60mm, Std |
| 4 | Valve seat, exhaust | 20580082 | 6 | O.S=0,20mm |
| 4 | Valve seat, exhaust | 20580083 | 6 | O.S=0,40mm |
| 5 | Cap plug | 20412733 | 5 | |
| 6 | Valve guide | 20405897 | 12 | Std=15,00mm, Std |
| 6 | Valve guide | 20580074 | 12 | O.S=0,25mm |
| 6 | Valve guide | 20580078 | 12 | O.S=0,50mm |
| 7 | O-ring | 976013 | 12 | |
| 8 | Compression spring | 11700347 | 12 | |
| 9 | Valve spring | 20758484 | 12 | |
| 10 | Collet | 11700345 | 24 | |
| 11 | Thrust washer | 20776829 | 12 | |
| 12 | Snap ring | 20776819 | 12 | |
| 13 | Inlet valve, intake | 20758481 | 6 | |
| 14 | Exhaust valve, exhaust | 20755883 | 6 | |
| 15 | Filler cap | 20412589 | 1 | |
| 16 | Flange screw | 20412601 | 13 | |
| 17 | Cap | 20412600 | 1 | |
| 18 | Plug | 20405895 | 6 | |
| 19 | Six point screw | 11700334 | 26 | |
| 20 | Gasket | 947628 | 2 | |
| 21 | Plug | 20464451 | 1 | |
| 22 | Adapter | 20450683 | 1 | EDC IV |
| 23 | Sensor, coolant temperature | 20513340 | 1 | |
| 24 | Gasket | 969011 | 1 | |
| 25 | Bracket | 11700367 | 1 | |
| 26 | Bracket | 11700368 | 2 | |
| 27 | Bracket | 11700369 | 1 | |
| 28 | Rocker arm | 20585663 | 12 | |
| 29 | Flange screw | 20405723 | 14 | |
| 30 | Adjusting screw | 20405524 | 12 | |
| 31 | Hexagon nut | 11700373 | 12 | |
| 32 | Snap ring | 20549891 | 12 | |
| 33 | Valve cover | 20412599 | 1 | When replacing the valve cover gasket is only earlier prod. in combination with earlier prod. valve cover permitted., SN-01098545 |
| 33 | Valve cover | 20725338 | 1 | Only for 20725338, SN01098546- |
| 34 | Gasket | 20412597 | 1 | When replacing the valve cover gasket is only earlier prod. in combination with earlier prod. valve cover permitted., SN-01098545 |
| 34 | Gasket | 20725316 | 1 | Only for 20725338, SN01098546- |
| 35 | Cover plate | 20450954 | 1 | EDC IV |
| 36 | Hexagon nut | 20460344 | 2 | EDC IV |
| 37 | Washer | 20460345 | 2 | EDC IV |
| 38 | Shoulder screw | 20580716 | 1 | EDC IV |
| 39 | Clamp | 20450956 | 1 | EDC IV |
| 40 | Cylinder head gasket | 20405900 | 1 | TH=1,54mm, One dot |
| 40 | Cylinder head gasket | 20405901 | 1 | TH=1,64mm, Two dots |
| 40 | Cylinder head gasket | 20405902 | 1 | TH=1,74mm, Three dots |
| 41 | Spring pin | 20405521 | 2 | |
| 42 | Seal | 20405886 | 6 |
| Item | Part Name | Part No. |
| 5 | Cap plug 20412733 | 20412733 |
| Details | |
| Engine model | TAD520GE TAD520VE TAD532GE TAD550GE, TAD551GE TAD560VE, TAD561VE TAD620VE TAD650VE TAD660VE TAD720GE TAD720GE, TAD730GE, TAD731GE TAD720VE, TAD721VE TAD721GE, TAD722GE TAD722VE TAD732GE, TAD733GE TAD750GE, TAD751GE TAD750VE TAD760VE TD420VE, TAD420VE TD520GE, TAD530GE, TAD531GE TD520VE TD720GE TD720VE |
| Application | Cylinder Head Cylinder Head SN-10128117 Cylinder Head SN-10155363 Cylinder Head SN10128118- Cylinder Head SN10155364- |
