Cap plug 20412745

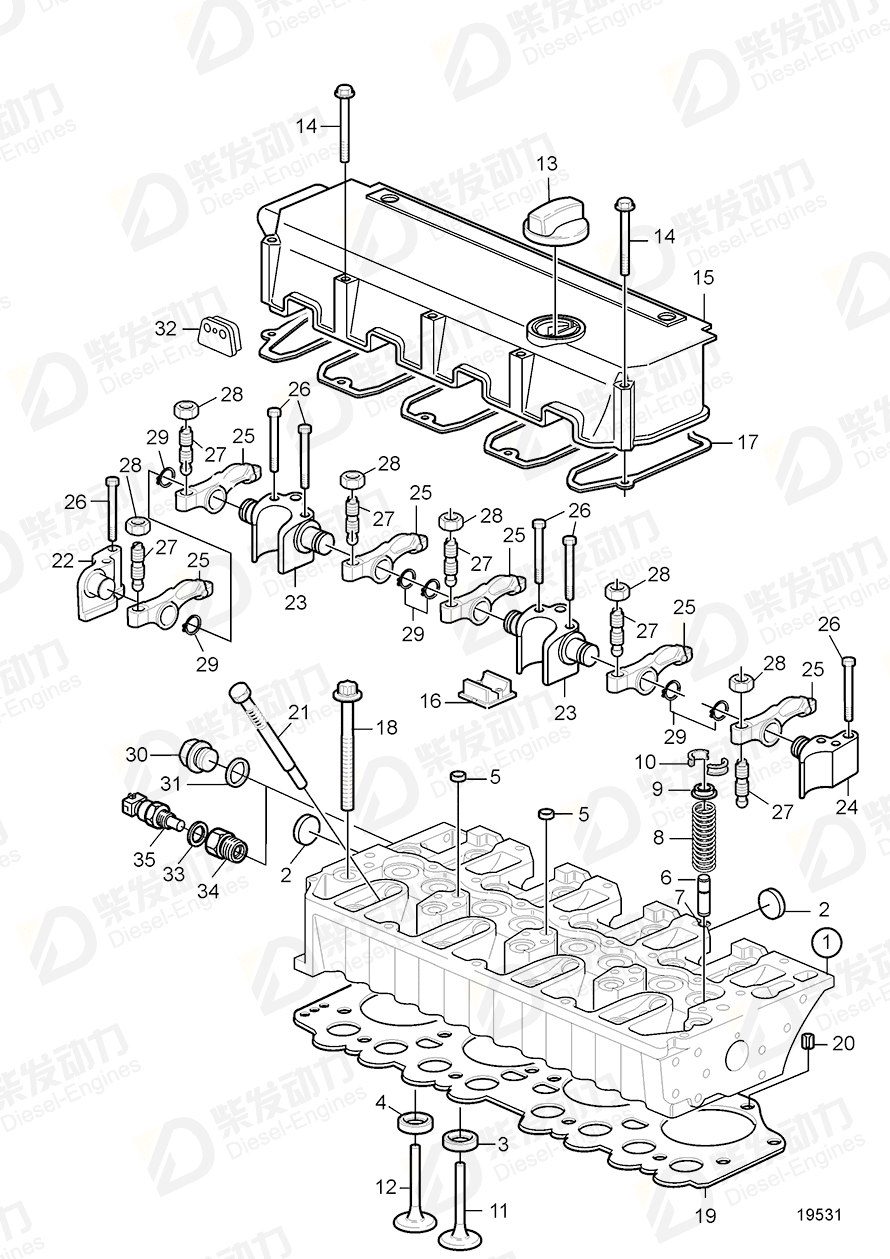

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803988 | 1 | (20405500) |
| 2 | Cap plug | 20412745 | 3 | |
| 3 | Valve seat, intake | 20459962 | 4 | Std=49,09mm, Std |
| 4 | Valve seat, exhaust | 20459963 | 4 | Std=43,60mm, Std |
| 5 | Cap plug | 20412733 | 3 | |
| 6 | Valve guide | 20405897 | 8 | Std=15,00mm, Std |
| 7 | O-ring | 976013 | 8 | |
| 8 | Compression spring | 11700347 | 8 | |
| 9 | Valve spring washer | 11700346 | 8 | |
| 10 | Collet | 11700345 | 16 | |
| 11 | Inlet valve, intake | 20714469 | 4 | (20572597) |
| 12 | Exhaust valve, exhaust | 20565912 | 4 | |
| 13 | Filler cap | 20412589 | 1 | |
| 14 | Flange screw | 20412601 | 9 | |
| 15 | Valve cover | 20412587 | 1 | Only with gasket 20412588, SN-0010555383 |
| 15 | Valve cover | 20725337 | 1 | Only with gasket 20725315, SN0010555384- |
| 16 | Cap | 20412590 | 1 | |
| 17 | Plane gasket | 20412588 | 1 | Gasket only for valve cover: 20412587, SN-0010555383 |
| 17 | Gasket | 20725315 | 1 | Metal gasket only for valve cover: 20725337, SN0010555384- |
| 18 | Six point screw | 11700334 | 18 | |
| 19 | Cylinder head gasket | 11700335 | 1 | TH=1,4mm, One dot |
| 19 | Cylinder head gasket | 11700336 | 1 | TH=1,5mm, Two dots |
| 19 | Cylinder head gasket | 11700337 | 1 | TH=1,6mm, Three dots |
| 20 | Spring pin | 20405521 | 2 | |
| 21 | Plug | 20405895 | 4 | |
| 22 | Bracket | 11700369 | 1 | |
| 23 | Bracket | 11700368 | 3 | |
| 24 | Bracket | 11700367 | 1 | |
| 25 | Rocker arm | 11700370 | 8 | |
| 26 | Screw | 11700374 | 10 | |
| 27 | Adjusting screw | 20405524 | 8 | |
| 28 | Hexagon nut | 11700373 | 8 | |
| 29 | Snap ring | 945495 | 8 | |
| 30 | Plug | 20464451 | 1 | |
| 31 | Gasket | 947628 | 1 | |
| 32 | Sealing ring | 888770 | 4 | |
| 33 | Gasket | 993784 | 1 | |
| 34 | Adapter | 3587775 | 1 | 35thermo monitor将已选物品添加至购物车 |
| Item | Part Name | Part No. |
| 2 | Cap plug 20412745 | 20412745 |
| Details | |
| Engine model | TAD520GE TAD520VE TAD530GE, TAD531GE TAD532GE TAD550GE, TAD551GE TAD620VE TAD650VE TAD660VE TAD720GE TAD720GE, TAD730GE, TAD731GE TAD720VE, TAD721VE TAD721GE, TAD722GE TAD722VE TAD730GE, TAD731GE TAD732GE, TAD733GE TD420VE, TAD420VE TD520GE TD520GE, TAD530GE, TAD531GE TD520VE TD720GE TD720GE, TAD720GE TD720VE |
| Application | Cylinder Block Cylinder Block. Stage 2, Tier 2 Cylinder Head Cylinder Head SN-10128117 Cylinder Head SN-10155363 Cylinder Head SN10128118- Cylinder Head SN10155364- |
| Specification | |
| Descriptions | A36 |
