Cap plug 20834024

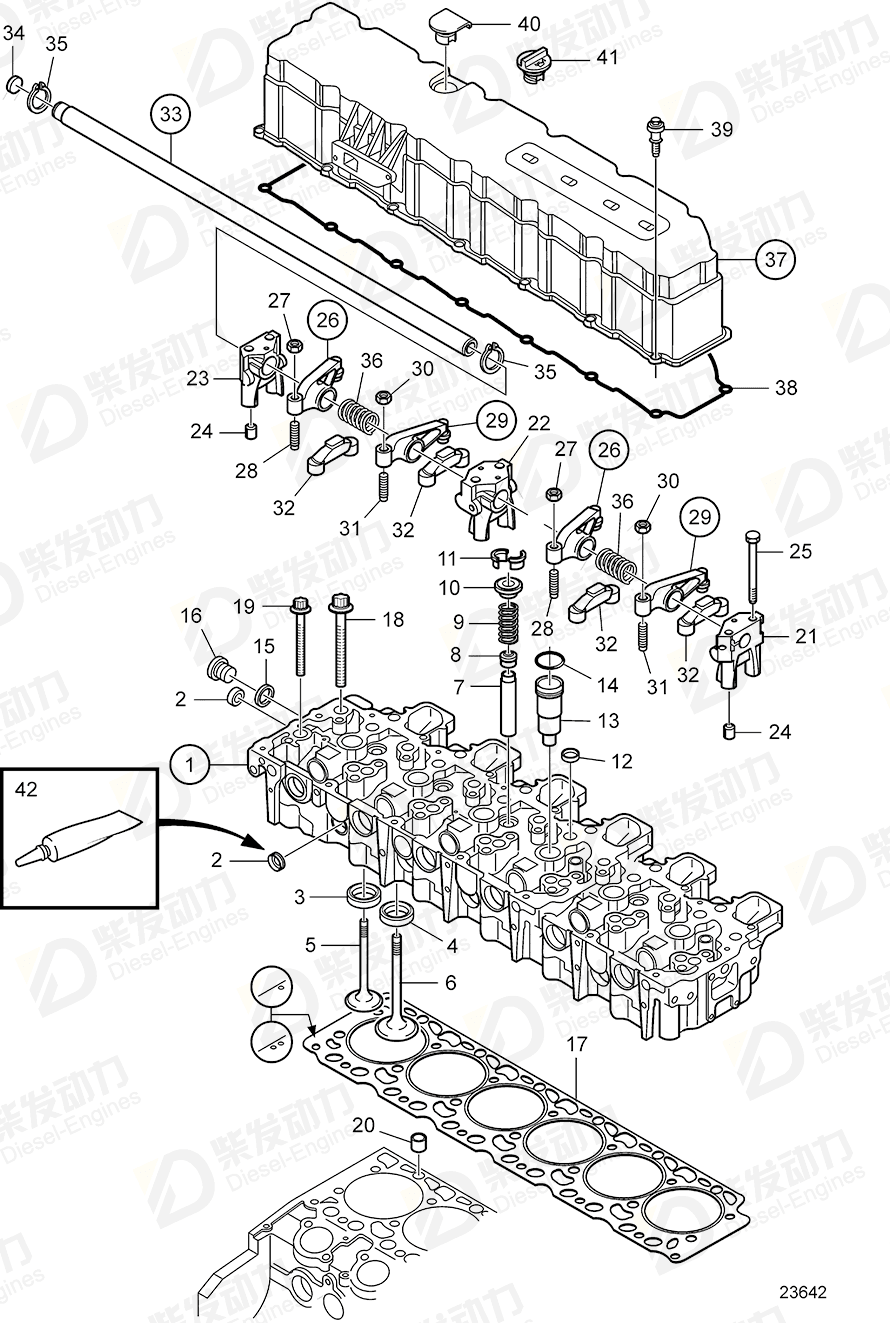

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head, exch | 3801161 | 1 | Replaced by 3801237 |
| 1 | Cylinder head, exch | 3801237 | 1 | Replaced by 3801471 |
| 1 | Cylinder head | 3801471 | 1 | Replaced by 3801588 |
| 1 | Cylinder head, exch | 3801588 | 1 | |
| 2 | Cap plug | 20834024 | 6 | |
| 3 | Valve seat, exhaust | 20833930 | 12 | Std |
| 4 | Valve seat, intake | 21087443 | 12 | Std |
| 5 | Inlet valve | 20833932 | 12 | |
| 6 | Exhaust valve | 20833936 | 12 | |
| 7 | Valve guide | 20789674 | 24 | Std, Replaced by 21705499 |
| 7 | Valve guide | 21705499 | 24 | Std, Replaced by 22494872 |
| 7 | Valve guide | 22494872 | 24 | Std |
| 8 | Valve stem seal | 20459855 | 24 | |
| 9 | Compression spring | 20859646 | 24 | |
| 10 | Cap | 20788860 | 24 | |
| 11 | Valve cotter | 20459857 | 48 | |
| 12 | Cap plug | 20799312 | 6 | |
| 13 | Sleeve | 20903104 | 6 | |
| 14 | O-ring | 20903092 | 6 | |
| 15 | Gasket | 969011 | 1 | |
| 16 | Plug | 20459941 | 1 | |
| 17 | Cylinder head gasket | 20833938 | 1 | TH=1,15mm, One dot |
| 17 | Cylinder head gasket | 20833939 | 1 | TH=1.25mm, Two dots |
| 18 | Six point screw | 20793002 | 20 | L=170mm |
| 19 | Six point screw | 20792992 | 6 | L=134mm |
| 20 | Spring pin | 20799601 | 2 | |
| 21 | Bracket | 20858516 | 1 | |
| 22 | Bracket | 20858519 | 5 | |
| 23 | Bracket | 20858513 | 1 | |
| 24 | Spring pin | 20799596 | 2 | |
| 25 | Flange screw | 984744 | 14 | |
| 26 | Rocker arm, intake | 20861386 | 6 | |
| 26 | Rocker arm, intake | 21062723 | 6 | (20861386) |
| 27 | Hexagon nut | 11700373 | 6 | |
| 28 | Adjusting screw | 20861870 | 6 | |
| 29 | Rocker arm, exhaust | 20861407 | 6 | |
| 29 | Rocker arm, exhaust | 21062734 | 6 | (20861407) |
| 30 | Hexagon nut | 11700373 | 6 | |
| 31 | Adjusting screw | 20861870 | 6 | |
| 32 | Bridge, valve bridge | 20861884 | 12 | |
| 33 | Rocker arm shaft | 20861310 | 1 | |
| 33 | Rocker arm shaft | 21160803 | 1 | (20861310) |
| 34 | Cap plug | 20799622 | 2 | |
| 35 | Snap ring | 20549891 | 2 | |
| 36 | Compression spring | 20800018 | 6 | |
| 37 | Valve cover | 20898149 | 1 | |
| 37 | Valve cover | 21002531 | 1 | |
| 38 | Gasket | 20788793 | 1 | |
| 39 | Screw | 20833901 | 15 | |
| 40 | Cover | 20859656 | 1 | |
| 41 | Filler cap | 20902400 | 1 | |
| 42 | Locking fluid | 1161075 | 1 |
| Item | Part Name | Part No. |
| 2 | Cap plug 20834024 | 20834024 |
| Details | |
| Engine model | TAD560VE, TAD561VE TAD734GE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Cylinder Head |
