Cap plug 948812

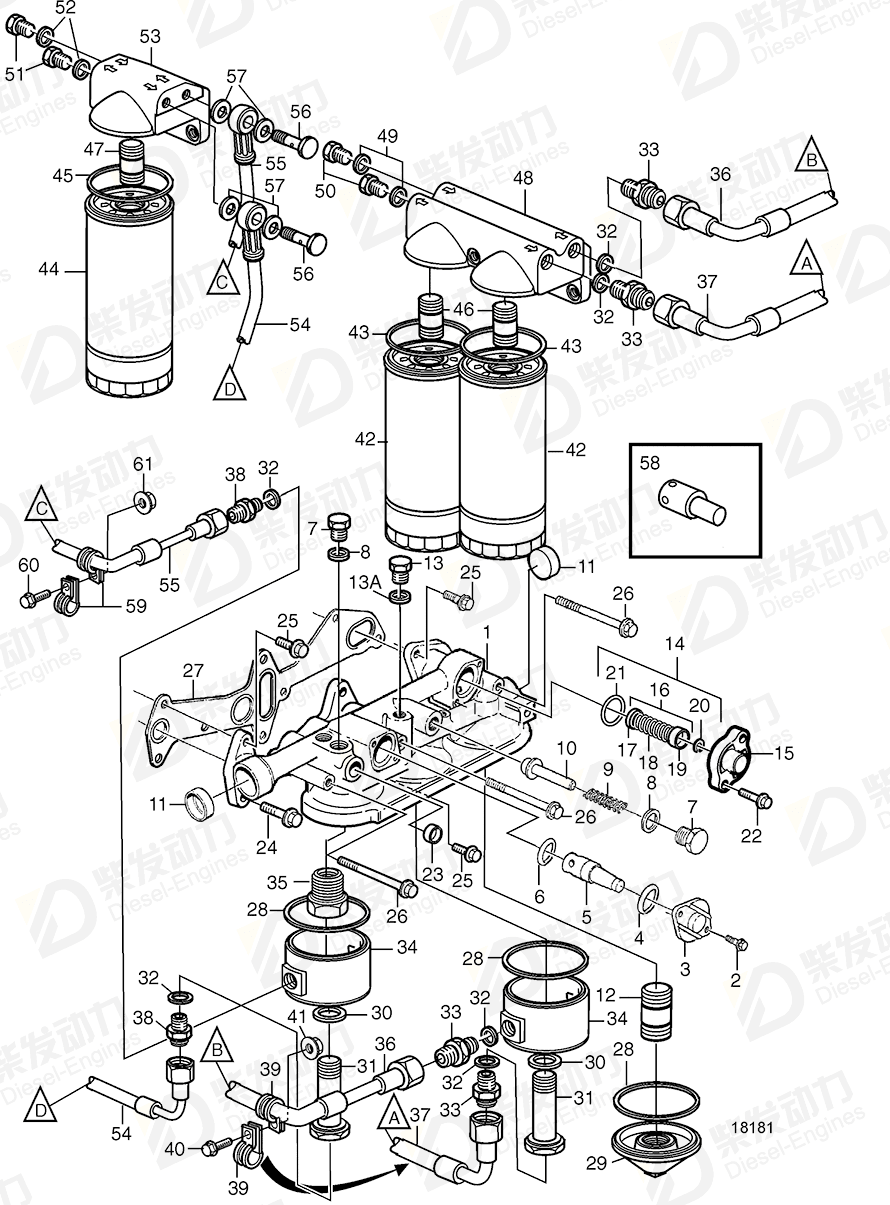

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 8170274 | 1 | |
| 2 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 3 | Cover | 471648 | 1 | |
| 4 | O-ring | 949659 | 1 | |
| 5 | Piston cooling valve | 471646 | 1 | |
| 6 | Sealing ring | 469846 | 1 | |
| 7 | Plug | 471598 | 2 | |
| 8 | Gasket | 947627 | 2 | |
| 9 | Compression spring | 3830138 | 1 | |
| 10 | Valve cone | 471085 | 1 | |
| 11 | Cap plug | 948812 | 2 | |
| 12 | Nipple | 466623 | 1 | |
| 13 | Plug | 960632 | 1 | |
| 14 | Relief valve | 3169689 | 1 | |
| 15 | Cover | 3184806 | 1 | |
| 20 | Retaining ring | 955964 | 1 | |
| 21 | O-ring | 949659 | 1 | |
| 22 | Flange screw | 947542 | 2 | |
| 23 | Cap plug | 946778 | 1 | |
| 24 | Flange screw | 947760 | 1 | M8x40mm |
| 25 | Flange screw | 945444 | 5 | |
| 26 | Flange screw | 969225 | 3 | L=120mm |
| 27 | Gasket | 8170534 | 1 | |
| 28 | O-ring | 948981 | 3 | |
| 29 | Cover | 3812511 | 1 | (3828030) |
| 30 | O-ring | 944126 | 2 | |
| 31 | Nipple | 3827458 | 2 | |
| 32 | Gasket | 947627 | 6 | |
| 33 | Nipple | 982254 | 4 | |
| 34 | Cover | 3827459 | 2 | |
| 35 | Nipple | 3832512 | 1 | |
| 36 | Oil hose | 3830932 | 1 | |
| 37 | Oil hose | 3830882 | 1 | |
| 38 | Nipple | 982981 | 2 | |
| 39 | Clamp | 945081 | 4 | |
| 40 | Flange screw | 947760 | 2 | M8x40mm |
| 41 | Flange nut | 945408 | 2 | |
| 42 | Oil filter | 466634 | 2 | |
| 44 | Oil filter, by-pass | 477556 | 1 | |
| 46 | Nipple | 466623 | 2 | |
| 47 | Nipple | 469904 | 1 | |
| 48 | Oil filter housing | 11031901 | 1 | |
| 49 | Gasket | 947627 | 2 | |
| 50 | Plug | 960634 | 2 | |
| 51 | Plug | 960630 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 52 | Gasket | 969011 | 2 | |
| 53 | Oil filter housing | 11127104 | 1 | |
| 54 | Hose | 3832697 | 1 | |
| 55 | Hose | 3832698 | 1 | |
| 56 | Hollow screw | 25167 | 2 | |
| 57 | Gasket | 969011 | 4 | |
| 59 | Clamp | 949747 | 4 | |
| 60 | Flange screw | 946671 | 3 | |
| 61 | Flange nut | 945408 | 3 | |
| 13A | Gasket | 11998 | 1 |
| Item | Part Name | Part No. |
| 11 | Cap plug 948812 | 948812 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE |
| Application | Oil Filter Housing and Oil Filter Oil Filter, Alt. Location |
