Cap plug 955082

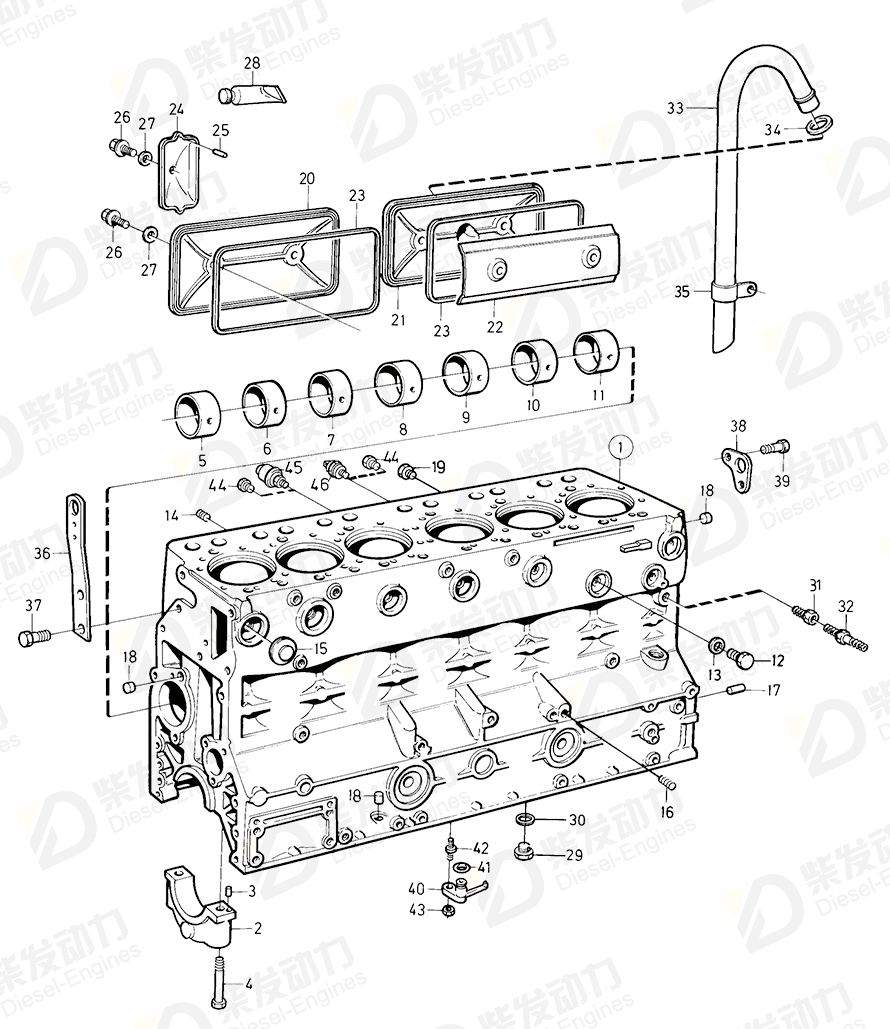

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 477930 | 1 | Repl by 1pc cylinder block 477990, 1pc oil pressure pipe (cylinder block-fuel injection pump) 477986, 1pc hollow screw 969299 and 2pcs gasket 11994. |
| 1 | Cylinder block | 477990 | 1 | |
| 1 | Short block | 3801054 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 465899 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 1 | |
| 13 | Gasket | 469328 | 1 | |
| 14 | Plug | 422369 | 2 | |
| 15 | Expansion plug | 968955 | 6 | (941256) |
| 16 | Plug | 968145 | 1 | (952357) |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 6 | |
| 19 | Plug | 479976 | 1 | (946559) |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 471858 | 1 | |
| 23 | Gasket | 421121 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Sealant | 1161231 | 1 | 304ml |
| 28 | Sealant | 1161277 | 1 | 20g |
| 29 | Plug | 966146 | 1 | |
| 30 | Gasket | 947629 | 1 | |
| 31 | Nipple | 479954 | 1 | (190130) |
| 32 | Shut-off cock | 947893 | 1 | |
| 33 | Tube | 471857 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Clamp | 968124 | 1 | |
| 37 | Flange screw | 965191 | 1 | |
| 37 | Flange screw | 965194 | 1 | |
| 39 | Flange screw | 965191 | 2 | |
| 40 | Piston cooling jet | 420628 | 6 | |
| 41 | Sealing ring | 466874 | 6 | |
| 42 | Stud | 471596 | 6 | |
| 43 | Lock nut | 948570 | 6 | |
| 44 | Plug | 479979 | 1 |
| Item | Part Name | Part No. |
| 18 | Cap plug 955082 | 955082 |
| Details | |
| Engine model | D100A D100BHC D100BRC D120A D42A D70B D70CHC D70CRC DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P, TWD1210P, TWD1211P TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE TAD730G TAD730P TAD730V TD100AHC TD100ARC TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030VE, TAD1030V, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121CHC, TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GP-87 TD30A TD40A TD45B TD60A TD60B TD60D TD60D-83 TD610G, TWD610G TD610M TD610V TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD630ME TD630VE TD640VE TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G, TWD710G TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID60D TID60DG TID61AG TID70G TID71A, TID71AG, TID71AP TWD1030ME TWD1210G, TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1652GE, TWD1653GE TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block and Flywheel Housing Cylinder Block and Related Part: A Cylinder Block and Related Part: B CYLINDER BLOCK AND RELATED PARTS Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block, Earlier Production Cylinder Block: 422960 Cylinder Block: 479650 Cylinder Block: 479752 CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- CYLINDER HEAD CYLINDER HEAD: A CYLINDER HEAD: B CYLINDER HEAD: C CYLINDER HEAD: D Lubricating System, Standard Model: B Oil Sump With Oil Filling. Aluminum Valve Mechanism Valve Mechanism for VCB Valve Mechanism, Control Valve Valve Mechanism, Control Valve, SN-7011339111 Valve Mechanism, Control Valve, SN7011339112- Valve Mechanism,internal EGR Valve Mechanism. Standard |
| Specification | |
| Descriptions | D = 12.5 MM D=12,5 D=12,5mm D=12.5mm For 420700-7, 420970-6 For 420990-4 For 471400, 477910 For 477990 Spec. 867821 Spec. 9882, 9961. |
