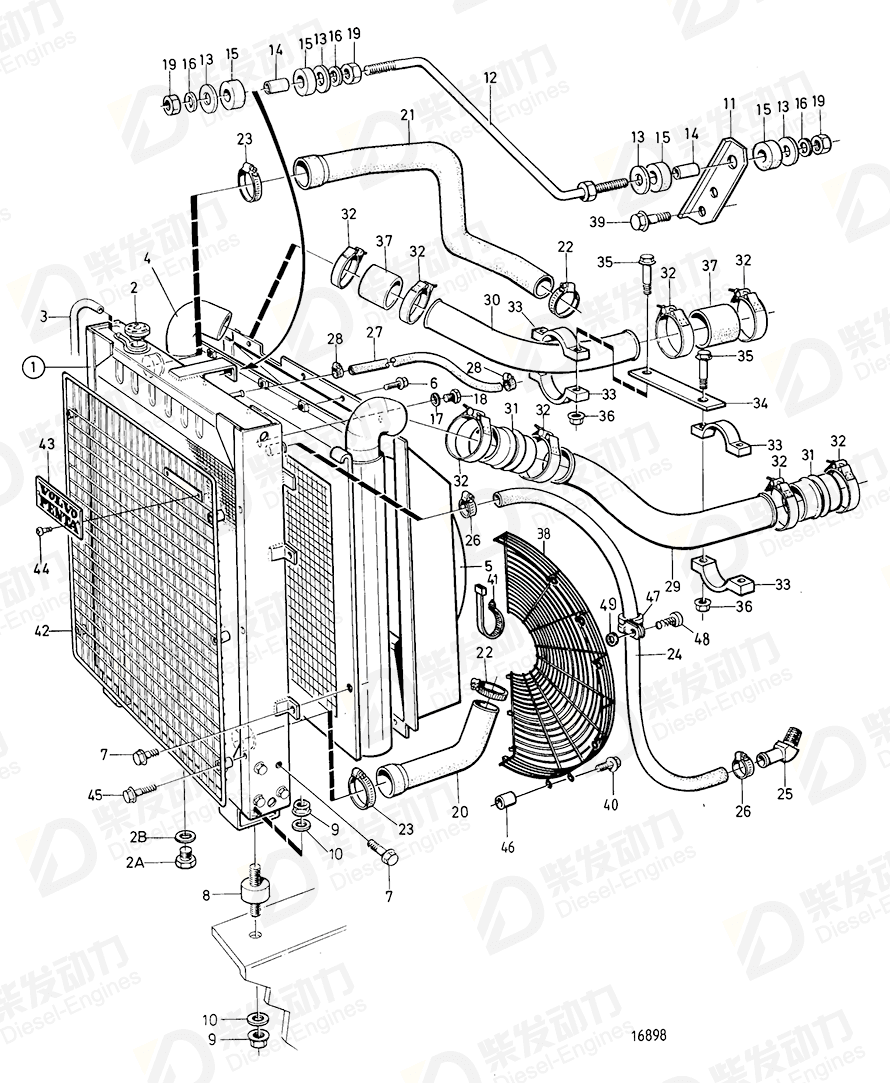

Charge air cooler 866093
| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866092 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Hose | 192618 | 1 | L=1400mm |
| 4 | Charge air cooler | 866093 | 1 | |
| 5 | Fan shroud | 3825748 | 1 | SNXXXXXXXXXX/277520- |
| 6 | Flange screw | 973924 | 8 | |
| 7 | Flange screw | 946173 | 4 | |
| 8 | Rubber cushion | 849170 | 2 | |
| 9 | Hexagon nut | 955850 | 4 | |
| 10 | Spring washer | 940280 | 4 | |
| 11 | Attaching plate | 866109 | 1 | SN-2071157532 |
| 12 | Radiator stay | 865158 | 1 | |
| 13 | Washer | 191940 | 4 | |
| 14 | Spacer sleeve | 252202 | 2 | |
| 15 | Rubber bushing | 866857 | 4 | |
| 16 | Spring washer | 941912 | 3 | |
| 17 | Gasket | 11994 | 1 | |
| 18 | Plug | 947660 | 1 | (836268) |
| 19 | Hexagon nut | 955793 | 3 | |
| 20 | Hose | 865281 | 1 | |
| 21 | Hose | 865280 | 1 | |
| 22 | Hose clamp | 943479 | 2 | |
| 23 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 24 | Rubber hose | 944386 | 1 | |
| 25 | Elbow nipple | 942649 | 1 | |
| 26 | Hose clamp | 994560 | 2 | |
| 27 | Rubber hose | 943366 | 1 | L=600mm late type |
| 28 | Hose clamp | 994556 | 2 | |
| 29 | Charge air pipe | 865164 | 1 | |
| 2A | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 2B | Gasket | 969011 | 1 | |
| 30 | Charge air pipe | 865165 | 1 | |
| 31 | Charge air hose | 865127 | 2 | |
| 32 | Hose clamp | 865575 | 8 | |
| 33 | Anchorage | 865317 | 4 | |
| 35 | Flange screw | 965188 | 4 | |
| 36 | Flange lock nut | 971098 | 4 | |
| 37 | Charge air hose | 865127 | 2 | |
| 38 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 39 | Flange screw | 946173 | 2 | |
| 40 | Flange screw | 946440 | 12 | |
| 41 | Cable tie | 948211 | 8 | |
| 42 | Radiator protector | 865159 | 1 | |
| 43 | Emblem | 846118 | 1 | |
| 44 | Screw | 941651 | 2 | |
| 45 | Flange screw | 947760 | 6 | M8x40mm |
| 46 | Washer | 191172 | 12 | Spec.867054, 867221. |
| 47 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 48 | Six point socket scr | 986214 | 1 | |
| 49 | Lock nut | 963105 | 1 |
| Item | Part Name | Part No. |
| 4 | Charge air cooler 866093 | 866093 |
| Details | |
| Engine model | TAD1030G TAD1030GE TAD1030P TAD1030V TAD1031GE TAD1032GE TAD730G TAD730P TAD730V |
| Application | Radiator Radiator and Fan Radiator and Fan: A Radiator and Fan: B |
