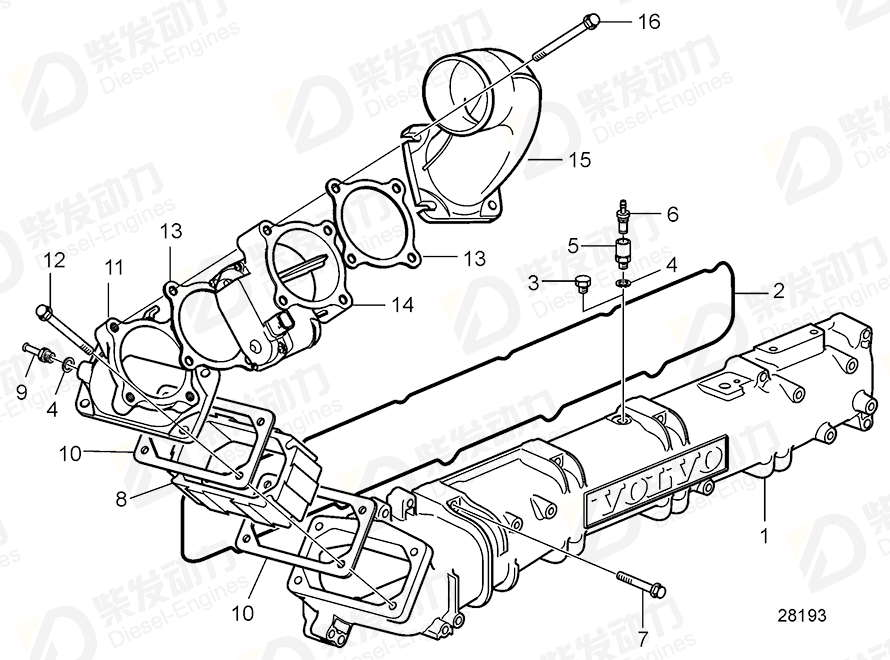

Charge air pipe 21407282
| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 20506150 | 1 | Replaced by 21217822 |
| 2 | Seal | 20805850 | 1 | |
| 3 | Plug | 960628 | 1 | |
| 4 | Gasket | 947281 | 2 | |
| 5 | Nipple | 968694 | 1 | |
| 6 | Nipple | 976444 | 1 | |
| 7 | Flange screw | 984740 | 12 | |
| 8 | Spacer | 1676806 | 1 | |
| 9 | Hose nipple | 945713 | 1 | |
| 10 | Gasket | 477314 | 2 | |
| 11 | Charge air pipe | 21407282 | 1 | |
| 12 | Flange screw | 984744 | 4 | |
| 13 | Gasket | 21313833 | 2 | |
| 14 | Throttle | 22123557 | 1 | |
| 15 | Charge air pipe | 21407280 | 1 | |
| 16 | Hexagon screw | 955305 | 4 |
| Item | Part Name | Part No. |
| 11 | Charge air pipe 21407282 | 21407282 |
| Details | |
| Engine model | TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE |
| Application | Inlet Manifold, Pushing Fan |
