Charge air pipe 21664647

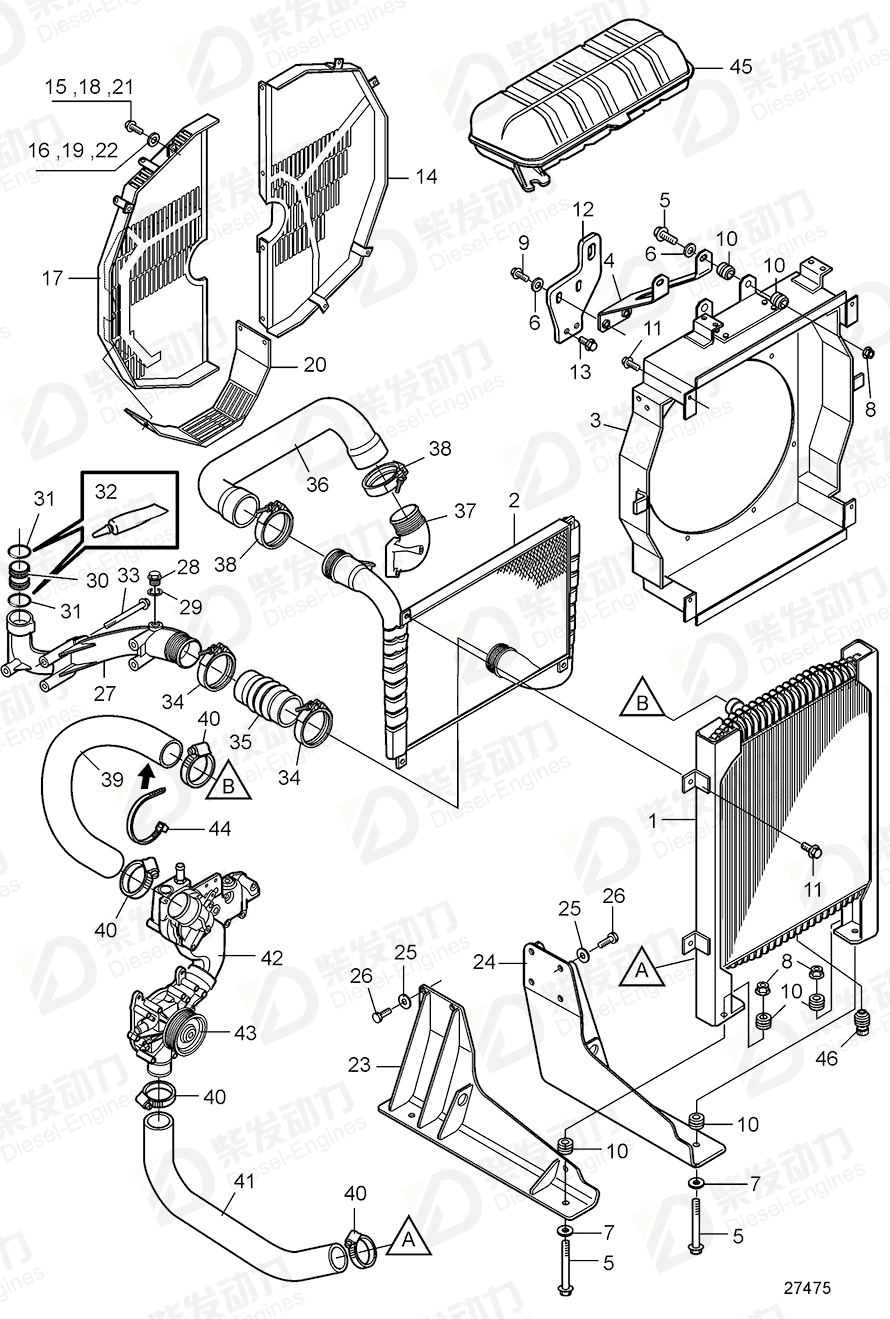

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 21661739 | 1 | |
| 2 | Charge air cooler | 21661744 | 1 | SN10914163-, Replaced by 21883424 |
| 2 | Charge air cooler | 21883424 | 1 | SN11194622- |
| 3 | Fan shroud | 21661748 | 1 | |
| 4 | Bracket | 21141486 | 1 | |
| 5 | Flange screw | 20797247 | 4 | |
| 6 | Washer | 20551709 | 4 | |
| 7 | Washer | 20549890 | 2 | |
| 8 | Hexagon nut | 993787 | 8 | |
| 9 | Flange screw | 20755314 | 2 | |
| 10 | Rubber mounting | 21661786 | 4 | |
| 11 | Flange screw | 946440 | 8 | |
| 12 | Lifting eye | 21202801 | 1 | |
| 13 | Hexagon screw | 20556904 | 2 | |
| 14 | Fan shroud, left | 21205953 | 1 | SN 10640196-11102007 |
| 14 | Fan shroud | 21662800 | 1 | SN 11102008- |
| 15 | Flange screw | 21865891 | 16 | |
| 16 | Washer | 22450069 | 16 | |
| 17 | Fan shroud, right | 21205950 | 1 | SN 10640196-11102007 |
| 17 | Fan shroud | 21662794 | 1 | SN 11102008- |
| 18 | Flange screw | 21865891 | 16 | |
| 19 | Washer | 22450069 | 16 | |
| 20 | Fan shroud, lower | 21205930 | 1 | SN 10640196-11102007 |
| 20 | Fan shroud | 21662803 | 1 | SN 11102008- |
| 21 | Flange screw | 21865891 | 16 | |
| 22 | Washer | 22450069 | 16 | |
| 23 | Bracket, right | 21149796 | 1 | |
| 24 | Bracket, left | 21149793 | 1 | |
| 25 | Spacer sleeve | 21033886 | 8 | |
| 26 | Hexagon screw | 21033902 | 8 | |
| 27 | Charge air pipe | 21664647 | 1 | |
| 28 | Plug | 888774 | 1 | (20405556) |
| 29 | Gasket | 21033247 | 1 | |
| 30 | Adapter | 20405944 | 1 | |
| 31 | O-ring | 20405535 | 2 | |
| 32 | Sealant | 1161231 | 1 | 304ml |
| 33 | Flange screw | 20911617 | 3 | |
| 34 | Clamp | 21150016 | 4 | |
| 35 | Rubber hose | 21664167 | 1 | |
| 36 | Charge air pipe | 21669933 | 1 | |
| 37 | Pipe | 21669959 | 1 | |
| 38 | Clamp | 21150012 | 2 | |
| 39 | Hose | 21043284 | 1 | |
| 40 | Hose clamp | 20412420 | 4 | |
| 41 | Hose | 21076783 | 1 | |
| 44 | Cable tie | 21052971 | 1 | |
| 45 | Expansion tank | 21661750 | 1 | |
| 46 | Drain valve | 22381326 | 1 |
| Item | Part Name | Part No. |
| 27 | Charge air pipe 21664647 | 21664647 |
| Details | |
| Engine model | TAD734GE TAD752GE, TAD753GE, TAD754GE |
| Application | Cooling System Cooling System SN 10914163- |
Related Products
Tags: Charge air pipe, Volvo Penta, 21664647
