Volvo 22027470 Charge air pipe 22027470 Cooling System spare parts-Generator engine parts Mall

Charge air pipe 22027470

0 reviews Write a review

Qty

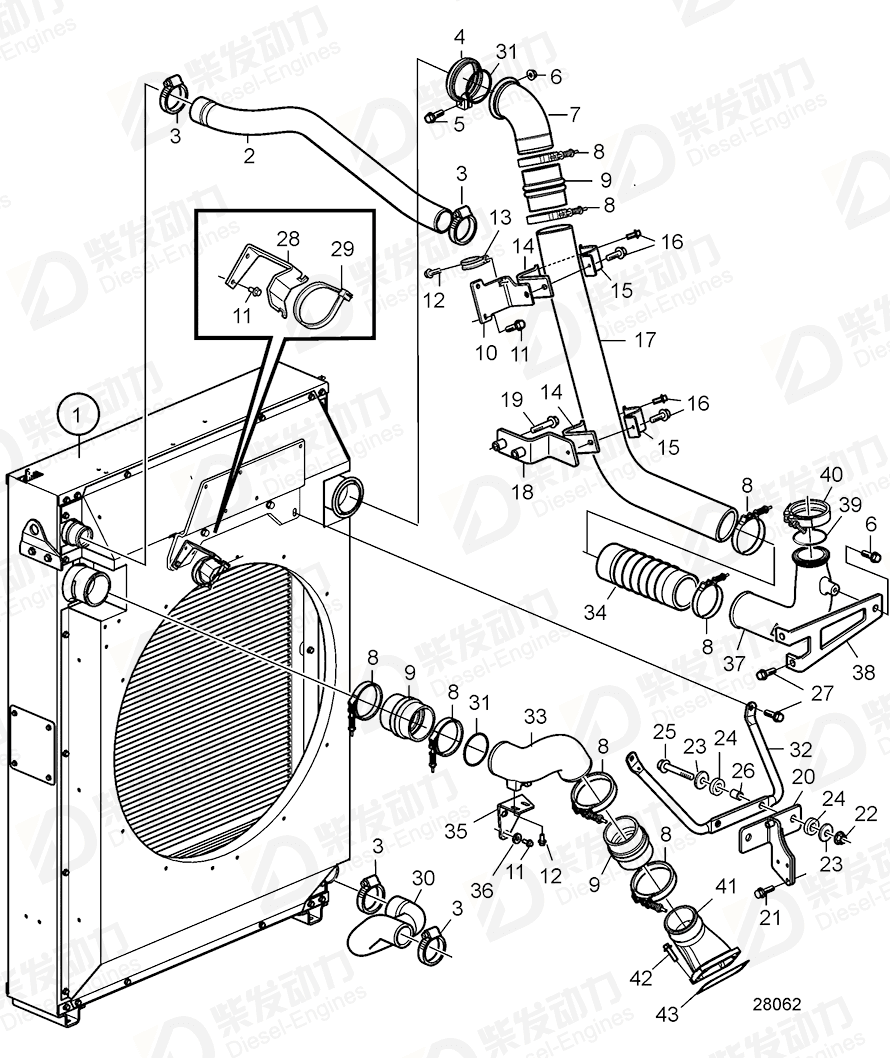

No.	Part Name	Part Number	Qty	Description
2	Hose	22140179	1
3	Hose clamp	994565	4
4	V-clamp	21211715	1
5	Flange screw	994441	1
6	Flange lock nut	990950	1
7	Connecting pipe	22035260	1
8	Hose clamp	20435760	8
9	Charge air hose	3838792	3
10	Bracket	22285210	1
11	Flange screw	984733	9
12	Flange screw	984734	2
13	Clamp	941976	1
14	Clamping brace	22285230	2
15	Clamping brace	22285225	2
16	Flange screw	984734	4
17	Charge air pipe	22027470	1	Replaced by 22494914
17	Charge air pipe	22494914	1
18	Bracket	22285216	1	Replaced by 22757119
18	Bracket	22757119	1
19	Flange screw	990813	2
20	Bracket	3594409	1
21	Flange screw	984753	3
22	Flange nut	990944	2
23	Washer	948556	4
24	Rubber bushing	866857	4
25	Flange screw	984836	2
26	Spacer sleeve	252202	2
27	Flange screw	984752	6
28	Bracket	22162119	1
29	Cable tie	978435	1
30	Hose	22037699	1
31	O-ring	949647	2
32	Stay	3593807	1
33	Connecting pipe	22446058	1
34	Charge air hose	3829133	1
35	Bracket	22471286	1
36	Washer	976944	3
37	Connecting pipe	22322833	1	For uppgrade to new solution,see section 41198,use pos 3-5,18-29 and 45
38	Bracket	21205043	1	For upgrade to new solution,see section 41232,use pos 3-5,18-29 and 45
39	Sealing ring	1675066	1
40	V-clamp	3886542	1
41	Charge air pipe	22150870	1
42	Flange screw	984744	4
43	Plane gasket	3979639	1

Item	Part Name	Part No.
17	Charge air pipe 22027470	22027470

Details
Engine model	TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1641VE, TAD1642VE, TAD1643VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1650VE
Application	Radiator and Charge Air Cooler with Connections, Pushing, SN2016079648-SN2016084273 Radiator and Charge Air Cooler with Connections, Pushing, SN2016084274-SN2016087576
Specification
Descriptions	Replaced by 22494914
