Clamp 20405532

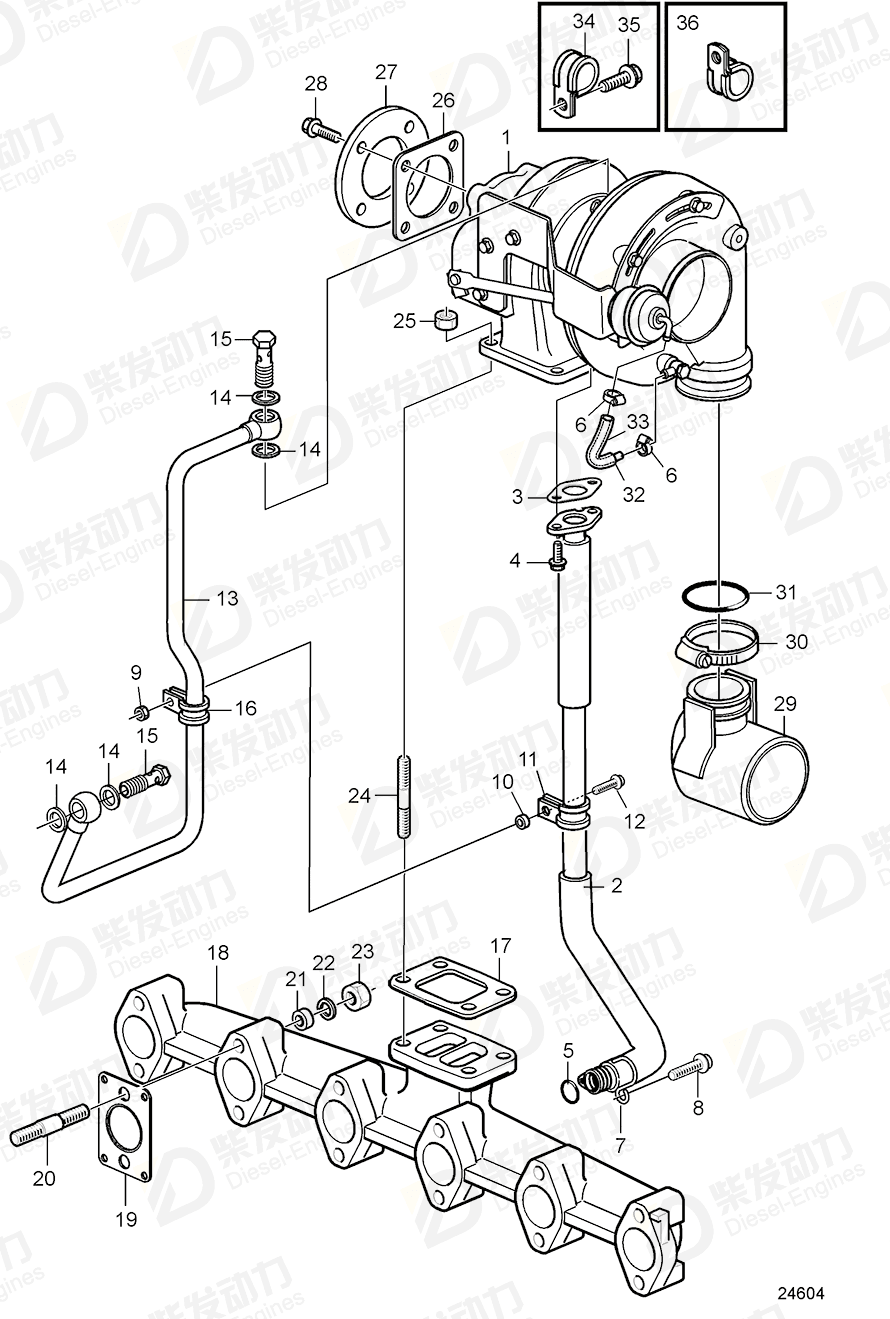

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801105 | 1 | With wastegate. |
| 1 | Turbocharger | 3801261 | 1 | With wastegate., Replaced by 3801532 |
| 1 | Turbocharger, exch | 3801532 | 1 | With wastegate. |
| 2 | Return line | 21134583 | 1 | |
| 3 | Plane gasket | 20405790 | 1 | |
| 4 | Flange screw | 984734 | 2 | |
| 5 | O-ring | 20405822 | 2 | |
| 6 | Clamp | 20916686 | 1 | |
| 7 | Retainer | 20405789 | 1 | |
| 8 | Flange screw | 20405792 | 1 | |
| 9 | Flange nut | 990940 | 1 | |
| 10 | Bushing | 20450730 | 1 | |
| 11 | Clamp | 20405532 | 1 | |
| 12 | Flange screw | 984736 | 1 | |
| 13 | Oil line | 20805450 | 1 | SN-10550767 |
| 14 | Gasket | 969011 | 4 | |
| 15 | Hollow screw | 25167 | 2 | |
| 16 | Clamp | 20450987 | 1 | |
| 17 | Gasket | 20559835 | 1 | |
| 18 | Exhaust manifold | 20534529 | 1 | |
| 19 | Gasket | 20933261 | 6 | |
| 20 | Stud | 20575919 | 12 | |
| 21 | Spacer sleeve | 20847865 | 12 | |
| 22 | Washer | 20799731 | 12 | |
| 23 | Nut retainer | 20505959 | 12 | (20405593) |
| 24 | Stud | 20799733 | 4 | |
| 25 | Hexagon nut | 20412308 | 4 | |
| 26 | Gasket | 20792408 | 1 | |
| 27 | Flange | 21034013 | 1 | |
| 28 | Screw | 20801195 | 4 | |
| 32 | Hose | 20959595 | 1 | L=430mm |
| 33 | Protecting hose, protection hose | 20914531 | 1 | |
| 34 | Hose clamp | 20405568 | 2 | |
| 35 | Flange screw | 20405792 | 1 | |
| 36 | Clamp | 20916692 | 1 |
| Item | Part Name | Part No. |
| 11 | Clamp 20405532 | 20405532 |
| Details | |
| Engine model | TAD520GE TAD520VE TAD530GE, TAD531GE TAD530GE, TAD531GE, TAD532GE TAD620VE TAD720GE TAD720VE, TAD721VE TAD720VE, TAD721VE, TAD722VE TAD721GE, TAD722GE TAD722VE TAD730GE, TAD731GE TAD730GE, TAD731GE, TAD732GE, TAD733GE TAD734GE TAD750VE, TAD760VE TAD752GE, TAD753GE, TAD754GE TD420VE, TAD420VE TD520GE TD520VE TD720GE, TAD720GE TD720VE |
| Application | Crankcase Ventilation Crankcase Ventilation, Std. with Radiator Crankcase Ventilation. High Mounted Turbo Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. High Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. High Mounted Turbo. Stage 1, Tier 1 Crankcase Ventilation. High Mounted Turbo. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 1, Tier 1 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2 and Tier 2 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2. Crankcase Ventilation. Low Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. Low Mounted Turbo. Stage 2, Tier 2. Not Turnable Pipe Elbow. (35°) Crankcase Ventilation. Straight Pipe. High Mounted Turbo. Stage 2 and Tier 2 Crankcase Ventilation. Straight Pipe. Low Mounted Turbo. Stage 2 and Tier 2 Exhaust Manifold and Turbocharger. High Mounted Turbo -SN10520359 Exhaust Manifold and Turbocharger. High Mounted Turbo SN10520360- Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 2, Tier 2 SN-01099468 Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 2, Tier 2 SN01099469- Fuel System |
