Clamp 20405730

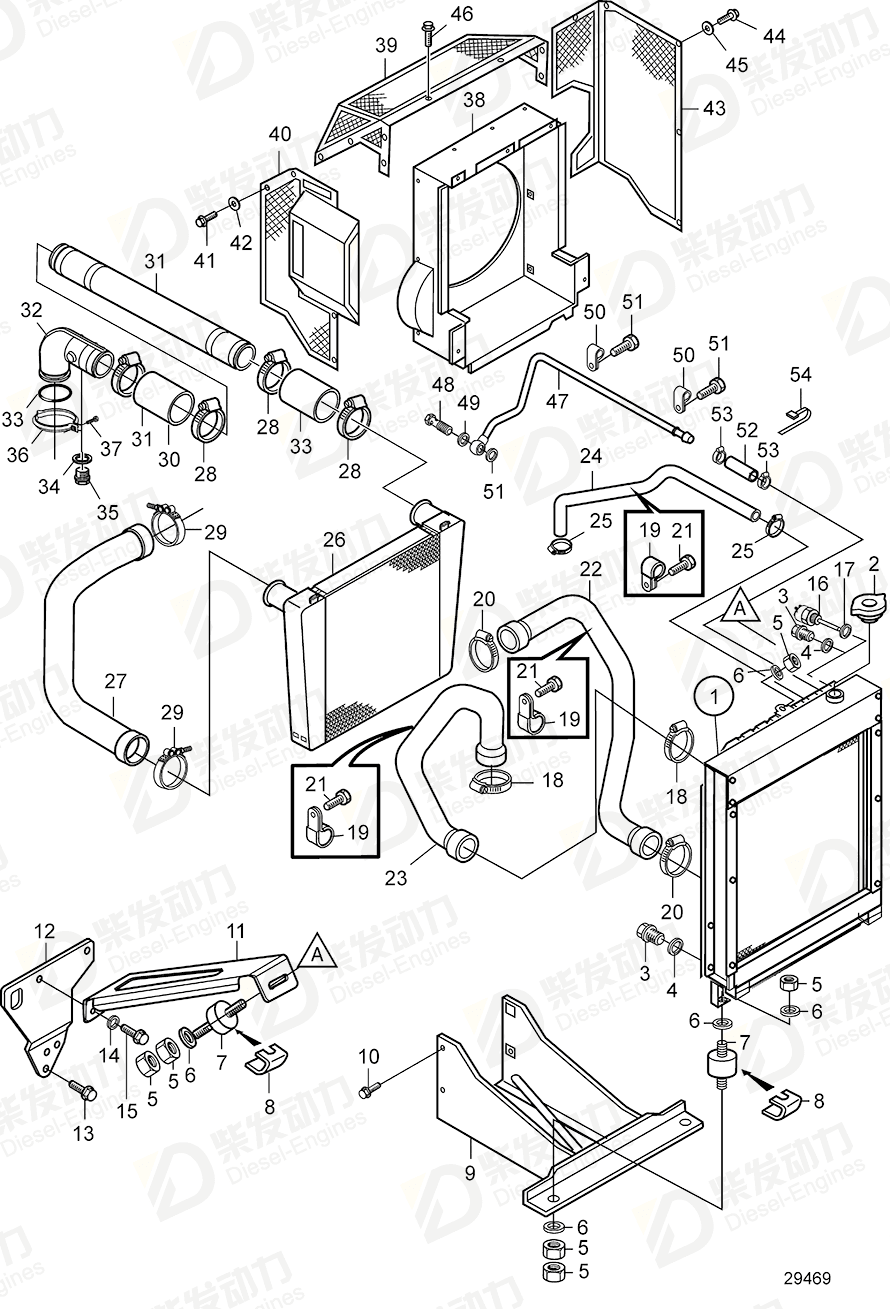

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 21063818 | 1 | Copper |
| 1 | Radiator | 22705928 | 1 | Aluminum |
| 2 | Filler cap | 22493846 | 1 | |
| 3 | Plug | 20412267 | 2 | |
| 4 | Gasket | 969011 | 2 | |
| 5 | Hexagon nut | 971071 | 9 | |
| 6 | Washer | 20551749 | 9 | |
| 7 | Vibration damper | 20405749 | 3 | |
| 8 | Bracket | 20405667 | 3 | |
| 9 | Radiator bracket | 21654748 | 1 | |
| 10 | Hexagon screw | 20459156 | 4 | |
| 11 | Bracket | 21665096 | 1 | |
| 13 | Hexagon screw | 970947 | 3 | M10X25 |
| 14 | Washer | 20549890 | 2 | |
| 15 | Flange screw | 984751 | 2 | |
| 16 | Level sensor | 21665888 | 1 | SN-11167041 |
| 16 | Sensor | 21876481 | 1 | SN11167042- |
| 17 | Gasket | 969011 | 1 | |
| 18 | Hose clamp | 994565 | 4 | |
| 19 | Clamp | 21685540 | 2 | |
| 20 | Clamp | 21685545 | 1 | |
| 21 | Flange screw | 20859779 | 3 | |
| 22 | Pipe | 21665199 | 1 | |
| 23 | Pipe | 21665196 | 1 | |
| 24 | Pipe | 21665200 | 1 | |
| 25 | Hose clamp | 24426949 | 2 | |
| 26 | Charge air cooler | 20795871 | 1 | (20412361) |
| 27 | Charge air pipe, Hose | 21665677 | 1 | To inlet. |
| 28 | Hose clamp | 21737971 | 4 | |
| 29 | Hose clamp | 21686488 | 1 | |
| 30 | Hose | 20531598 | 1 | |
| 31 | Charge air pipe | 21665586 | 1 | From turbo |
| 32 | Elbow | 21665473 | 1 | |
| 33 | Sealing ring | 20921906 | 1 | |
| 34 | Gasket | 21033247 | 1 | |
| 35 | Plug | 960628 | 1 | |
| 36 | V-clamp | 1542778 | 2 | |
| 37 | Flange screw | 20412340 | 1 | |
| 38 | Fan shroud, hot climate | 20798740 | 1 | |
| 39 | Fan shroud, upper | 21865897 | 1 | |
| 40 | Fan shroud, right | 21865915 | 1 | SN11320581-11429059 |
| 40 | Fan shroud, right | 22533668 | 1 | SN11429060- |
| 41 | Flange screw | 21865891 | 6 | |
| 42 | Washer | 22450069 | 6 | |
| 43 | Fan shroud, left | 21865903 | 6 | |
| 44 | Flange screw | 21865891 | 6 | |
| 45 | Washer | 22450069 | 6 | |
| 46 | Flange screw | 984733 | 4 | |
| 47 | Pipe, air venting | 21503654 | 1 | |
| 48 | Hollow screw | 980973 | 1 | |
| 49 | Gasket | 947281 | 2 | |
| 50 | Clamp | 20405730 | 3 | |
| 51 | Flange screw | 967949 | 3 | |
| 52 | Hose | 21226021 | 1 | |
| 53 | Hose clamp | 943471 | 2 | (951787) |
| 54 | Cable clamp | 20702947 | 2 | L=295mm |
| Item | Part Name | Part No. |
| 50 | Clamp 20405730 | 20405730 |
| Details | |
| Engine model | TAD520GE TAD520VE TAD530GE, TAD531GE TAD532GE TAD550GE, TAD551GE TAD620VE TAD720GE TAD720GE, TAD730GE, TAD731GE TAD720VE, TAD721VE, TAD722VE TAD721GE, TAD722GE TAD732GE, TAD733GE TAD750GE, TAD751GE TAD750VE, TAD760VE TD520GE TD520VE TD720GE TD720VE |
| Application | Air Compressor PTO A 720cm³ Cooling System Inlet Manifold Regulator: A Regulator: B Water Pump and Thermostat Housing with Bracket for Fan.: A Water Pump and Thermostat Housing with Bracket for Fan.: B Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B |
