Clamp 20460045

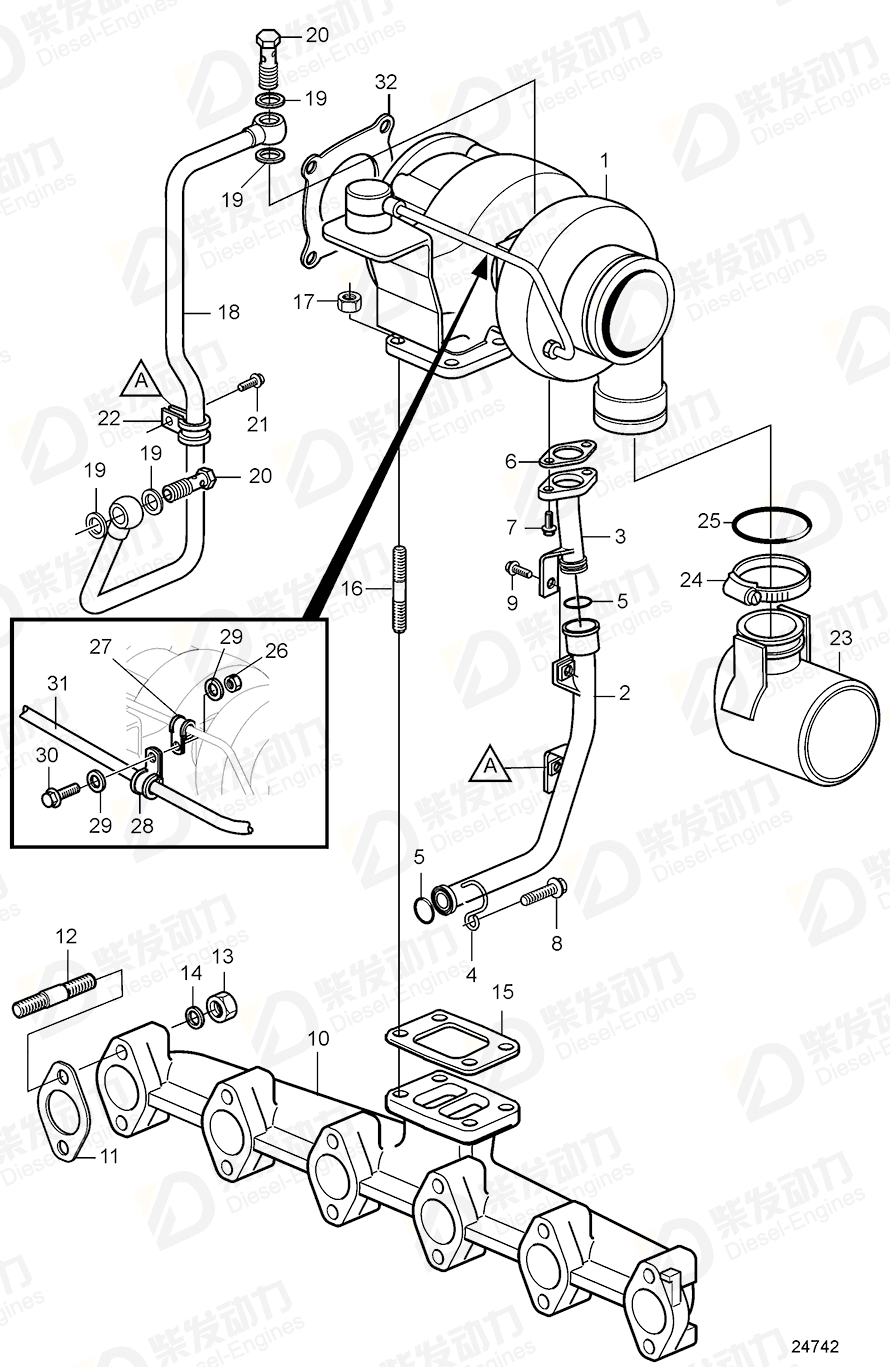

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802190 | 1 | TAD722VE, module: 1501 0 2509, With wastegate. |
| 1 | Turbocharger | 20571676 | 1 | TAD722VE, module: 1501 0 2509, With wastegate. |
| 2 | Return line | 20450976 | 1 | |
| 3 | Return line | 20450977 | 1 | Replaces by 21146146., If change of 20450977 must also 20450976 be changed. |
| 4 | Retainer | 20405789 | 1 | |
| 5 | O-ring | 20405822 | 2 | |
| 6 | Plane gasket | 20405790 | 1 | |
| 7 | Flange screw | 984734 | 2 | |
| 8 | Flange screw | 20405792 | 1 | |
| 9 | Flange screw | 20405898 | 1 | |
| 10 | Exhaust manifold | 20534529 | 1 | |
| 11 | Gasket | 20557208 | 6 | |
| 12 | Stud | 20405587 | 12 | |
| 13 | Nut retainer | 20505959 | 12 | (20405593) |
| 14 | Washer | 20799731 | 12 | |
| 15 | Gasket | 20405970 | 1 | |
| 16 | Stud | 20412314 | 4 | |
| 17 | Hexagon nut | 20412308 | 4 | |
| 18 | Oil line | 20498068 | 1 | |
| 19 | Gasket | 969011 | 4 | |
| 20 | Hollow screw | 25167 | 1 | |
| 21 | Flange screw | 20405792 | 2 | |
| 22 | Clamp | 20450987 | 1 | |
| 23 | Manifold | 20451015 | 1 | |
| 24 | Hose clamp | 20412420 | 1 | |
| 25 | O-ring | 20405535 | 1 | |
| 26 | Hexagon nut | 955781 | 1 | |
| 27 | Clamp | 20460045 | 1 | |
| 28 | Clamp | 20405532 | 1 | |
| 29 | Washer | 20459074 | 1 | |
| 30 | Flange screw | 20450728 | 1 | |
| 32 | Gasket | 20792408 | 1 |
| Item | Part Name | Part No. |
| 27 | Clamp 20460045 | 20460045 |
| Details | |
| Engine model | TAD550GE, TAD551GE TAD560VE, TAD561VE TAD620VE TAD650VE, TAD660VE TAD722VE TAD734GE TAD750GE, TAD751GE TAD750VE, TAD760VE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE TD420VE, TAD420VE, TAD620VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 2, Tier 2 SN-01099468 Exhaust Manifold and Turbocharger. High Mounted Turbo. Stage 2, Tier 2 SN01099469- Fuel Filter and Connecting Components Fuel line and bracket Fuel line and bracket with mounted ECU Fuel line and bracket with remote mounted ECU Fuel System Fuel System for Separate Fan Bracket SN 0738075- Fuel System for Separate Fan Bracket SN-0738074 Remote Single Fuelfilter Remote Twin Fuelfilter with Crankshaftmounted Fan |
