Clamp 849152

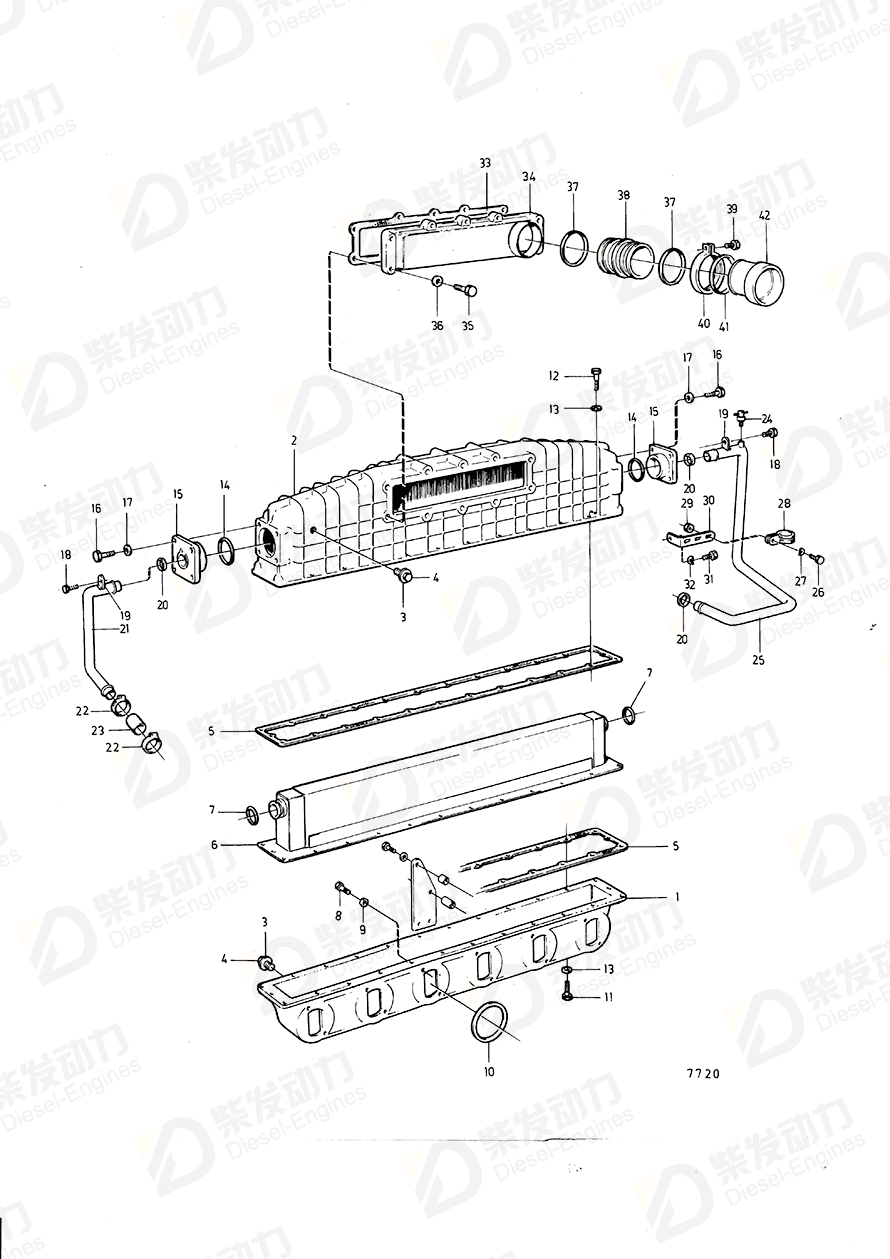

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 847692 | 1 | Repl by 3826309 |
| 2 | Inlet manifold | 469657 | 1 | |
| 3 | Gasket | 957171 | 2 | |
| 4 | Plug | 191026 | 2 | |
| 5 | Gasket | 469661 | 2 | |
| 6 | Charge air cooler | 424808 | 1 | (469811) |
| 7 | O-ring | 469668 | 2 | |
| 8 | Hexagon screw | 955530 | 5 | |
| 8 | Hexagon screw | 959793 | 5 | |
| 8 | Hexagon screw | 959796 | 2 | L=140mm |
| 9 | Spring washer | 941907 | 12 | |
| 10 | O-ring | 469830 | 6 | |
| 11 | Hexagon screw | 940159 | 16 | |
| 12 | Hex. socket screw | 956571 | 10 | SEE GROUP 2B |
| 13 | Spring washer | 941907 | 26 | |
| 14 | O-ring | 949332 | 2 | |
| 15 | Flange | 848564 | 2 | |
| 16 | Hexagon screw | 955525 | 8 | |
| 17 | Spring washer | 941907 | 8 | |
| 18 | Flange screw | 965175 | 2 | |
| 19 | Clamp | 849152 | 2 | |
| 20 | Rubber moulding | 471626 | 3 | |
| 21 | Tube | 848567 | 1 | |
| 22 | Hose clamp | 994559 | 2 | |
| 23 | Hose | 467538 | 1 | MOXXXXX/109942- |
| 24 | Shut-off cock | 82744 | 1 | |
| 25 | Tube | 848566 | 1 | |
| 26 | Cross recessed screw | 950047 | 1 | |
| 27 | Spring washer | 941906 | 1 | |
| 28 | Clamp | 952631 | 1 | |
| 29 | Hexagon nut | 955825 | 1 | Late type |
| 30 | Bracket | 843711 | 1 | |
| 31 | Hexagon screw | 955588 | 1 | |
| 32 | Spring washer | 941912 | 1 | |
| 33 | Gasket | 469662 | 1 | |
| 34 | Connecting pipe | 4778371 | 1 | |
| 35 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 36 | Spring washer | 941907 | 10 | |
| 37 | O-ring | 469508 | 2 | Included in gasket kit. |
| 38 | Intermediate pipe | 4778377 | 1 | |
| 39 | Hexagon screw | 949335 | 1 | |
| 40 | V-clamp | 1542778 | 1 | |
| 41 | Sealing ring | 1542781 | 1 | |
| 42 | Connection pipe | 4778376 | 1 |
| Item | Part Name | Part No. |
| 19 | Clamp 849152 | 849152 |
| Details | |
| Engine model | TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V, TWD1230VE TWD1230ME TWD1230VE TWD1231VE |
| Application | Induction Manifold and Intercooler Inlet Manifold and Installation Components Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, low mounted Turbo Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B |
