Clamp 866431

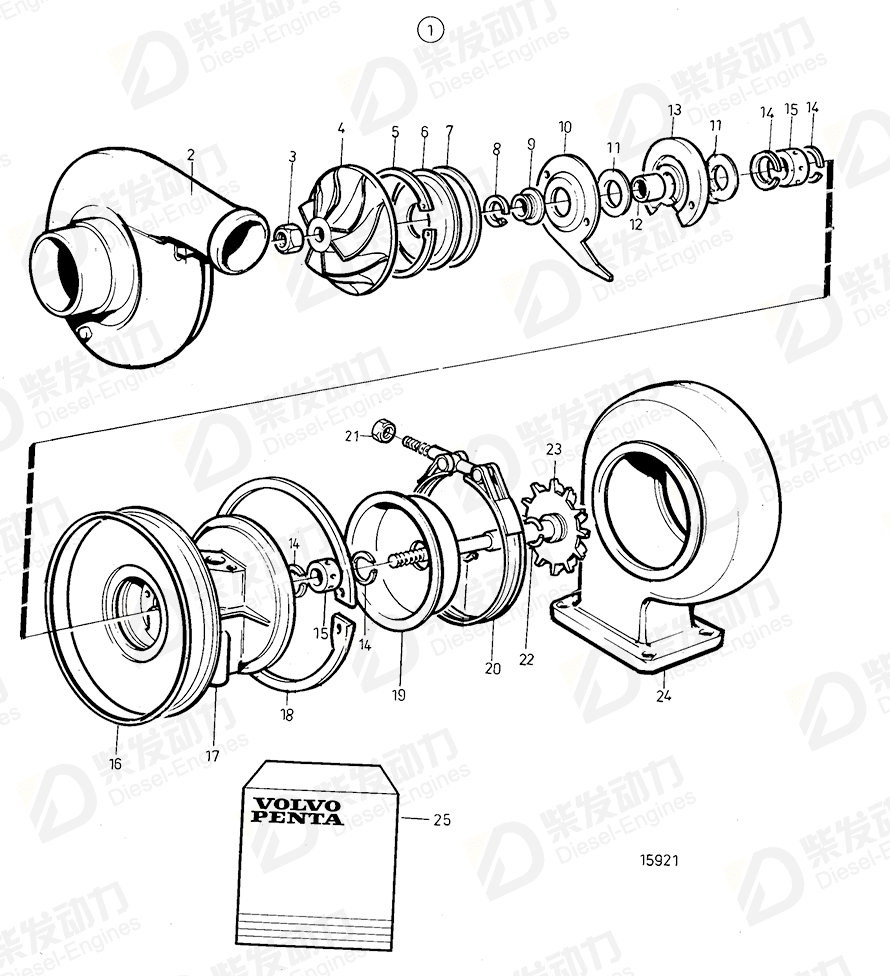

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802074 | 1 | (864301) |
| 3 | Lock nut | 866480 | 1 | |
| 4 | Wheel | 866507 | 1 | |
| 5 | Lock ring | 866486 | 1 | Included in rotor unit. |
| 9 | Sleeve | 866483 | 1 | |
| 11 | Thrust washer | 866490 | 2 | |
| 16 | O-ring | 866466 | 1 | |
| 18 | Lock ring | 866488 | 1 | |
| 20 | Clamp | 866431 | 1 | |
| 23 | Turbine rotor | 866496 | 1 | |
| 25 | Overhaul kit | 865874 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 20 | Clamp 866431 | 866431 |
| Details | |
| Engine model | TD610V, TWD610V, TD630VE, TWD630VE |
| Application | Turbo Charger Turbocharger, Components Turbocharger, Components: 864301 Turbocharger, Components: 864992 Turbocharger, Components: 865774 |
