Clamp 940374

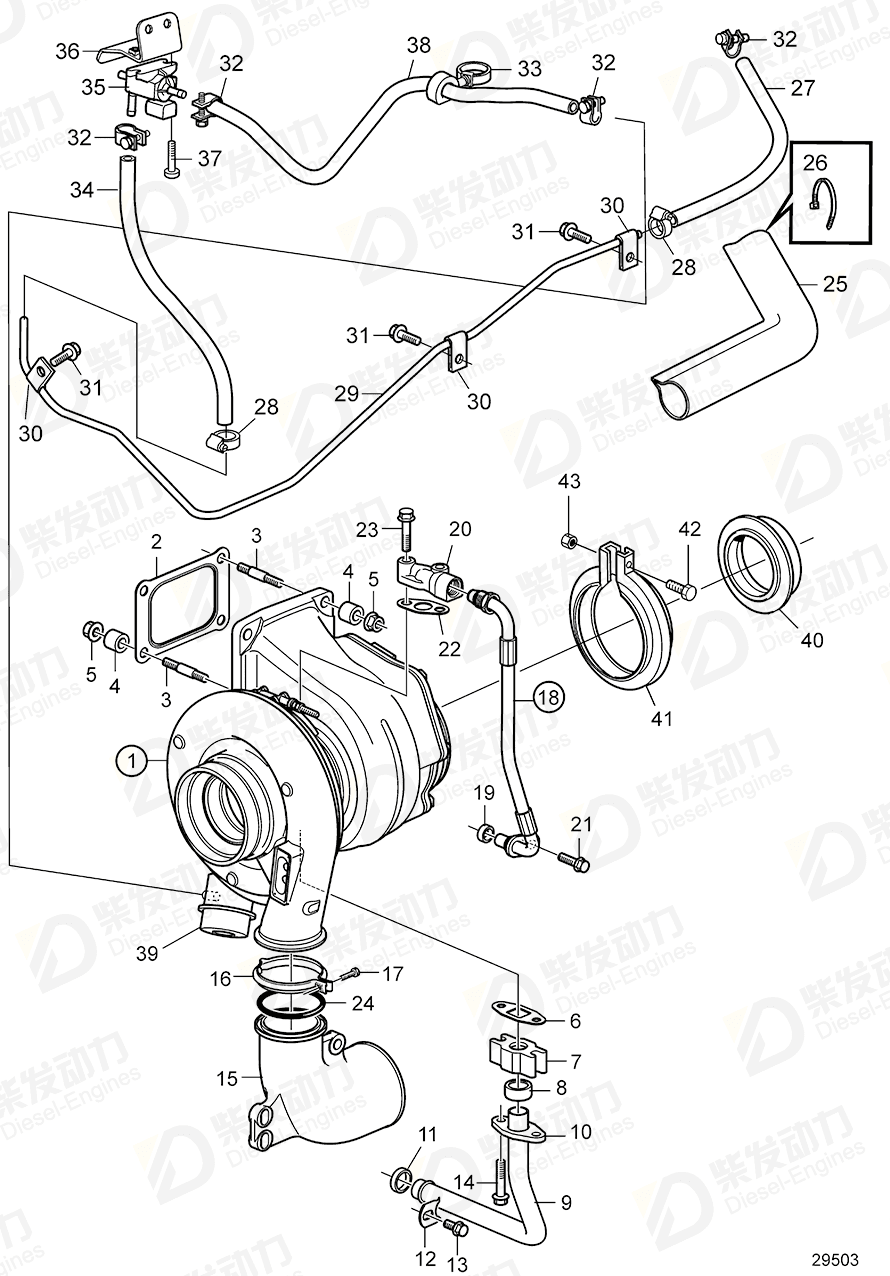

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801373 | 1 | |
| 1 | Turbocharger | 21316210 | 1 | |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Stud | 20579303 | 4 | (977299) |
| 4 | Spacer sleeve | 20573472 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Plane gasket | 20707685 | 1 | |
| 7 | Connector | 8148729 | 1 | |
| 8 | Rubber moulding | 469601 | 1 | |
| 9 | Oil return pipe | 3886333 | 1 | |
| 10 | Pipe flange | 469543 | 1 | |
| 11 | Sealing ring | 1547255 | 1 | |
| 12 | Lock brace | 20844430 | 1 | |
| 13 | Flange screw | 984733 | 1 | |
| 14 | Flange screw | 984738 | 2 | |
| 15 | Connecting pipe | 11030375 | 1 | |
| 16 | V-clamp | 1542778 | 1 | |
| 17 | Flange screw | 965212 | 1 | |
| 18 | Oil pressure pipe | 3886331 | 1 | |
| 19 | Sealing ring | 1636309 | 1 | |
| 20 | Flange | 8192268 | 1 | |
| 21 | Flange screw | 949853 | 1 | |
| 22 | Gasket | 22206133 | 1 | |
| 23 | Flange screw | 984737 | 2 | |
| 24 | Sealing ring | 1542781 | 1 | |
| 25 | Tube | 20711293 | 1 | |
| 26 | Cable tie | 862832 | 1 | |
| 27 | Hose | 21109863 | 1 | |
| 28 | Hose clamp | 978402 | 2 | |
| 29 | Pipe | 21154124 | 1 | |
| 30 | Clamp | 940374 | 3 | |
| 31 | Flange screw | 984733 | 3 | |
| 32 | Hose clamp | 975269 | 4 | |
| 33 | Retainer | 21045811 | 1 | |
| 34 | Fuel hose | 1266870 | 1 | |
| 35 | Solenoid valve | 3819161 | 1 | |
| 36 | Bracket | 21825583 | 1 | |
| 37 | Six point socket scr | 969407 | 2 | |
| 38 | Fuel hose | 1266870 | 1 | |
| 39 | Waste gate actuator | 23159515 | 1 | |
| 40 | Flange | 22503027 | 1 | |
| 41 | V-clamp | 21211715 | 1 | |
| 42 | Flange screw | 984739 | 1 | |
| 43 | Flange lock nut | 990950 | 1 |
| Item | Part Name | Part No. |
| 30 | Clamp 940374 | 940374 |
| Details | |
| Engine model | TAD120CHC TAD121CHC TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD730G TAD730P TD120BHC TD120BRC TD121CHC TD121CRC TD45B TD60B TD60D TD60D-83 TD610M TD610V TD61A TD61AW TD630ME TD630VE TD710G, TWD710G TD71A TD71ACE TD71AG TD71AP TD71AW TID60D TID60DG TID71A TID71AG TID71AP TWD610V TWD710P |
| Application | Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Fuel Injector and Delivery Pipes SN-2071084080 Fuel Injector and Delivery Pipes SN-2071084080: A Fuel Injector and Delivery Pipes SN-2071084080: B Fuel System FUEL SYSTEM: A FUEL SYSTEM: B Fuel System: C Fuel System: D Fuel System: TD71AGP Fuel System: TD71APB Fuel System: TID71AGP Fuel System: TID71APB Induction and Exhaust System Injection Pump, Fuel Filter and Shut-off Valve Oil and Fuel Supervision with Installation Components: A Oil and Fuel Supervision with Installation Components: B Turbocharger |
| Specification | |
| Descriptions | Engine with RQV governor. For fuel injection pump 847871. For fuel injection pump 862472, Early type |
Related Products
Tags: Clamp, Volvo Penta, 940374
