Clamp 941565

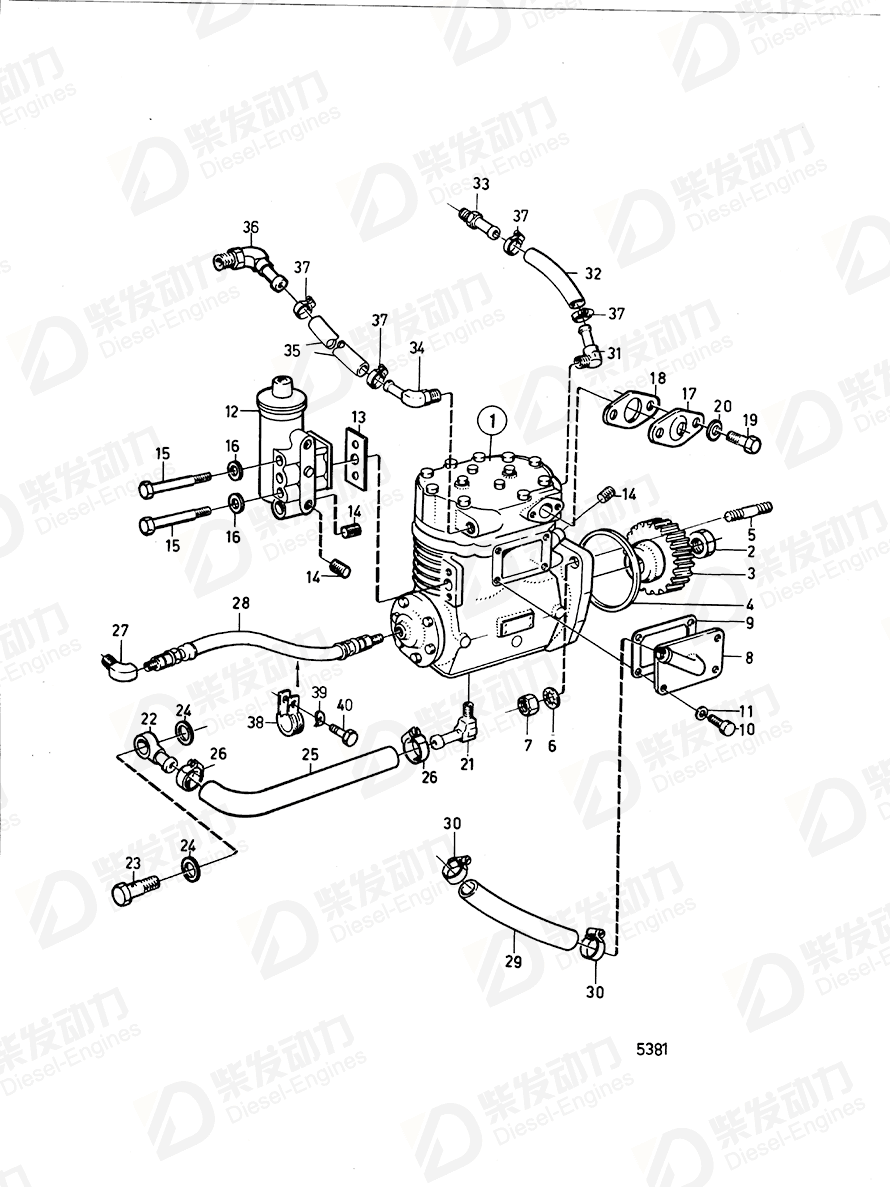

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1570594 | 1 | Repl by 1590264 |
| 2 | Nut | 1518355 | 1 | |
| 3 | Gear | 423087 | 1 | |
| 4 | Gasket | 413619 | 1 | |
| 5 | Stud | 953346 | 3 | |
| 7 | Hexagon nut | 955828 | 3 | |
| 10 | Hexagon screw | 955269 | 4 | For 1570594 |
| 11 | Spring washer | 941906 | 4 | |
| 12 | Governor | 1503492 | 1 | |
| 13 | Gasket | 324042 | 1 | |
| 14 | Plug | 16325 | 5 | |
| 15 | Hexagon screw | 955304 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Flange | 330634 | 1 | |
| 18 | Gasket | 324359 | 1 | |
| 19 | Hexagon screw | 955297 | 2 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Elbow nipple | 942240 | 1 | |
| 22 | Banjo nipple | 824463 | 1 | MO-28308. |
| 23 | Hollow screw | 836832 | 1 | MO-28308. |
| 24 | Gasket | 18818 | 2 | |
| 25 | Hose | 941522 | 1 | (13799) L=45mm |
| 26 | Hose clamp | 994559 | 2 | |
| 27 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 28 | Hose assembly | 1507501 | 1 | |
| 29 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 30 | Hose clamp | 943472 | 2 | |
| 31 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 33 | Hose nipple | 961654 | 1 | |
| 34 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 35 | Hose | 944465 | 1 | L=95mm |
| 36 | Elbow nipple | 942240 | 1 | |
| 37 | Hose clamp | 943472 | 4 | |
| 38 | Clamp | 941565 | 1 | |
| 39 | Spring washer | 942336 | 1 | |
| 40 | Hexagon screw | 940133 | 1 |
| Item | Part Name | Part No. |
| 38 | Clamp 941565 | 941565 |
| Details | |
| Engine model | TD120C TD120G, TD120GG |
| Application | Air Compressor 15.5 Air Compressor 15.5 W 5 and Installation Components Air Compressor and Installation Components |
| Specification | |
| Descriptions | EARLIER PROD Early type |
