Clamp 942311

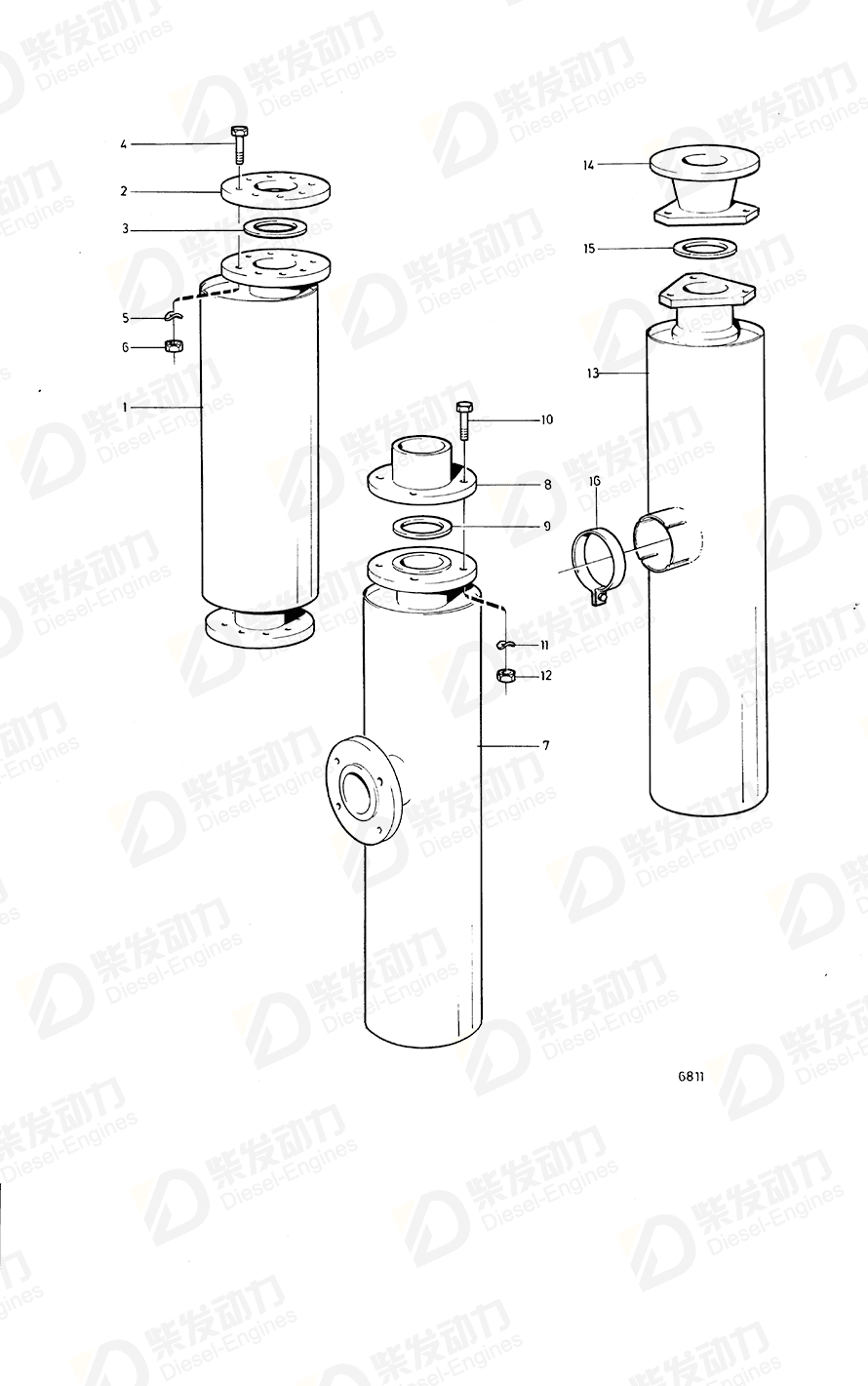

| No. | Part Name | Part Number | Qty | Description |
| 1 | Silencer | 836257 | 1 | |
| 2 | Weld flange | 846414 | 2 | |
| 3 | Gasket | 846418 | 2 | |
| 5 | Spring washer | 941912 | 16 | |
| 6 | Hexagon nut | 955785 | 16 | |
| 8 | Flange | 807625 | 2 | |
| 9 | Gasket | 807578 | 2 | |
| 10 | Hexagon screw | 955592 | 8 | |
| 11 | Spring washer | 941912 | 8 | |
| 12 | Hexagon nut | 955829 | 8 | Pusher type, For tropic radiator |
| 13 | Silencer | 475961 | 1 | Alt |
| 14 | Flange | 364724 | 1 | |
| 15 | Sealing ring | 364726 | 1 | |
| 16 | Clamp | 942311 | 1 |
| Item | Part Name | Part No. |
| 16 | Clamp 942311 | 942311 |
| Details | |
| Engine model | TD120HPP TD70G TD70G-83 TID121FG TID60D TID60DG TID70G |
| Application | SILENCER ALT Turbo and Installation Components TURBO AND INSTALLATION COMPONENTS: A TURBO AND INSTALLATION COMPONENTS: B |
| Specification | |
| Descriptions | ALT |
