Clamp 942651

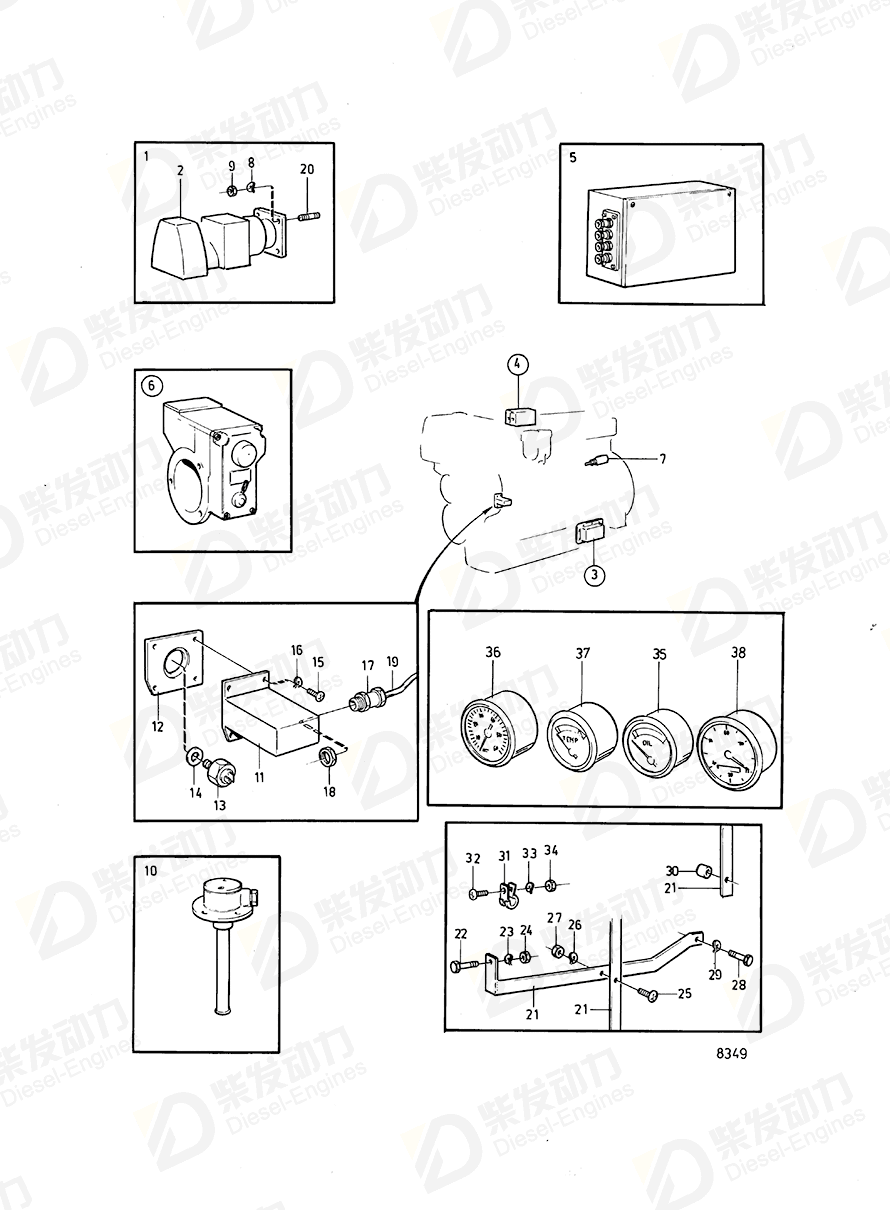

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 843510 | 1 | 24V |
| 1 | Starter motor | 847307 | 1 | 24V |
| 8 | Spring washer | 942336 | 3 | |
| 9 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 11 | Box | 843102 | 1 | |
| 12 | Attaching plate | 843103 | 1 | |
| 13 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 14 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 15 | Cross recessed screw | 956060 | 4 | |
| 16 | Spring washer | 941904 | 4 | |
| 17 | Grommet | 822327 | 1 | |
| 18 | Nut | 880243 | 1 | |
| 20 | Stud | 953486 | 3 | |
| 22 | Hexagon screw | 955322 | 1 | |
| 23 | Spring washer | 942336 | 1 | |
| 24 | Hexagon nut | 955783 | 1 | |
| 26 | Spring washer | 941906 | 1 | |
| 27 | Hexagon nut | 955781 | 1 | |
| 28 | Hexagon screw | 955534 | 1 | |
| 29 | Spring washer | 942336 | 1 | |
| 30 | Spacer sleeve | 850302 | 2 | Early type |
| 30 | Washer | 955900 | 4 | For charging of 2 batteries,use charge distributor 831793 |
| 31 | Clamp | 942651 | 1 | |
| 31 | Clamp | 952628 | 1 | |
| 32 | Cross recessed screw | 956093 | 1 | |
| 33 | Spring washer | 941906 | 1 | |
| 34 | Hexagon nut | 955781 | 1 | |
| 35 | Instrument | 813864 | 1 | |
| 36 | Transistor | 823666 | 1 | |
| 37 | Thermometer | 827149 | 1 | |
| 38 | Hour recorder | 844957 | 1 | (815138) |
| Item | Part Name | Part No. |
| 31 | Clamp 942651 | 942651 |
| Details | |
| Engine model | D70CHC D70CRC TD70CHC TD70CRC |
| Application | Electrical System: A Electrical System: B Electrical System: C Electrical System: D |
