Clamp 952633

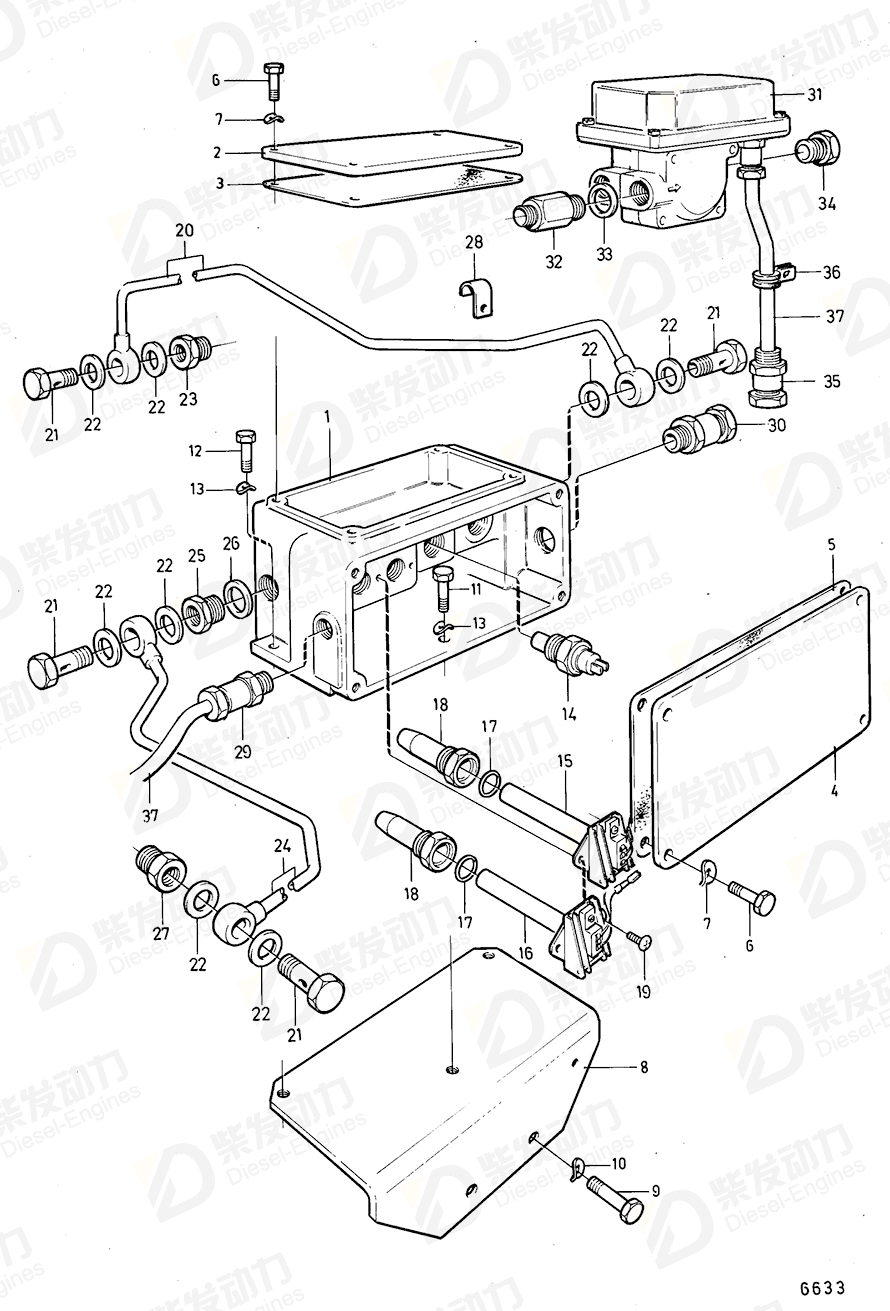

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 843686 | 1 | |
| 2 | Cap | 844039 | 1 | |
| 3 | Gasket | 844041 | 1 | |
| 4 | Cover | 843687 | 1 | |
| 5 | Gasket | 843690 | 1 | |
| 6 | Hexagon screw | 955272 | 8 | |
| 7 | Spring washer | 941906 | 8 | |
| 8 | Bracket | 844126 | 1 | |
| 9 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Hexagon screw | 955295 | 1 | |
| 12 | Hex. socket screw | 959220 | 1 | |
| 12 | Hex. socket screw | 959222 | 1 | L = 25 MM |
| 13 | Spring washer | 941907 | 3 | |
| 14 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 15 | Thermo monitor | 843769 | 1 | STOP |
| 16 | Thermo monitor | 843767 | 1 | ALARM |
| 17 | Gasket | 957179 | 2 | For governor 225-1200. |
| 18 | Sleeve | 843288 | 2 | |
| 19 | Cross recessed screw | 956063 | 3 | |
| 20 | Tube | 844128 | 1 | |
| 21 | Hollow screw | 25167 | 4 | |
| 22 | Gasket | 957178 | 8 | |
| 23 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 24 | Tube | 844129 | 1 | |
| 25 | Nipple | 843689 | 1 | |
| 26 | Gasket | 957183 | 1 | |
| 27 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 28 | Clamp | 942542 | 1 | |
| 29 | Grommet | 881191 | 1 | Early type |
| 30 | Grommet | 881193 | 1 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 31 | Flow monitor | 846622 | 1 | LATE TYPE |
| 32 | Nipple | 846632 | 1 | LATE TYPE |
| 33 | Gasket | 18671 | 1 | |
| 34 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 35 | Grommet | 822327 | 1 | |
| 36 | Clamp | 952630 | 5 | D = 17.5 MM LATE TYPE |
| 36 | Clamp | 952633 | 3 | D = 22.2 MM LATE TYPE |
| 36 | Clamp | 952637 | 2 | D = 25.4 MM LATE TYPE |
| 36 | Clamp | 952641 | 5 | D = 34.9 MM LATE TYPE |
| Item | Part Name | Part No. |
| 36 | Clamp 952633 | 952633 |
| Details | |
| Engine model | D100BHC D100BRC DH10A DH10A, THD102KD, THD102KB TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1240GE, TAD1241GE, TAD1242GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Air Compressor Wabco 352 Air Compressor Wabco 704 Control Unit and Cables, Gearbox Coolant Supervision and Installation Components Coolant Supervision and Installation Components: A Coolant Supervision and Installation Components: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D Electrical System Lubricating Oil Tank Pre Heating |
| Specification | |
| Descriptions | D = 22.2 MM LATE TYPE D=22.2mm D=22.2mm late type For THD102KB and THD102KD. |
