Clamp 952639

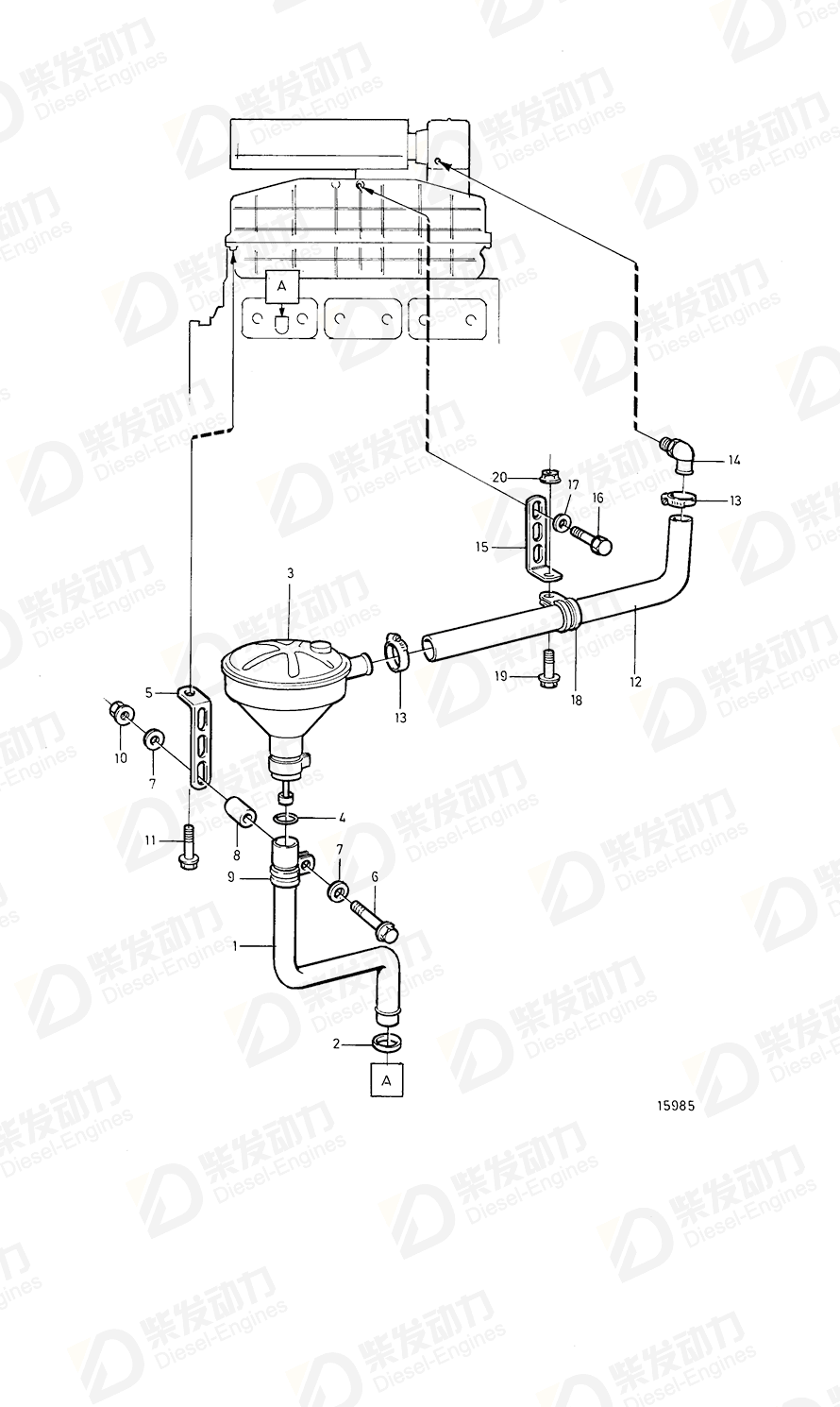

| No. | Part Name | Part Number | Qty | Description |
| 1 | Breather pipe | 3825014 | 1 | |
| 2 | Sealing ring | 421158 | 1 | |
| 3 | Ventilation filter | 3825036 | 1 | |
| 4 | O-ring | 949722 | 1 | |
| 5 | Bracket | 965561 | 1 | |
| 6 | Flange screw | 965182 | 1 | |
| 7 | Washer | 976943 | 2 | |
| 8 | Spacer sleeve | 822791 | 1 | Replaced by 1pc 1578938., L=55mm |
| 9 | Clamp | 968124 | 1 | |
| 10 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 12 | Rubber hose | 944386 | 1 | |
| 13 | Hose clamp | 943474 | 2 | |
| 14 | Elbow nipple | 942649 | 1 | |
| 15 | Bracket | 965561 | 1 | |
| 16 | Hexagon screw | 955523 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Clamp | 952639 | 1 | |
| 19 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 20 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| Item | Part Name | Part No. |
| 18 | Clamp 952639 | 952639 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB TWD1210V, TWD1211V, TWD1230VE, TWD1231VE |
| Application | Closed Crankcase Ventilation Lubricating Oil Tank |
