Clip 20464560

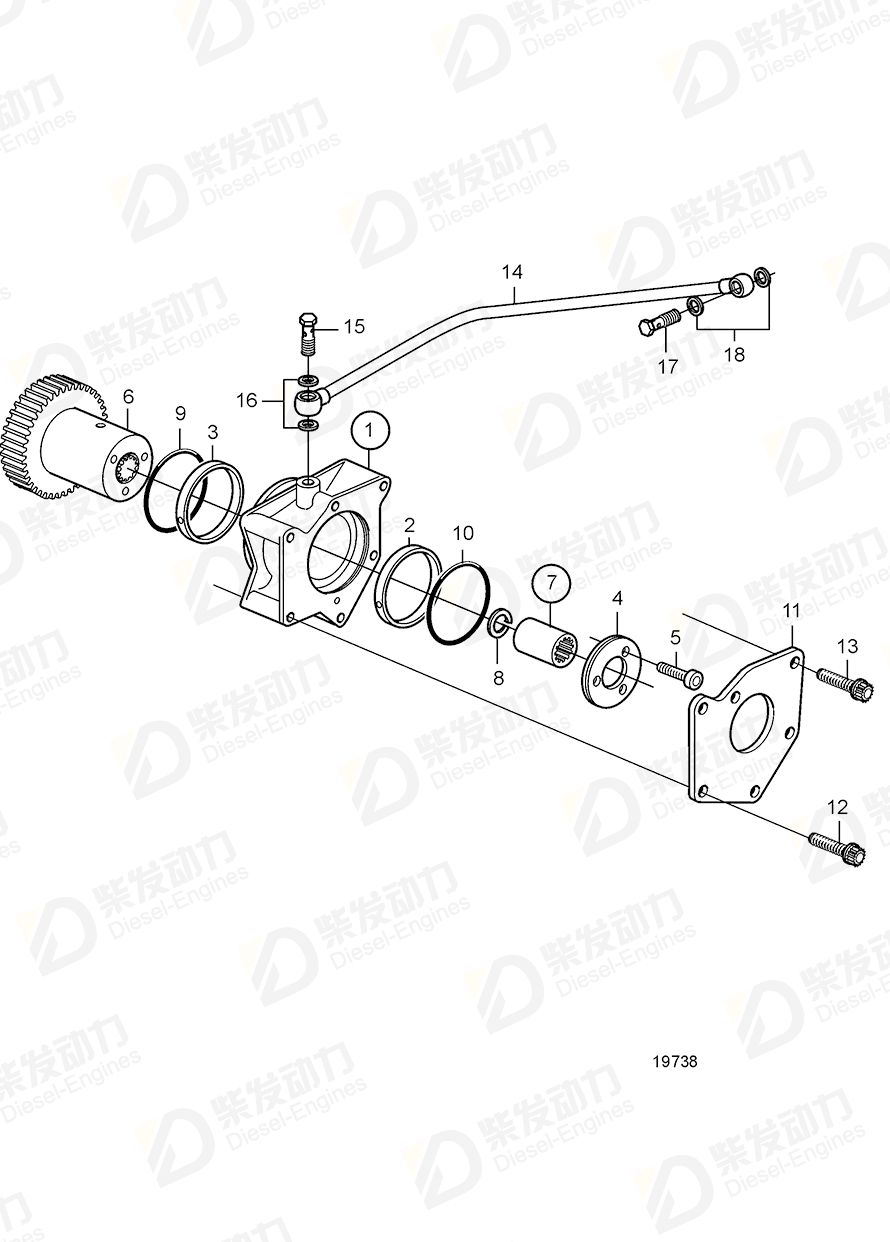

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bearing flange | 20460518 | 1 | PTO A, i=1: 1,116, below, to front. |
| 2 | Bushing | 20450809 | 1 | |
| 3 | Bushing | 20450807 | 1 | |
| 4 | Thrust washer | 20450811 | 1 | |
| 5 | Hex. socket screw | 20450822 | 3 | |
| 6 | Gear | 3586623 | 1 | Replaced by 20773258 |
| 6 | Gear | 20773258 | 1 | |
| 7 | Clutch flange | 3586622 | 1 | |
| 8 | Clip | 20464560 | 1 | |
| 9 | O-ring | 20450818 | 1 | |
| 10 | O-ring | 20460524 | 1 | |
| 11 | Adapter | 3586621 | 1 | |
| 12 | Six point screw | 20450820 | 2 | SN-1099412 |
| 12 | Hex. socket screw | 21077470 | 2 | SN1099413- |
| 13 | Six point screw | 20450821 | 2 | |
| 14 | Oil line | 20459170 | 1 | |
| 15 | Hollow screw | 25167 | 1 | |
| 16 | Gasket | 947281 | 2 | |
| 17 | Hollow screw | 980973 | 1 | |
| 18 | Gasket | 969011 | 2 |
| Item | Part Name | Part No. |
| 8 | Clip 20464560 | 20464560 |
| Details | |
| Engine model | TAD650VE, TAD660VE TD420VE, TAD420VE, TAD620VE |
| Application | Connecting Kit for Hydraulic Pump, ''PTO A''. Serrated Shaft Timing Gear Casing and Gears |
