Compressor 1611815

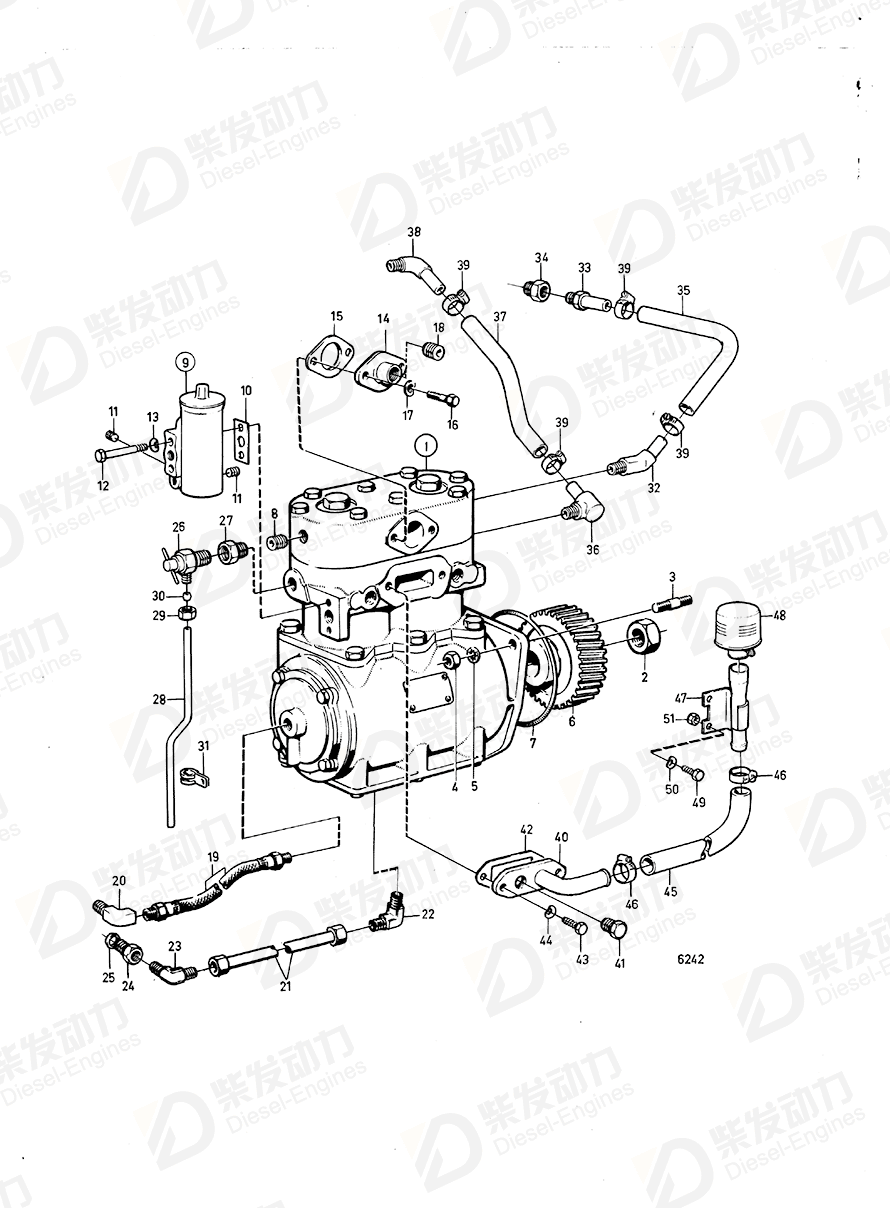

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor, compressor components not spec. | 1599919 | 1 | TUFLO 500 |
| 1 | Compressor | 1611815 | 1 | Also available as an exchange part. |
| 1 | Compressor, exch | 3803662 | 1 | Also available as an exchange part. |
| 2 | Nut | 346918 | 1 | |
| 3 | Stud | 953346 | 3 | |
| 4 | Hexagon nut | 955828 | 3 | |
| 5 | Spring washer | 941911 | 3 | |
| 6 | Gear | 423087 | 1 | |
| 7 | O-ring | 975610 | 1 | For engines without air compressor. |
| 8 | Plug | 952077 | 1 | |
| 9 | Governor | 1503492 | 1 | |
| 10 | Gasket | 1626068 | 1 | |
| 11 | Plug | 191026 | 4 | |
| 12 | Hexagon screw | 955528 | 1 | |
| 12 | Hexagon screw | 955529 | 1 | |
| 13 | Washer | 955894 | 2 | |
| 14 | Flange | 330634 | 1 | |
| 15 | Gasket | 1619957 | 1 | |
| 16 | Hexagon screw | 955523 | 2 | |
| 17 | Spring washer | 941907 | 2 | |
| 18 | Plug | 968145 | 1 | (952357) |
| 19 | Hose assembly | 87970 | 1 | MO 26456-. |
| 20 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 21 | Oil return pipe | 846849 | 1 | |
| 22 | Elbow nipple | 944276 | 1 | |
| 23 | Nipple | 326576 | 1 | |
| 24 | Nipple | 944727 | 1 | |
| 25 | Gasket | 18818 | 3 | |
| 26 | Drain cock | 820436 | 1 | |
| 27 | Reduction nipple | 332262 | 1 | |
| 28 | Tube | 954315 | 1 | L=425mm |
| 29 | Fitting nut | 954357 | 1 | |
| 30 | Fitting | 954365 | 1 | |
| 31 | Clamp | 942400 | 1 | |
| 32 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 33 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 34 | Reduction nipple | 16291 | 1 | MO 28309-. |
| 35 | Hose | 941522 | 1 | (13799) L=45mm |
| 36 | Elbow nipple | 941934 | 1 | |
| 37 | Hose | 941522 | 1 | (13799) L=45mm |
| 38 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 39 | Hose clamp | 943471 | 4 | (951787) |
| 40 | Air inlet | 1576814 | 1 | |
| 41 | Plug | 191026 | 1 | |
| 42 | Gasket | 324117 | 1 | |
| 43 | Hexagon screw | 940135 | 2 | |
| 44 | Spring washer | 941907 | 2 | |
| 45 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 46 | Hose clamp | 943473 | 2 | |
| 47 | Bracket | 1587040 | 1 | |
| 48 | Filter | 1082111 | 1 | |
| 49 | Hexagon screw | 955297 | 2 | |
| 50 | Spring washer | 941907 | 2 | |
| 51 | Hexagon nut | 955782 | 2 |
| Item | Part Name | Part No. |
| 1 | Compressor 1611815 | 1611815 |
| Details | |
| Engine model | TD100G TD100G-85 TD100G-87 TD60D TD60D-83 TD61A, TD61AW TD70G TD70G-83 TD71A, TD71AW TID100K TID60D TID70G TID71A |
| Application | Air Compressor Air Compressor &TUFLO 500 and Installation Components AIR COMPRESSOR AND INSTALLATION COMPONENTS Air Compressor TUFLO 500 AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: B Air Compressor TUFLO 700 and Installation Components: A Air Compressor TUFLO 700 and Installation Components: B Air Compressor, Components Air Compressor, TUFLO 500 and Installation Components Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Air Compressor: 1611815 |
| Specification | |
| Descriptions | Also available as an exchange part. TUFLO 500 |
