Connecting pipe 22322833

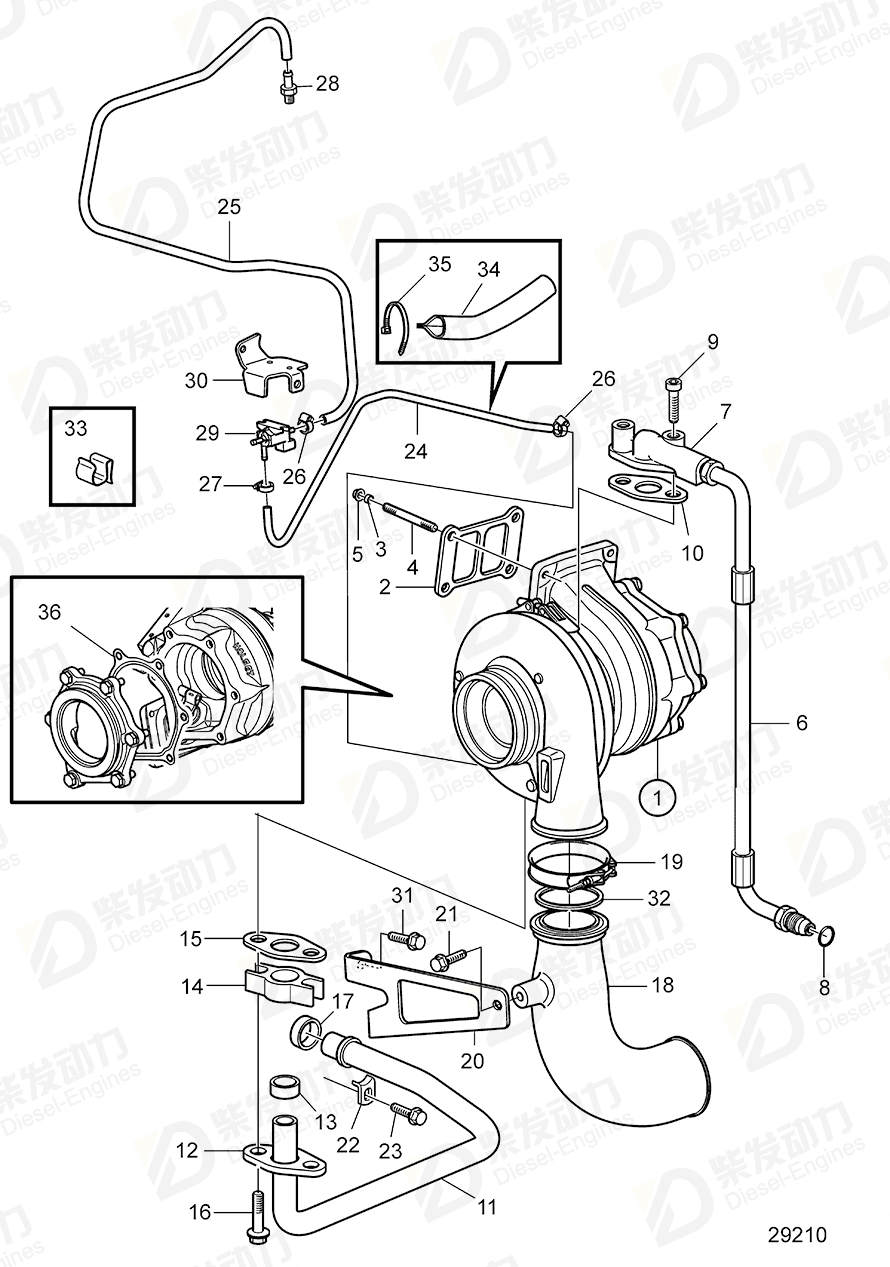

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801421 | 1 | |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Spacer sleeve | 478344 | 4 | |
| 4 | Stud | 21345127 | 4 | |
| 5 | Flange nut | 1543499 | 4 | |
| 6 | Oil feed hose | 11158484 | 1 | |
| 7 | Flange | 8192268 | 1 | |
| 8 | O-ring | 976971 | 1 | |
| 9 | Flange screw | 984737 | 2 | |
| 10 | Gasket | 22206133 | 1 | |
| 11 | Oil return pipe | 11158044 | 1 | |
| 11 | Oil return pipe | 15160855 | 1 | Replaced by 22929549 |
| 11 | Return pipe | 22929549 | 1 | |
| 12 | Pipe flange | 469543 | 1 | |
| 13 | Rubber moulding | 469601 | 1 | |
| 14 | Connector | 8148729 | 1 | |
| 15 | Gasket | 470993 | 1 | (420423) |
| 16 | Flange screw | 984738 | 2 | |
| 17 | Sealing ring | 1547255 | 1 | |
| 18 | Connecting pipe | 21159129 | 1 | For upgrade to new solution,see section 41232,use pos 3-5,18-29 and 45 |
| 18 | Connecting pipe | 22322833 | 1 | For uppgrade to new solution,see section 41198,use pos 3-5,18-29 and 45 |
| 19 | V-clamp | 3886542 | 1 | |
| 20 | Bracket | 21205043 | 1 | For upgrade to new solution,see section 41232,use pos 3-5,18-29 and 45 |
| 20 | Bracket | 21866989 | 1 | For uppgrade to new solution,see section 41198,use pos 3-5,18-29 and 45 |
| 21 | Flange screw | 984734 | 1 | |
| 22 | Lock brace | 1546531 | 1 | |
| 23 | Flange screw | 984733 | 1 | |
| 24 | Hose | 21311243 | 1 | |
| 25 | Hose | 11158489 | 1 | |
| 26 | Hose clamp | 993978 | 2 | |
| 27 | Hose clamp | 976573 | 1 | |
| 28 | Hose nipple | 945713 | 1 | |
| 29 | Solenoid valve | 3819161 | 1 | |
| 30 | Bracket | 21311241 | 1 | |
| 31 | Flange screw | 984752 | 2 | |
| 32 | Sealing ring | 1675066 | 1 | |
| 33 | Retainer | 984937 | 3 | |
| 34 | Tube | 20711293 | 1 | |
| 35 | Cable tie | 983472 | 1 | For cable to unit injectors. |
| 36 | Gasket | 23029715 | 1 | Included in Turbocharger |
| Item | Part Name | Part No. |
| 18 | Connecting pipe 22322833 | 22322833 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Radiator and Charge Air Cooler with Connections, Pushing, SN2016079648-SN2016084273 Radiator and Charge Air Cooler with Connections, Pushing, SN2016084274-SN2016087576 Radiator and Charge Air Cooler with Connections, Pushing, SN2016087577- Turbocharger Turbocharger SN-2016098146 Turbocharger SN2016098147- |
| Specification | |
| Descriptions | For upgrade to new solution see section 41236,use pos 3-5 and 43-54 For upgrade to new solution.see section 41160, use pos 3-5,18-29 and 54 For uppgrade to new solution,see section 41198,use pos 3-5,18-29 and 45 Option, When no Volvo cooling package is chosen Option,when no Volvo cooling package is chosen |
