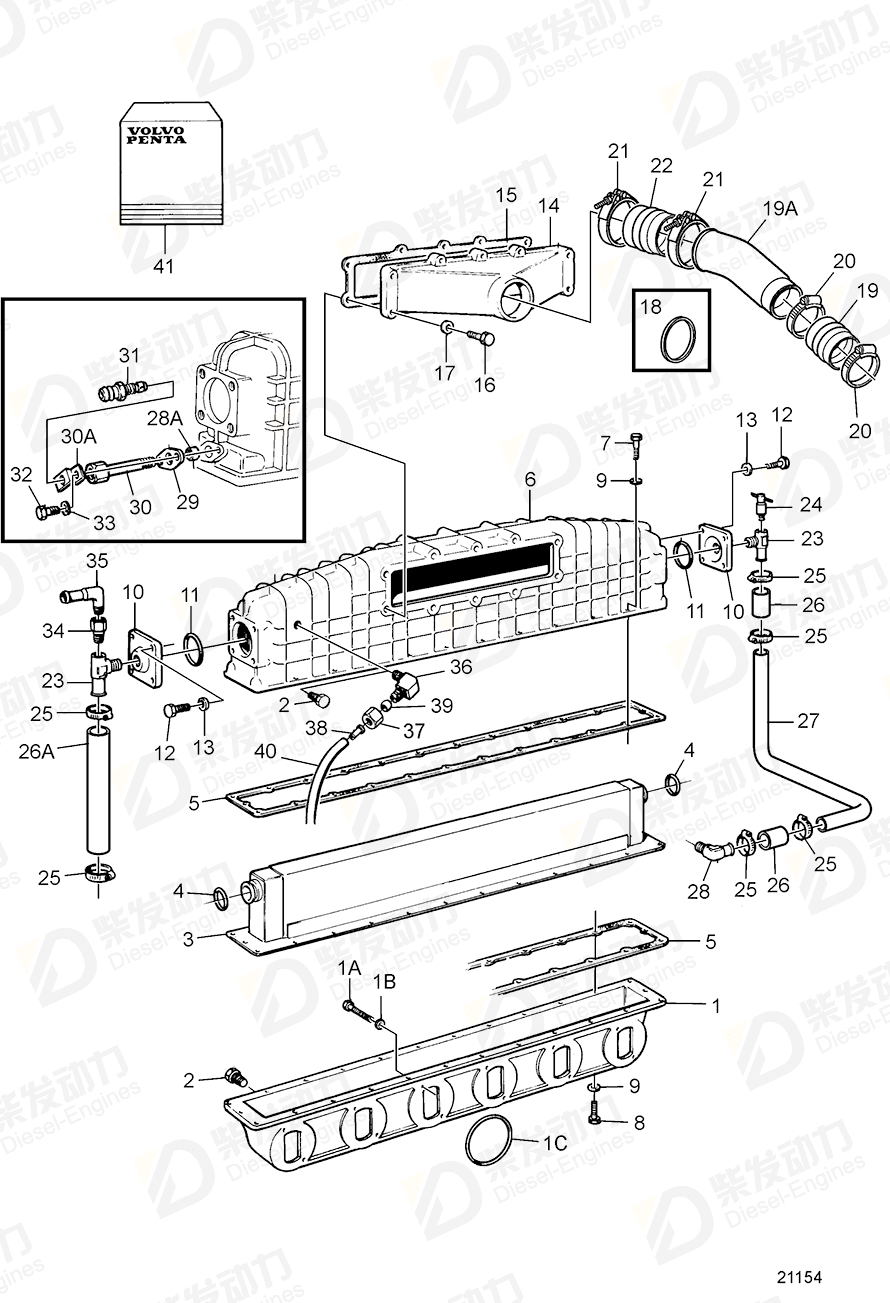

Connecting pipe 3831419
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Inlet pipe |
847675 |
1 |
Early type |
| 1 |
Hexagon screw |
955533 |
2 |
For engine with 40° angle of inclination, L=102mm |
| 1 |
Hexagon screw |
959793 |
5 |
|
| 1 |
Hexagon screw |
959796 |
2 |
L=140mm |
| 1 |
Inlet pipe |
3828544 |
1 |
Late type |
| 2 |
Plug |
479979 |
3 |
|
| 3 |
Charge air cooler |
866457 |
1 |
|
| 4 |
O-ring |
425695 |
2 |
|
| 5 |
Gasket |
3979052 |
2 |
|
| 6 |
Inlet pipe |
11032229 |
1 |
|
| 7 |
Hex. socket screw |
956572 |
10 |
SEE GROUP 2B |
| 8 |
Hexagon screw |
940186 |
16 |
|
| 9 |
Spring washer |
941907 |
26 |
|
| 10 |
Flange |
4778372 |
2 |
|
| 11 |
O-ring |
925094 |
2 |
Included in gasket kit 876025 for induction manifold+intercooler. |
| 12 |
Hexagon screw |
955525 |
8 |
|
| 13 |
Washer |
955894 |
8 |
|
| 14 |
Connecting pipe |
469659 |
1 |
|
| 15 |
Gasket |
469662 |
1 |
|
| 16 |
Hexagon screw |
940161 |
10 |
For engine with 40° angle of inclination, L=45mm |
| 17 |
Washer |
955894 |
10 |
|
| 18 |
O-ring |
469508 |
1 |
Included in gasket kit. |
| 19 |
Charge air hose |
3832458 |
1 |
|
| 1A |
Hexagon screw |
955531 |
3 |
Late type |
| 1B |
Spring washer |
941907 |
12 |
|
| 1C |
Sealing ring |
469829 |
6 |
Included in gasket kit. |
| 20 |
Hose clamp |
865575 |
2 |
|
| 21 |
Hose clamp |
1544731 |
2 |
For THD102KB, THD102KD |
| 22 |
Charge air hose |
865127 |
1 |
|
| 23 |
Elbow nipple |
943516 |
2 |
|
| 24 |
Shut-off cock |
82744 |
1 |
|
| 25 |
Hose clamp |
994559 |
6 |
|
| 26 |
Rubber hose |
943369 |
1 |
L=165 mm |
| 27 |
Pipe |
847435 |
1 |
|
| 28 |
Elbow nipple |
942590 |
1 |
|
| 29 |
Flange |
3825050 |
1 |
|
| 30 |
Shut-off cock |
3825067 |
1 |
|
| 31 |
Shut-off cock |
947893 |
1 |
|
| 32 |
Hexagon screw |
955513 |
2 |
|
| 33 |
Spring washer |
949607 |
2 |
|
| 34 |
Nipple |
862109 |
1 |
|
| 35 |
Elbow nipple |
479953 |
1 |
|
| 41 |
Intake gasket kit, induct.manifold+ intercool |
876025 |
1 |
See group 99 |
| 41 |
Gasket kit, induct+exhaust manifold |
876703 |
1 |
See group 99 |
| 19A |
Connecting pipe |
3831419 |
1 |
For low-mounted turbo. |
| 26A |
Rubber hose |
943369 |
1 |
L=165 mm |
| 28A |
Sealing ring |
3825051 |
1 |
|
| 30A |
Lock plate |
11031112 |
1 |
|
| Item |
Part Name |
Part No. |
| 19A |
Connecting pipe 3831419 |
3831419 |
| Details |
| Engine model |
TWD1031VE |
| Application |
Inlet Manifold and Aftercooler |
| Specification |
| Descriptions |
For low-mounted turbo. |
