Connecting rod bolt 1542077

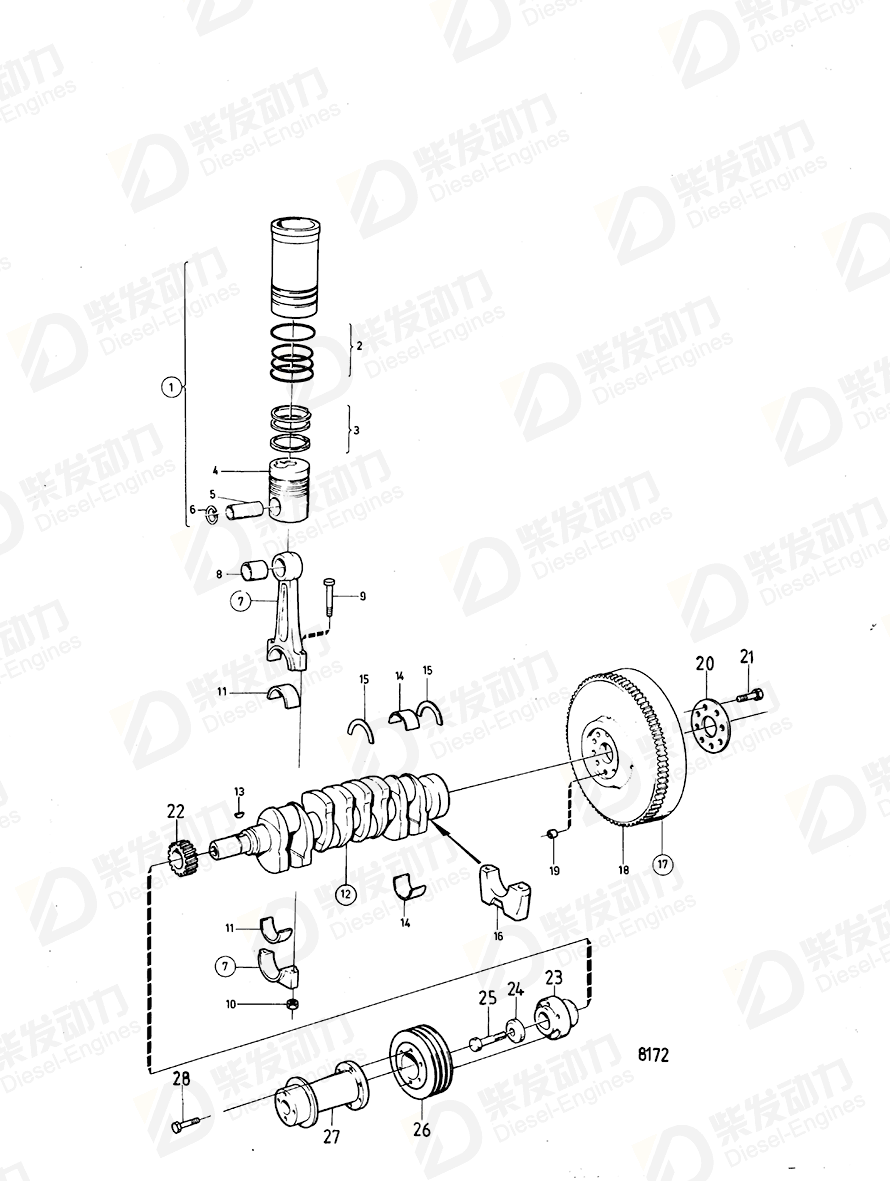

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275081 | 4 | |
| 2 | Sealing ring kit | 275751 | 4 | |
| 3 | Piston ring kit | 275350 | 4 | |
| 5 | Gudgeon pin | 1542160 | 4 | Repl by 442793 |
| 6 | Snap ring | 914519 | 8 | |
| 7 | Connecting rod | 1542072 | 4 | |
| 8 | Bushing | 1542076 | 4 | |
| 9 | Connecting rod bolt | 1542077 | 8 | |
| 10 | Nut | 1542078 | 8 | |
| 11 | Big-end bearing kit | 270111 | 4 | Std D, SN-2203116853 |
| 11 | Big-end bearing kit | 270112 | 4 | Over size 0,25 mm |
| 11 | Big-end bearing kit | 270113 | 4 | Over size 0,50 mm |
| 11 | Big-end bearing kit | 270114 | 4 | Over size 0,75 mm |
| 11 | Big-end bearing kit | 876511 | 4 | Std D, SN2203116854- |
| 11 | Big-end bearing kit | 876512 | 4 | Over size 0,25 mm |
| 11 | Big-end bearing kit | 876513 | 4 | Over size 0,50 mm |
| 11 | Big-end bearing kit | 876514 | 4 | Over size 0,75 mm |
| 12 | Crankshaft | 860614 | 1 | SN2203116854- |
| 12 | Crankshaft | 1544120 | 1 | SN-2203116853 |
| 13 | Woodruff key | 910118 | 1 | |
| 14 | Main bearing kit | 270467 | 5 | Std D, SN-2203116853 |
| 14 | Main bearing kit | 270468 | 5 | Over size 0,25 mm |
| 14 | Main bearing kit | 270469 | 5 | Over size 0,50 mm |
| 14 | Main bearing kit | 270470 | 5 | Over size 0,75 mm |
| 14 | Main bearing kit | 876515 | 5 | Std D, SN2203116854- |
| 14 | Main bearing kit | 876516 | 5 | Over size 0,25 mm |
| 14 | Main bearing kit | 876517 | 5 | Over size 0,75 mm |
| 14 | Main bearing kit | 876518 | 5 | Over size 0,75 mm |
| 15 | Thrust washer kit | 270464 | 1 | Std D, SN-2203116853 |
| 15 | Thrust washer kit | 270465 | 1 | Over size 0,10 mm |
| 15 | Thrust washer kit | 270466 | 1 | Over size 0,20 mm |
| 15 | Thrust washer | 876523 | 1 | Std D, SN2203116854- |
| 15 | Thrust washer kit | 876524 | 1 | Over size 0,25 mm |
| 15 | Thrust washer kit | 876525 | 1 | Over size 0,50 mm |
| 15 | Thrust washer kit | 876526 | 1 | Over size 0,75 mm |
| 17 | Flywheel | 1542342 | 1 | |
| 18 | Gear ring | 1542241 | 1 | |
| 19 | Guide sleeve | 415311 | 3 | |
| 20 | Bolt plate | 1542093 | 1 | |
| 21 | Screw | 1544147 | 8 | |
| 22 | Gear | 1542305 | 1 | |
| 23 | Hub | 1542196 | 1 | |
| 24 | Washer | 420124 | 1 | |
| 25 | Hexagon screw | 1542149 | 1 | |
| 26 | Vibration damper | 838725 | 1 | |
| 27 | Hub | 1542386 | 1 | |
| 28 | Flange screw | 965180 | 6 |
| Item | Part Name | Part No. |
| 9 | Connecting rod bolt 1542077 | 1542077 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Crankshaft and Related Parts Crankshaft and Related Parts: A Repair Kit |
