Connection pipe 21308893

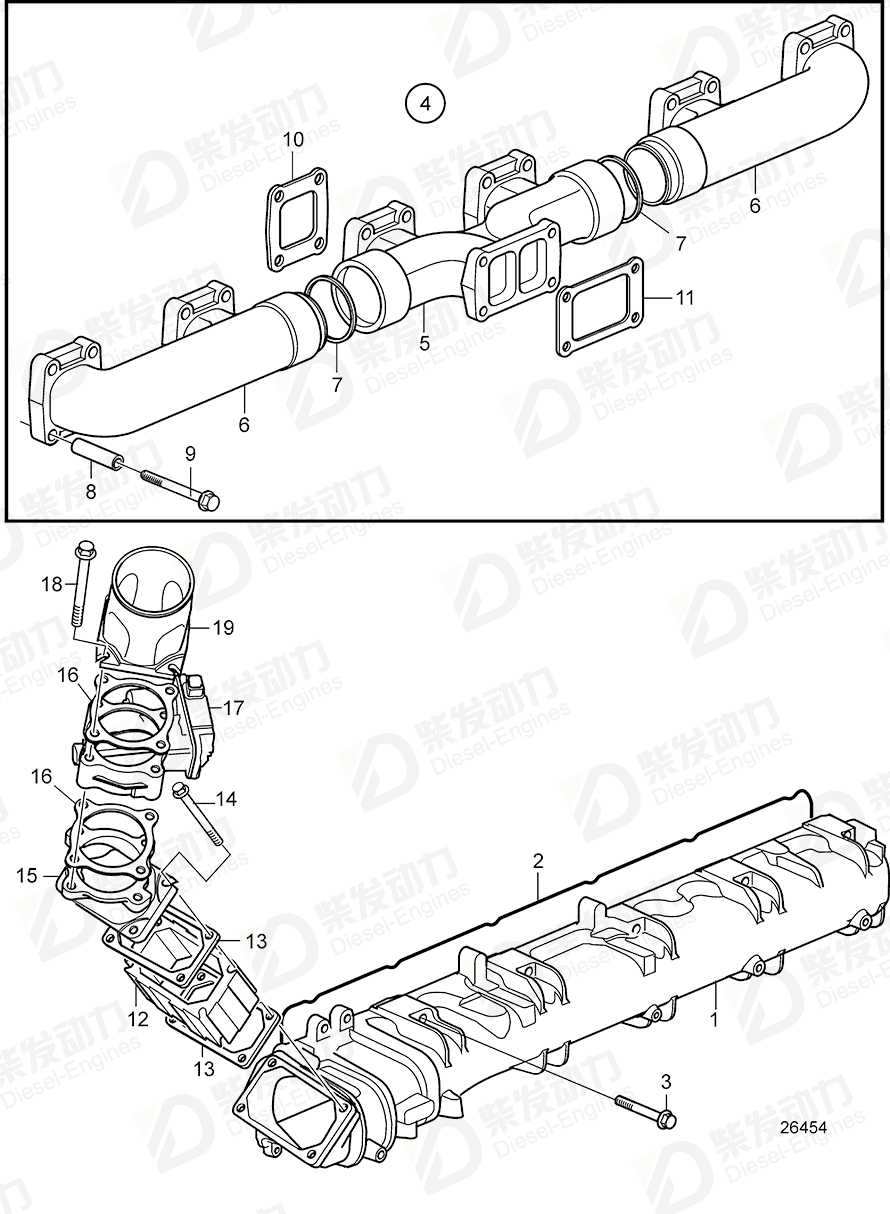

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 20970998 | 1 | SN 2016010025- |
| 2 | Seal | 20563945 | 1 | |
| 3 | Flange screw | 984741 | 12 | L=70mm |
| 4 | Exhaust manifold | 11158142 | 1 | SN-2016010024 |
| 4 | Exhaust manifold | 11447006 | 1 | |
| 6 | Exhaust manifold | 11158142 | 2 | SN-2016010024 |
| 7 | Sealing ring | 11158143 | 2 | For 11158142 |
| 8 | Spacer sleeve | 1546517 | 24 | |
| 9 | Flange screw | 984760 | 24 | |
| 10 | Gasket | 21352841 | 6 | (8131215) |
| 11 | Plane gasket | 20784537 | 1 | |
| 12 | Spacer | 1676806 | 1 | |
| 13 | Plane gasket | 3979639 | 2 | |
| 14 | Flange screw | 984744 | 4 | |
| 15 | Charge air pipe | 21308891 | 1 | |
| 16 | Gasket | 21313833 | 2 | |
| 17 | Throttle | 21286060 | 1 | |
| 18 | Flange screw | 984741 | 4 | L=70mm |
| 19 | Connection pipe | 21308893 | 1 |
| Item | Part Name | Part No. |
| 19 | Connection pipe 21308893 | 21308893 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Inlet Manifold Intake and Exhaust Manifold |
