Control rod 837005

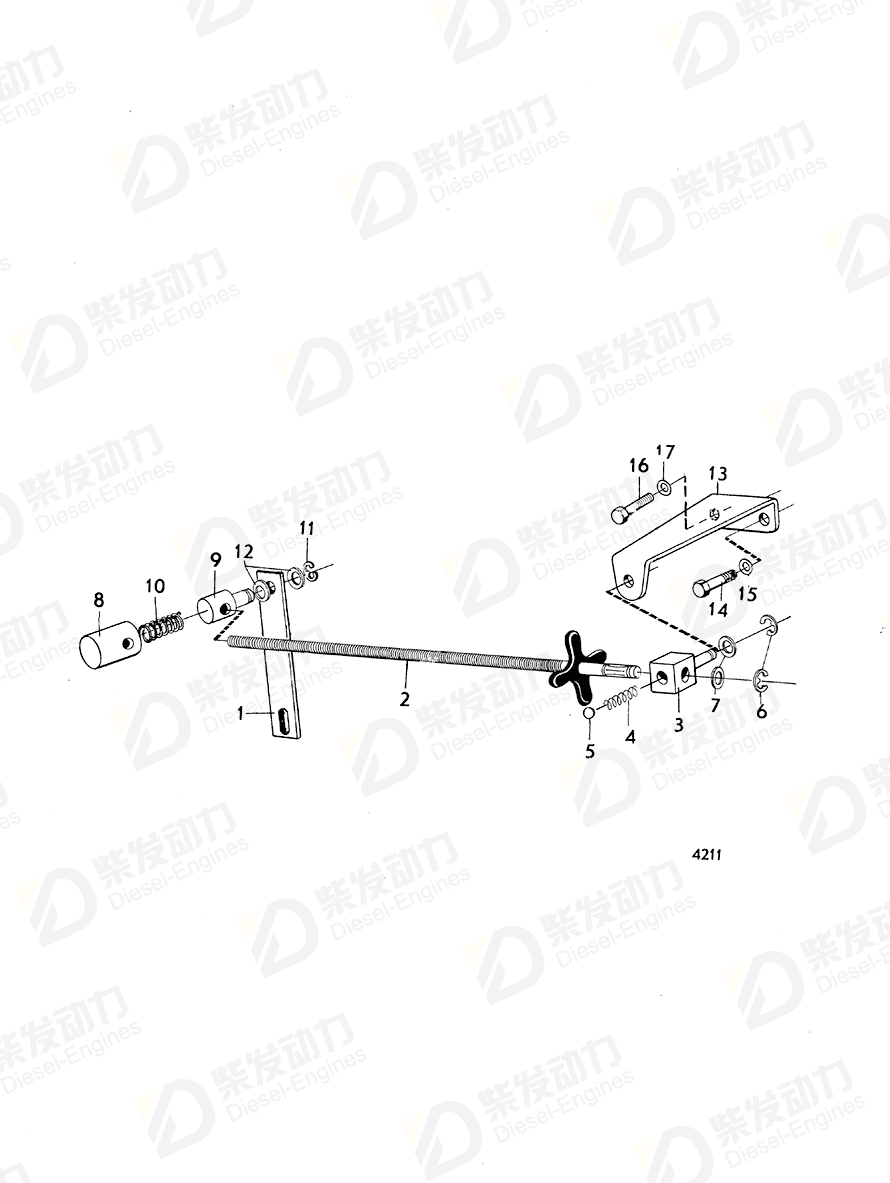

| No. | Part Name | Part Number | Qty | Description |
| 1 | Arm | 239039 | 1 | |
| 2 | Control rod | 837005 | 1 | |
| 3 | Cube | 899543 | 1 | |
| 4 | Compression spring | 88333 | 1 | |
| 5 | Ball | 26694 | 1 | |
| 6 | E-circlip | 951670 | 3 | |
| 7 | Spring washer | 941907 | 4 | |
| 8 | Control sleeve | 822488 | 1 | |
| 9 | Piston | 822487 | 1 | |
| 10 | Compression spring | 836791 | 1 | |
| 11 | E-circlip | 951668 | 1 | |
| 12 | Spring washer | 191150 | 2 | |
| 13 | Stay | 822808 | 1 | |
| 14 | Hexagon screw | 955524 | 1 | Used on crankshaft 829999. |
| 15 | Spring washer | 941907 | 1 | |
| 16 | Hexagon screw | 955534 | 1 | |
| 17 | Spring washer | 942336 | 1 |
| Item | Part Name | Part No. |
| 2 | Control rod 837005 | 837005 |
| Details | |
| Engine model | D120A D70B D70CHC, D70CRC, TD70CHC, TD70CRC TD100ARC TD120A |
| Application | Controls, MO-XXXXX/3969: A Controls, MOXXXXX/3970: A MANUAL SPEED CONTROL Manual Speed Control Earlier Prod Manual Speed Control Earlier Prod: A Manual Speed Control Earlier Prod: B |
| Specification | |
| Descriptions | Classed engine,spec.867117., Alt Spec. 867055, 867132., Early type |
