Coolant pipe 3827700

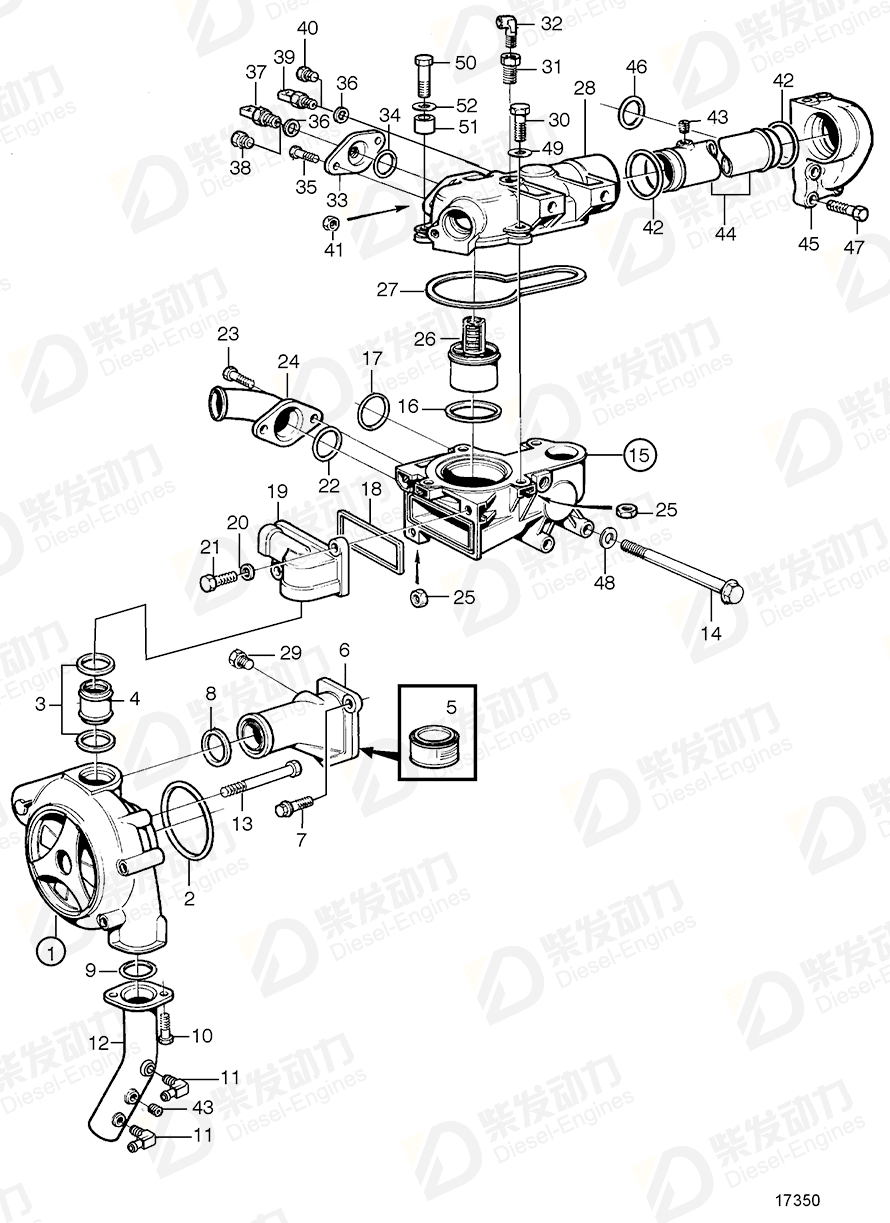

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3803839 | 1 | |
| 1 | Coolant pump | 20575653 | 1 | |
| 2 | O-ring | 967344 | 1 | |
| 3 | Sealing ring | 469982 | 2 | |
| 4 | Tube | 471634 | 1 | |
| 5 | Sealant | 1161231 | 1 | 304ml |
| 5 | Sealant | 1161277 | 1 | 20g |
| 6 | Extension part | 848131 | 1 | |
| 7 | Flange screw | 946472 | 2 | |
| 8 | Sealing ring | 471629 | 1 | |
| 9 | O-ring | 925092 | 1 | |
| 10 | Flange screw | 945444 | 2 | |
| 11 | Elbow nipple | 942649 | 1 | |
| 12 | Coolant pipe | 3827700 | 1 | |
| 13 | Flange screw | 965190 | 3 | |
| 13 | Hexagon screw | 970960 | 1 | SN-2160018480 |
| 14 | Flange screw | 965189 | 3 | |
| 15 | Thermostat housing | 876628 | 1 | Anodic treatment., (471780) |
| 16 | Sealing ring | 1544710 | 1 | |
| 17 | O-ring | 477059 | 1 | |
| 18 | Sealing ring | 471816 | 1 | |
| 19 | Housing | 471822 | 1 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Flange screw | 945444 | 2 | |
| 22 | O-ring | 925092 | 1 | |
| 23 | Flange screw | 945444 | 2 | |
| 24 | Water pipe | 848381 | 1 | |
| 25 | Hexagon nut | 955782 | 5 | |
| 26 | Thermostat | 3839110 | 1 | 75°C |
| 27 | Sealing ring | 471788 | 1 | |
| 28 | Cover | 420968 | 1 | |
| 29 | Plug | 479976 | 1 | (946559) |
| 30 | Flange screw | 946470 | 3 | |
| 31 | Nipple | 1136966 | 1 | |
| 32 | Elbow nipple | 16218 | 1 | |
| 33 | Flange | 3830530 | 1 | |
| 34 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 35 | Flange screw | 945444 | 2 | |
| 36 | Gasket | 11998 | 1 | |
| 38 | Plug | 960632 | 1 | |
| 40 | Plug | 960632 | 1 | |
| 41 | Hexagon nut | 955782 | 2 | |
| 42 | Sealing ring | 469982 | 2 | |
| 43 | Plug | 479977 | 1 | |
| 44 | Tube | 848656 | 1 | |
| 45 | Connecting pipe | 465911 | 1 | |
| 46 | O-ring | 477059 | 1 | |
| 47 | Flange screw | 965186 | 2 | |
| 47 | Flange screw | 965187 | 1 | |
| 48 | Spring washer | 941908 | 3 | |
| 49 | Spring washer | 941907 | 3 | |
| 50 | Flange screw | 973924 | 1 | |
| 51 | Spacer sleeve | 843075 | 1 | |
| 52 | Washer | 191172 | 1 | Spec.867054, 867221. |
| Item | Part Name | Part No. |
| 12 | Coolant pipe 3827700 | 3827700 |
| Details | |
| Engine model | TAD740GE, TAD741GE TD640VE TWD740GE TWD740VE |
| Application | Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B |
