Coolant pipe 3828489

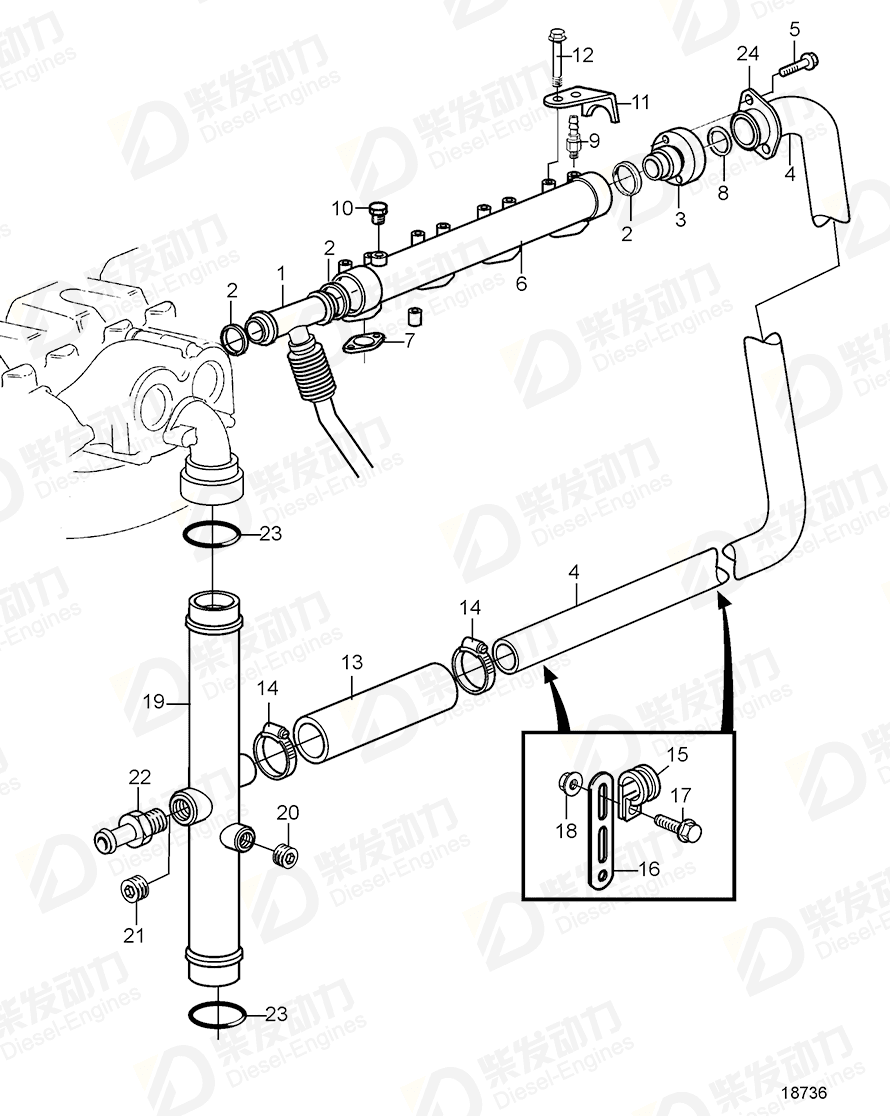

| No. | Part Name | Part Number | Qty | Description |
| 2 | Sealing ring | 1543572 | 3 | |
| 3 | Flange connection | 849973 | 1 | |
| 4 | Coolant pipe | 3828489 | 1 | |
| 5 | Flange screw | 946934 | 2 | |
| 6 | Coolant pipe | 3826462 | 1 | |
| 7 | Gasket | 3837854 | 4 | |
| 8 | Gasket | 848163 | 1 | |
| 9 | Shut-off cock | 966871 | 1 | |
| 10 | Plug | 479979 | 1 | |
| 11 | Bracket | 3826733 | 1 | (849974) |
| 12 | Flange screw | 965184 | 2 | |
| 13 | Rubber hose | 949315 | 1 | L=140mm |
| 14 | Hose clamp | 961669 | 2 | |
| 15 | Clamp | 949850 | 2 | |
| 16 | Bracket | 965541 | 2 | |
| 17 | Flange screw | 946440 | 2 | |
| 18 | Flange nut | 945408 | 2 | |
| 19 | Return pipe | 3828751 | 1 | |
| 20 | Plug | 479977 | 1 | |
| 21 | Plug | 479977 | 1 | |
| 24 | Flange | 848164 | 1 |
| Item | Part Name | Part No. |
| 4 | Coolant pipe 3828489 | 3828489 |
| Details | |
| Engine model | TAD1631G, TAD1631GE TD164KAE |
| Application | Collecting Pipe External Cooling System, Expansion Tank |
