Coolant pipe 845885

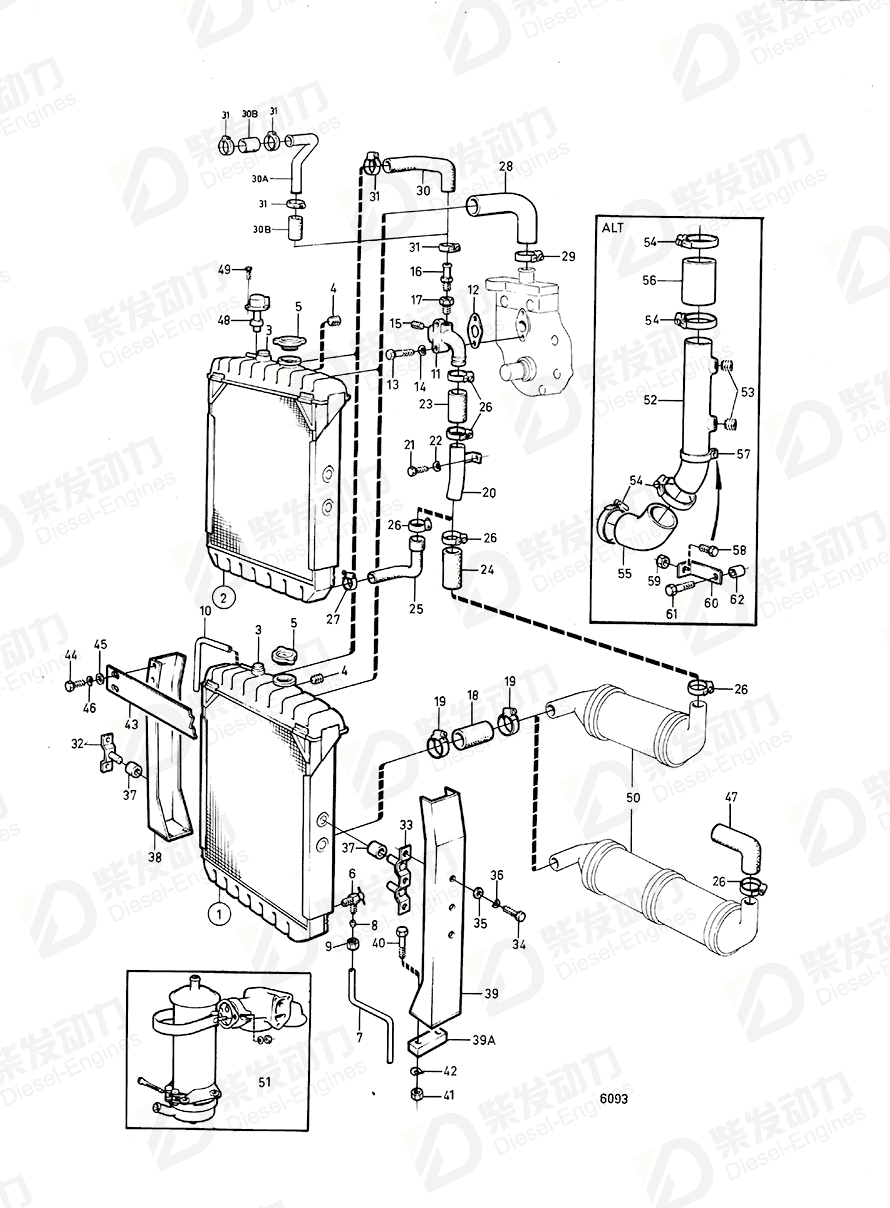

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 821160 | 1 | Åkerman., MO-XXXXX/98707 |
| 2 | Radiator | 822721 | 1 | MOXXXXX/98708-. |
| 2 | Radiator | 837828 | 1 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 3 | Safety valve | 342099 | 1 | |
| 4 | Plug | 952075 | 1 | |
| 5 | Radiator cap | 344753 | 1 | |
| 6 | Drain cock | 820436 | 1 | |
| 7 | Tube | 954305 | 1 | L=250mm |
| 8 | Fitting | 954365 | 1 | |
| 9 | Fitting nut | 954357 | 1 | |
| 10 | Hose | 192618 | 1 | L=1400mm |
| 11 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 12 | Gasket | 423138 | 1 | |
| 13 | Hexagon screw | 955537 | 1 | |
| 13 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 14 | Spring washer | 942336 | 2 | |
| 15 | Plug | 952077 | 2 | |
| 16 | Nipple | 941845 | 1 | |
| 17 | Reduction nipple | 180265 | 1 | MO-XXXXX |
| 18 | Radiator hose | 821684 | 1 | MO-XXXXX/98707. |
| 19 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 20 | Coolant pipe | 820639 | 1 | |
| 20 | Coolant pipe | 845885 | 1 | Replaced by 1pc 843087 and 8PCS 955365., Moxxxxx |
| 21 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 22 | Spring washer | 942336 | 1 | |
| 23 | Rubber hose | 943372 | 1 | L=90mm |
| 24 | Rubber hose | 943372 | 1 | L=90mm |
| 25 | Radiator hose | 821070 | 1 | |
| 26 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 27 | Hose clamp | 943481 | 1 | (951798) |
| 28 | Radiator hose | 845872 | 1 | Moxxxxx (821069) |
| 29 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 30 | Radiator hose | 342309 | 1 | MO-XXXXX |
| 31 | Hose clamp | 994560 | 2 | |
| 32 | Attaching plate | 341907 | 2 | Right |
| 33 | Attaching plate | 341909 | 1 | Left |
| 34 | Hexagon screw | 940135 | 7 | |
| 35 | Washer | 899990 | 7 | |
| 36 | Spring washer | 941907 | 7 | |
| 37 | Rubber cushion | 823381 | 4 | |
| 38 | Pillar | 820778 | 1 | Right |
| 39 | Pillar | 820780 | 1 | Left |
| 40 | Hexagon screw | 940115 | 8 | |
| 40 | Hexagon screw | 955537 | 8 | |
| 41 | Hexagon nut | 955827 | 8 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 42 | Spring washer | 942336 | 8 | |
| 43 | Cross stay | 821052 | 1 | |
| 44 | Hexagon screw | 955523 | 4 | |
| 45 | Washer | 955894 | 4 | |
| 46 | Spring washer | 941907 | 4 | |
| 48 | Float breaker | 837797 | 1 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 49 | Cross recessed screw | 956061 | 4 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 52 | Coolant pipe | 844984 | 1 | |
| 53 | Plug | 952077 | 2 | |
| 54 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 55 | Hose | 836106 | 1 | |
| 56 | Rubber hose | 943372 | 1 | L=90mm |
| 57 | Clamp | 945734 | 1 | |
| 58 | Hexagon screw | 955274 | 1 | |
| 58 | Hexagon screw | 955276 | 1 | MO-201373/XXXXX |
| 59 | Lock nut | 963105 | 1 | |
| 60 | Attaching plate | 845020 | 1 | |
| 61 | Hexagon screw | 955542 | 1 | |
| 62 | Spacer sleeve | 827861 | 1 | MO-201373/XXXXX |
| 62 | Washer | 960139 | 1 | MO201374/XXXXX- |
| 30A | Coolant pipe | 845874 | 1 | Moxxxxx |
| 30B | Rubber hose | 944386 | 2 | |
| 39A | Spacer plate | 844505 | 4 | Alt MOXXXXX/33095- |
| Item | Part Name | Part No. |
| 20 | Coolant pipe 845885 | 845885 |
| Details | |
| Engine model | D100B TD100A |
| Application | Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components, Std: B Radiator and Installation Components, Std: C |
| Specification | |
| Descriptions | Replaced by 1pc 843087 and 8PCS 955365., Moxxxxx |
