Coolant pipe 848135

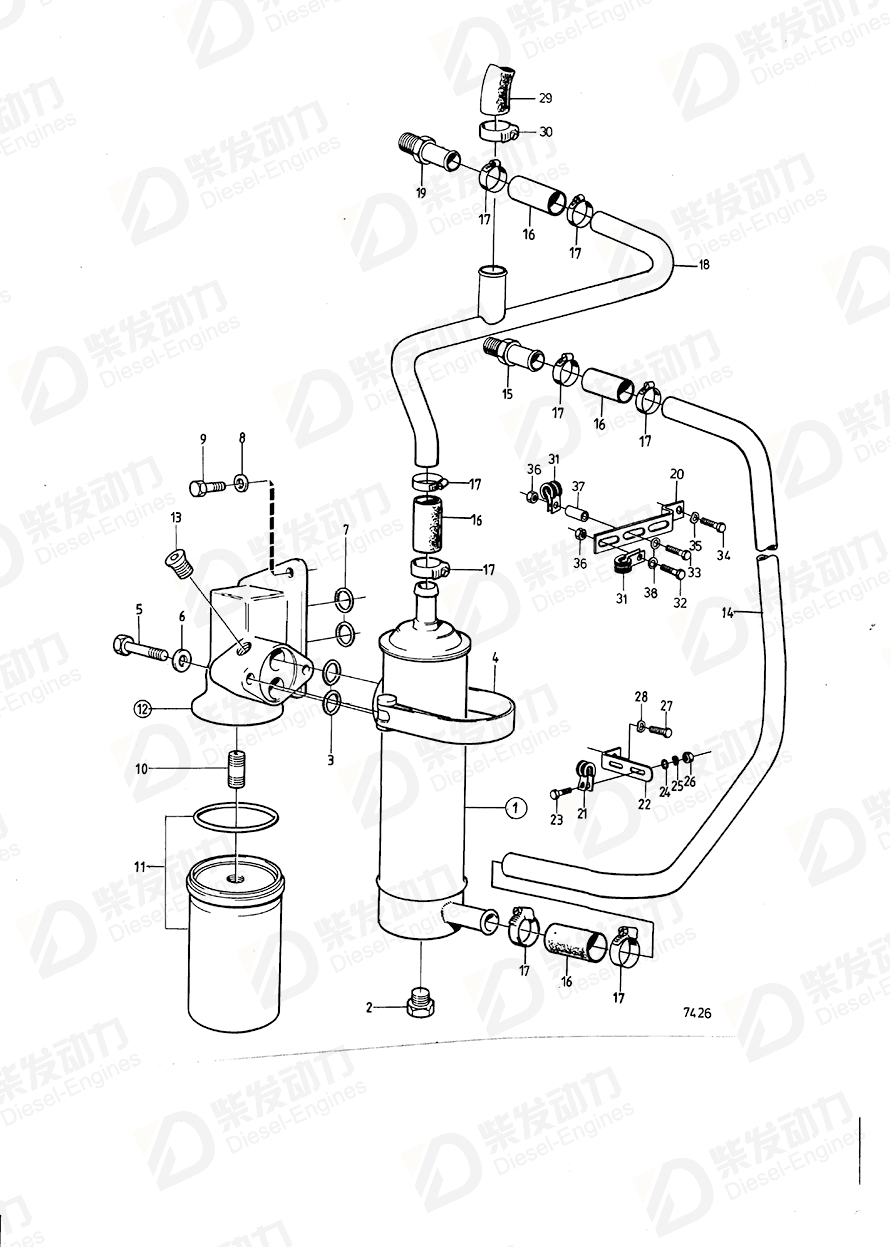

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 420365 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 2 | Plug | 180759 | 1 | |
| 3 | Sealing ring | 469483 | 2 | (422581) |
| 4 | Tensioning band | 422605 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603- |
| 5 | Hexagon screw | 955527 | 1 | |
| 5 | Hexagon screw | 955530 | 1 | |
| 6 | Washer | 955894 | 2 | |
| 7 | O-ring | 949656 | 2 | |
| 8 | Spring washer | 942336 | 3 | |
| 9 | Hexagon screw | 940115 | 3 | |
| 10 | Nipple | 423067 | 1 | |
| 11 | Oil filter | 4785974 | 1 | |
| 12 | Oil filter housing | 466339 | 1 | D70B spec. 867276, 867277, 867278, 867279, 867280, 867283, 867300, 867301. TD70B spec. 867281, 867282., See group 3 |
| 13 | Plug | 952075 | 1 | |
| 14 | Coolant pipe | 848135 | 1 | (843885) |
| 15 | Hose nipple | 942691 | 1 | |
| 16 | Rubber hose | 943369 | 1 | L=165 mm |
| 17 | Hose clamp | 943474 | 8 | |
| 18 | Coolant pipe | 847128 | 1 | |
| 19 | Hose nipple | 961659 | 1 | |
| 20 | Bracket | 845999 | 1 | |
| 21 | Clamp | 952632 | 1 | Late type |
| 22 | Bracket | 965556 | 1 | |
| 23 | Cross recessed screw | 950034 | 1 | Replaced by 1pc alternator 841989 and 1pc PULLby 829312. |
| 24 | Washer | 960139 | 1 | MO201374/XXXXX- |
| 25 | Spring washer | 941906 | 1 | |
| 26 | Hexagon nut | 940145 | 1 | MOXXXXX/1496- |
| 27 | Hexagon screw | 940133 | 1 | |
| 28 | Spring washer | 942336 | 1 | |
| 29 | Hose | 952969 | 1 | (943368) L=600mm |
| 30 | Hose clamp | 943473 | 1 | |
| 31 | Clamp | 947219 | 2 | |
| 32 | Hexagon screw | 955513 | 1 | |
| 33 | Hexagon screw | 940117 | 1 | Late type |
| 34 | Hexagon screw | 955515 | 1 | L = 38 MM |
| 35 | Spring washer | 941906 | 1 | |
| 36 | Hexagon nut | 955825 | 2 | Late type |
| 37 | Spacer sleeve | 807250 | 1 | L=16mm (826652) |
| 38 | Washer | 955893 | 2 |
| Item | Part Name | Part No. |
| 14 | Coolant pipe 848135 | 848135 |
| Details | |
| Engine model | TD60A TD60B TD60D TD60D-83 TID60D TID60DG |
| Application | OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: A OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: B OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: C OIL COOLER-SIDE MOUNTED AND INSTALLATION COMPONENTS Oil Cooler-side Mounted and Installation Components: A Oil Cooler-side Mounted and Installation Components: B |
| Specification | |
| Descriptions | (843885) |
