Coolant pipe 848143

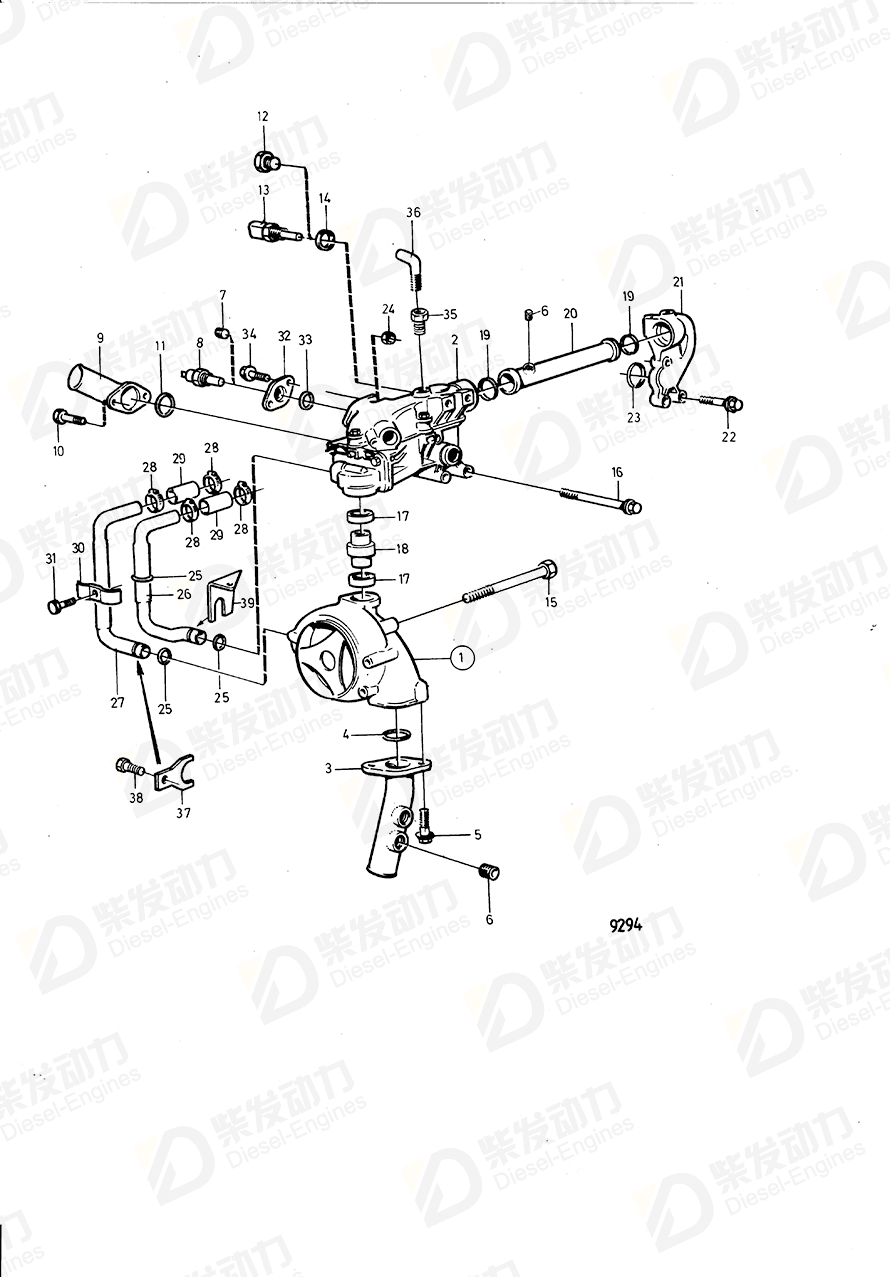

| No. | Part Name | Part Number | Qty | Description |
| 2 | Thermostat housing | 876628 | 1 | Anodic treatment., (471780) |
| 3 | Coolant pipe | 848143 | 1 | |
| 4 | O-ring | 925092 | 1 | |
| 5 | Flange screw | 945444 | 2 | |
| 6 | Plug | 952077 | 2 | |
| 7 | Plug | 952077 | 1 | |
| 7 | Plug | 960632 | 1 | |
| 9 | Water pipe | 848381 | 1 | |
| 10 | Flange screw | 945444 | 2 | |
| 11 | O-ring | 925092 | 1 | |
| 12 | Plug | 960632 | 1 | |
| 14 | Gasket | 947624 | 1 | |
| 15 | Flange screw | 965190 | 4 | |
| 16 | Flange screw | 965189 | 3 | |
| 17 | Sealing ring | 471635 | 2 | |
| 18 | Tube | 471634 | 1 | |
| 19 | Sealing ring | 471635 | 2 | |
| 20 | Tube | 848656 | 1 | |
| 21 | Connecting pipe | 465911 | 1 | |
| 22 | Flange screw | 965220 | 3 | |
| 23 | O-ring | 477059 | 1 | |
| 24 | Hexagon nut | 955782 | 2 | |
| 25 | Rubber moulding | 471626 | 6 | |
| 26 | Coolant pipe | 847853 | 1 | |
| 27 | Coolant pipe | 847852 | 1 | |
| 28 | Hose clamp | 943473 | 4 | |
| 29 | Hose | 952969 | 2 | (943368) L=600mm |
| 30 | Attaching clamp | 849059 | 1 | |
| 31 | Flange screw | 965194 | 1 | |
| 32 | Flange | 471705 | 1 | |
| 32 | Flange | 862618 | 1 | |
| 33 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 34 | Flange screw | 946173 | 2 | |
| 35 | Nipple | 862109 | 1 | |
| 36 | Elbow nipple | 479953 | 1 | |
| 37 | Brace | 849110 | 1 | |
| 38 | Flange screw | 965175 | 1 | |
| 39 | Bracket | 849397 | 1 |
| Item | Part Name | Part No. |
| 3 | Coolant pipe 848143 | 848143 |
| Details | |
| Engine model | TAD730G TAD730P TD610G, TWD610G TD610M TD610V TD61A, TD61AW TD61ACE TD61AG TD61AP TD630ME TD630VE TD710G TD71A, TD71AW TD71A, TD730VE, TAD730V TD71ACE TD71AG TD71AP TD730ME TID61AG TID71A, TWD710V, TWD731VE TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD730ME TWD731ME |
| Application | Thermostat and Water Pump with Installation Components Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C |
| Specification | |
| Descriptions | Std |
